Diagnostic trouble code (DTC) information

Condition

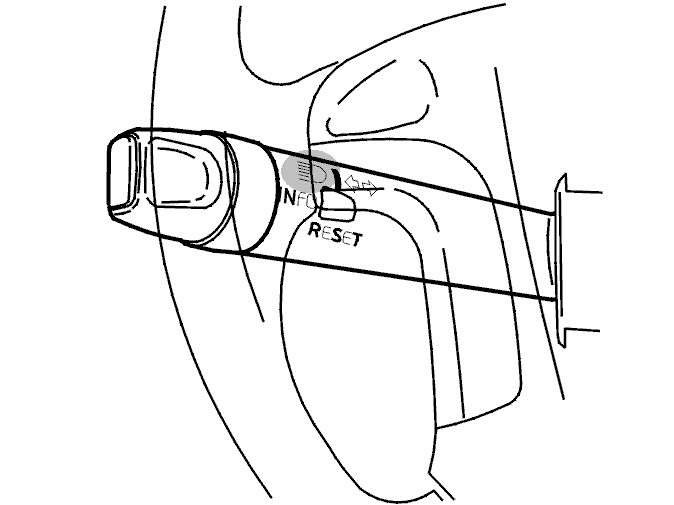

Fig 1: Identifying Control Stalk

Courtesy of VOLVO CARS OF NORTH AMERICA.

The DTC is stored if the control module registers that the headlamp flash has been activated for more than 60 seconds. While the control module is active it continuously checks the headlamp flash.

Substitute Value

Nothing

Possible Source

• Headlamp flash is activated for more than 60 seconds.

Fault symptom[s]

• High beam lit constantly
