Transmission Control Module (TCM) Software (SW) (US16761.1.6 EN-GB)

WARNING: This page is about the S80 T-6, which is a different variant/trim than selected.

Publication date: 2010-06-30
Reference number: US16761.1.6 EN-GB

TRANSMISSION CONTROL MODULE (TCM) SOFTWARE (SW)

TECHNICAL SERVICE BULLETIN

Reference Number(s): TJ 16761, Date of Issue: June 30, 2010

VOLVO:	1999-2000 C70, S70, V70XC; 1999-2002 C70; 1999-2006 S80; 2001-2007 V70; 2008-2008 S60; 2003-2007 XC70; 2003-2010 XC90; 2004-2006 S40; 2005-2006 V50
GROUP:	4378
DESCRIPTION:	Software
REFERENCE:	VIDA, VSTG, RTJs 17906, 20857, 23193
RELATED REF. NUMBER(S) :	US16761.1.6 en-GB

Superceded Bulletin(s): 16761, Date of Issue: 12-23-2009

VEHICLE TYPE

Type	Model Year	Chassis range	Struc Week Range
184	1999-2006	-	0-0
275	2003-2010	-	0-0
285	2001-2007	-	0-0
295	2001-2007	-	0-0
384	2001-2008	-	0-0
544	2004-2006	-	0-0
545	2005-2006	-	0-0
872	1999-2002	-	0-0
873	1999-2002	-	0-0
874	1999-2000	-	0-0
875	1999-2000	-	0-0
876	1999-2000	-	0-0

CSC

CUSTOMER SYMPTOM CODE

Code	Description
EX	Warning lights and chimes/Automatic transmission indication/no indication
7Y	Automatic transmission/Gear changes take too long to complete/Unsure when/at all times
7Z	Automatic transmission/Shifts occur too early, too late, too often/Unsure when/at all times
MA	Automatic transmission/Shifts rough or jerky/Unsure when/at all times
MD	Automatic transmission/No automatic gearshift
ME	Automatic transmission/Shifts occur too early, too late, too often/When upshifting
MH	Automatic transmission/Kickdown does not work
MO	Automatic transmission/Shifts occur too early, too late, too often/When downshifting
MV	Automatic transmission/Gear changes take too long to complete/When downshifting
NB	Automatic transmission/Gear changes take too long to complete/When upshifting
ND	Automatic transmission/Shifts rough or jerky/When downshifting
NF	Automatic transmission/Shifts rough or jerky/When engaging gear at standstill
NO	Automatic transmission/Shifts occur too early, too late, too often/From Park to Reverse or Drive
NS	Automatic transmission/Shifts rough or jerky/When upshifting
OC	Manual transmission/Gear pops out

DTC

DIAGNOSTIC TROUBLE CODE

Control Module	Code	Fault Type
TCM	P074400	Intermittent
TCM	P073000	Intermittent
TCM	0099	Intermittent
TCM	008D	Intermittent
TCM	0053	Intermittent
TCM	0045	Intermittent
TCM	002F	Intermittent
TCM	0028	Intermittent
ECM	530D	Intermittent
DEM	000B	Intermittent
DEM	000A	Intermittent
DEM	0008	Intermittent
DEM	0006	Intermittent
DEM	0005	Intermittent
DEM	0003	Intermittent
DEM	0001	Intermittent
CEM	1A64	Intermittent

Text

CSC = Customer Symptom Code

DTC = Diagnostic Trouble Code

NOTE: If using a printed copy of this Retailer Technical Journal, first check for the latest online version.

NOTE: THIS DOCUMENT SUPERSEDES THE PREVIOUS VERSION OF RETAILER TECHNICAL JOURNAL 16761 DATED 12-23-2009. New AW TF80SC software has been added for the Winter mode function. PLEASE UPDATE YOUR FILES.

DESCRIPTION

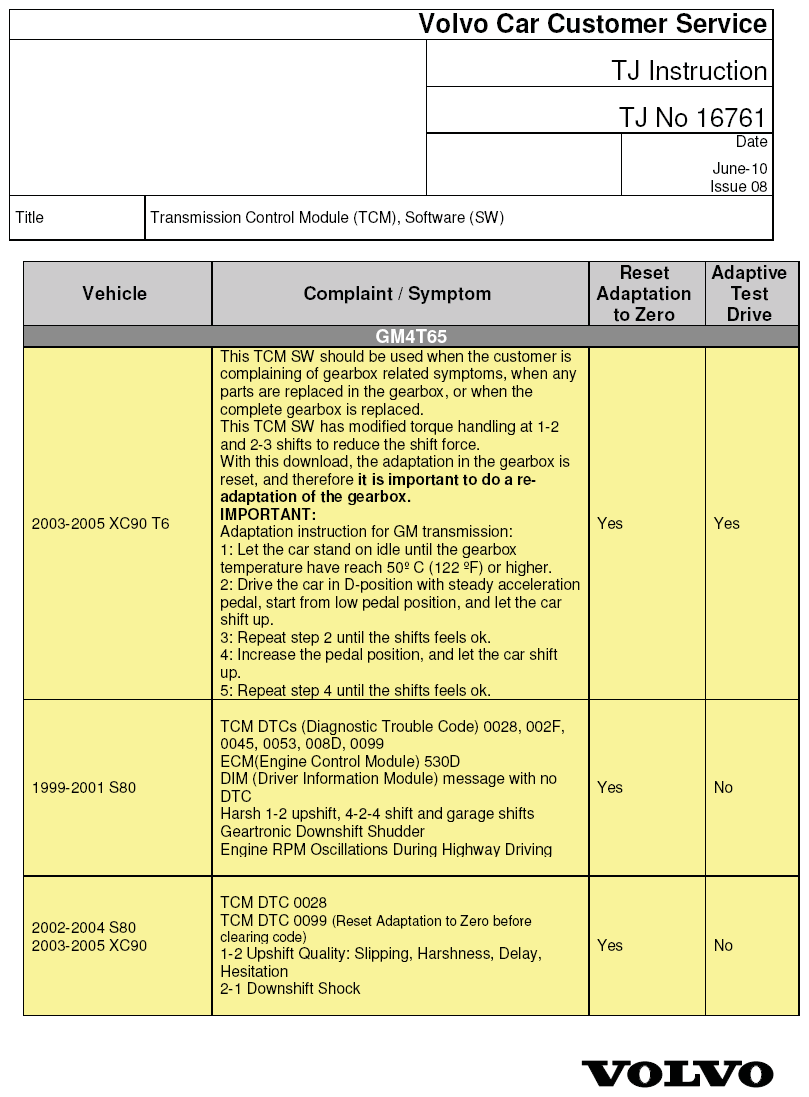

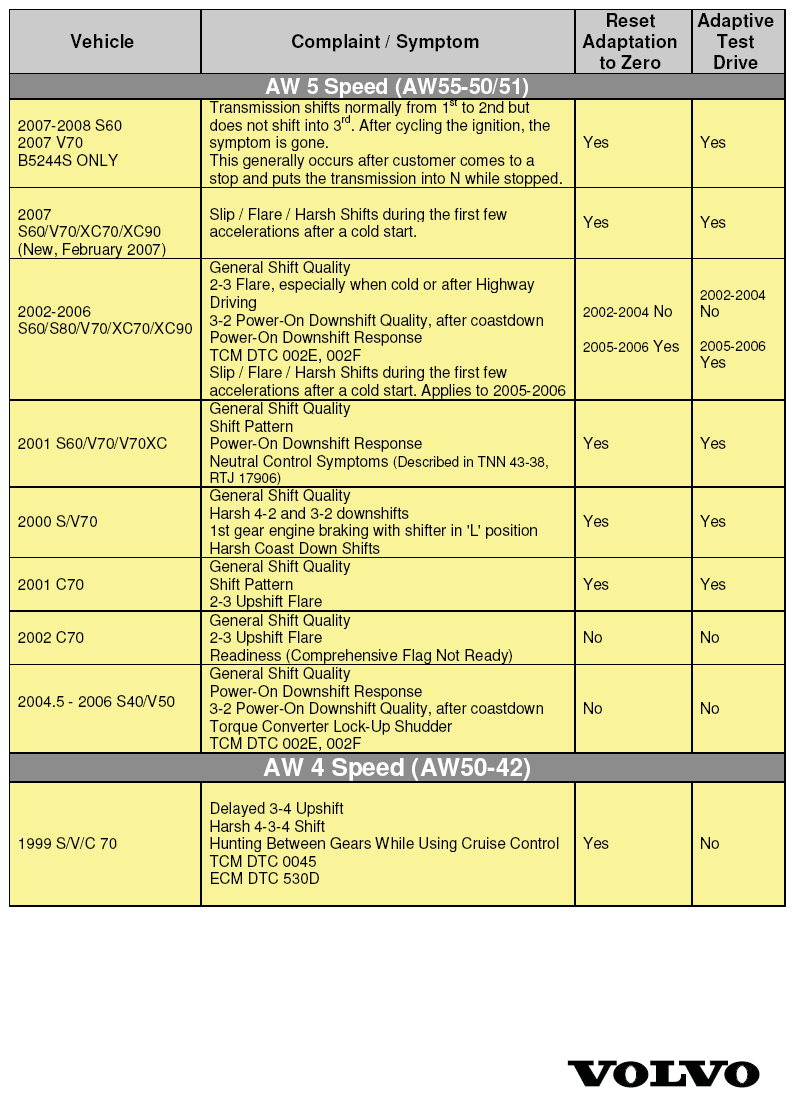

The TCM Upgrades in the attached document are available to correct the complaints/symptoms listed in the attachment.

SERVICE

If the vehicle fits in the model year or chassis range for the symptom in the attachment, download a TCM Upgrade.

VOLVO STANDARD TIMES GUIDE (VSTG) INFO

Operation number 36004-2 - Control module, software download- See VSTG

Claims may be submitted under the new car warranty when there is a documented customer complaint using claim type: 01
Labor times are valid at the time of release and are subject to change.
