Gear Selector Assembly, DTC TCM 0094 (43-0032)

GEAR SELECTOR ASSEMBLY, DTC TCM 0094

TECHNICAL SERVICE BULLETIN

BACKGROUND

Background: This method describes how to move the cable harness that carries the cables for the gear selector module when diagnostic trouble code (DTC) TCM 0094 is stored.

GEAR SELECTOR ASSEMBLY, DTC TCM 0094

Gear selector assembly, DTC TCM 0094

Special tools: 951 2852, 951 2853

Chassis numbers -029667

1. Preparations

   Remove the center console as per VADIS.

2. Circuit board / top panel, replacing

   Remove the circuit board / or top panel as per VADIS.

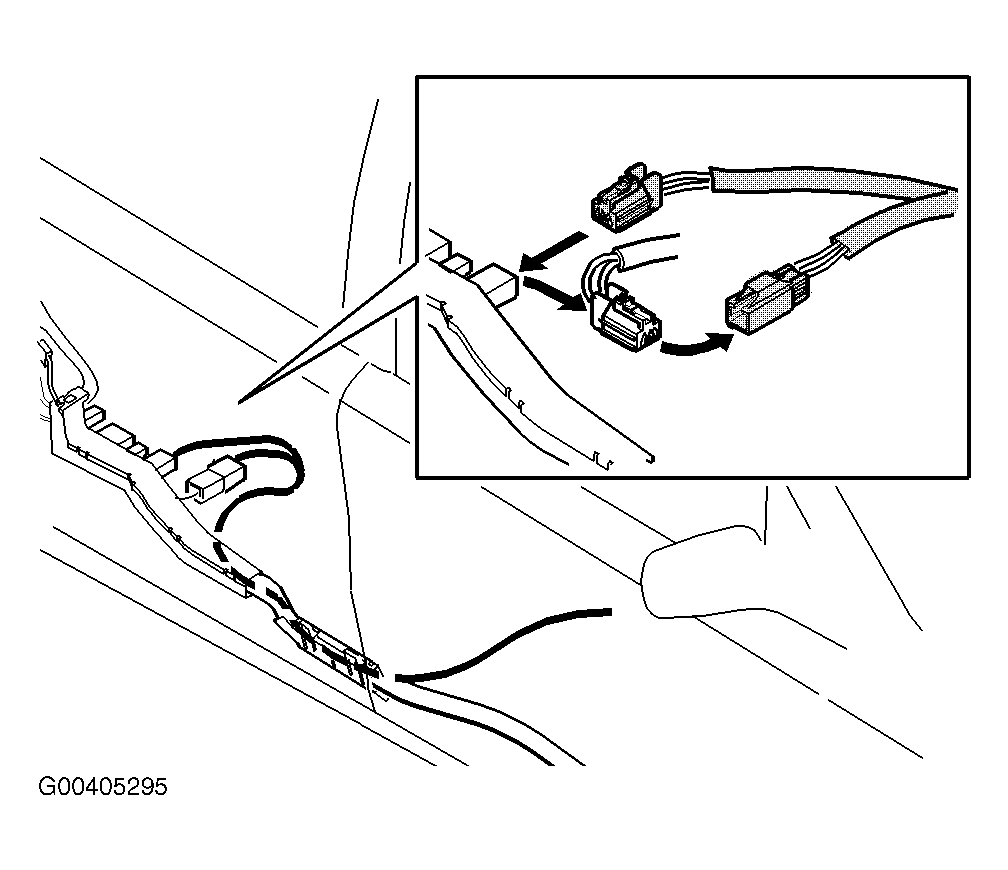

3. Lift the right-hand side of the rear seat.

   Remove the right rear door sill trim panel.

   Push the carpet to aside to expose two connectors.

   Disconnect the front connector.

   Connect the one end of the jumper harness between the disconnected front connectors. The other end of the jumper harness will get connected at the gear shifter (see Fig 1 ).

   Install the wire in the wire duct.

   Then pull the wire along the existing wire harness to the front edge of the front seat support.

   Fig 1: Connecting Jumper Harness To Front Connectors & Gear Shifter

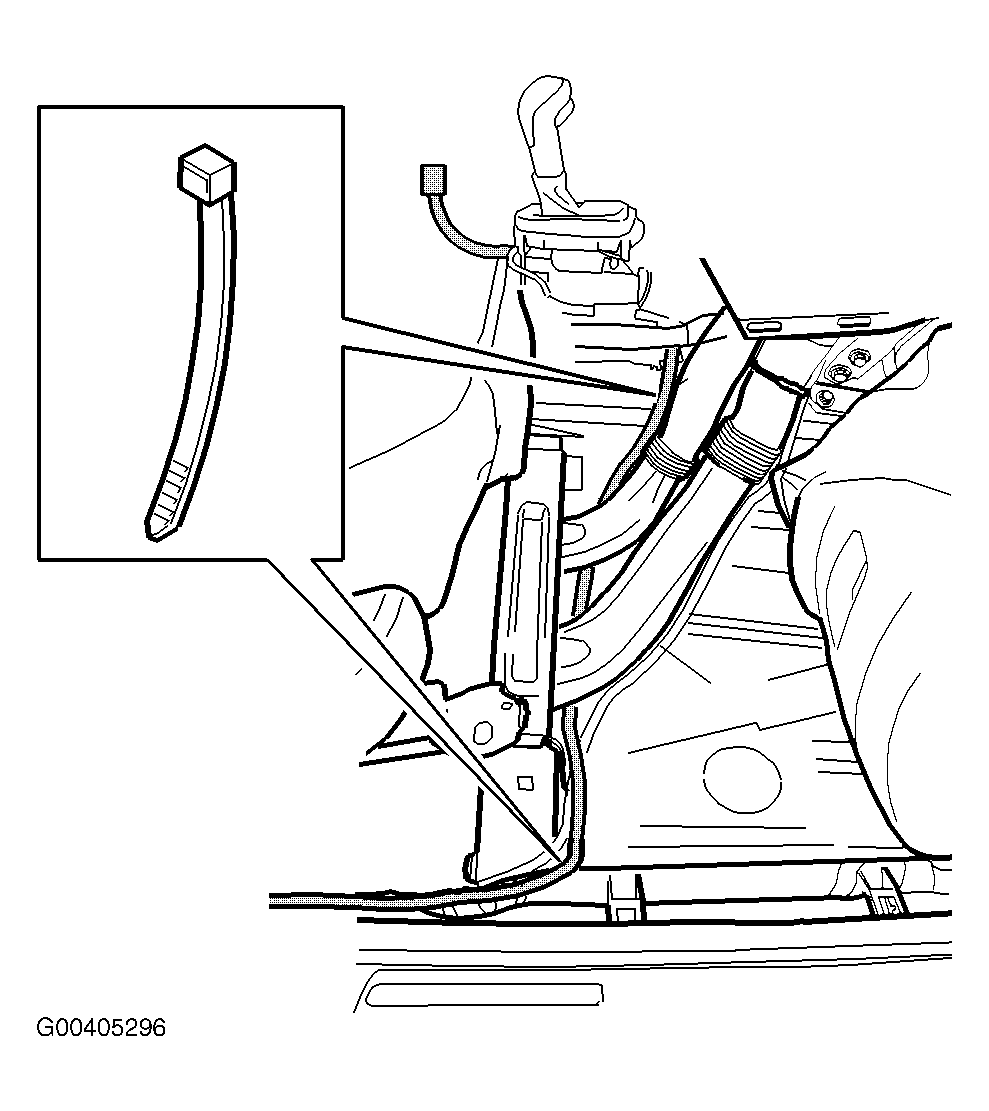

4. Loosen the rear screws for the right hand seat a few turns.

   Remove the front screws for the right-hand seat.

   Secure the wire in the wire duct using a tie strap (see Fig 2 ).

   Position the wire along the seat support, under the air ducts to the center console.

   Fig 2: Securing Wire In Wire Duct w/Tie Strap

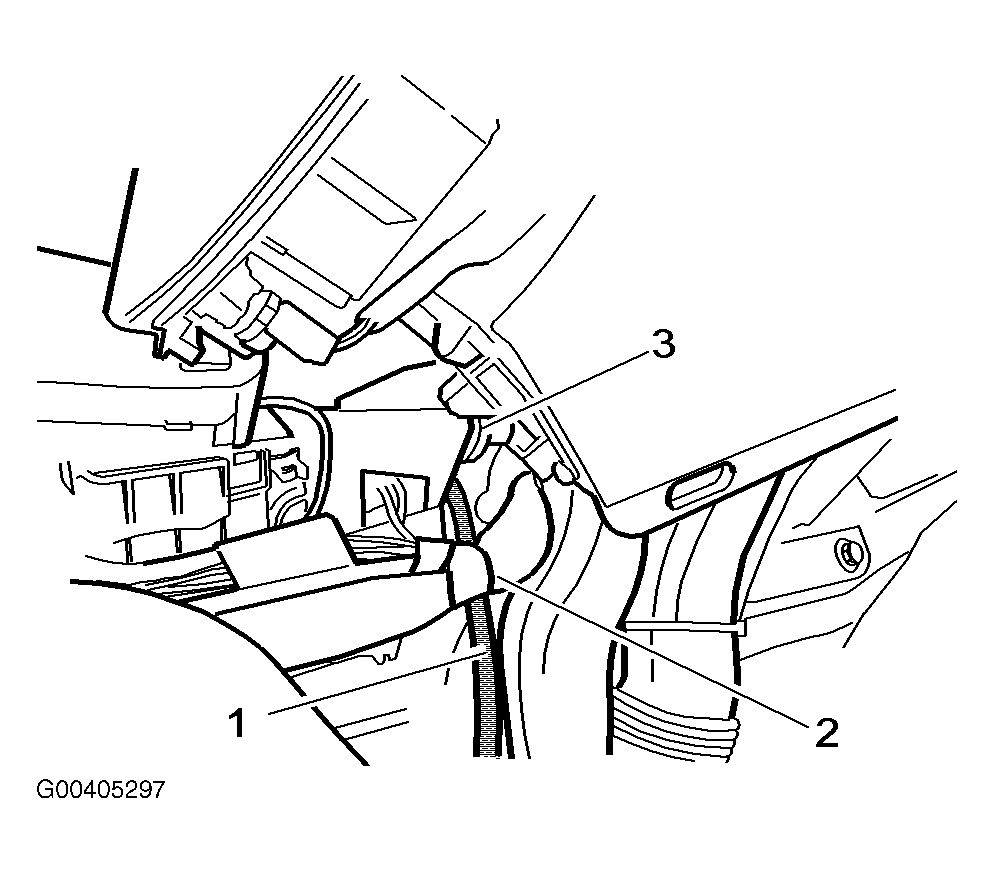

5. Route the cable (1) under the cable duct (2). Continue under the gear selector lever link rod (3) around the gear selector assembly to the left-hand side of the gear selector assembly (see Fig 3 ).
   Fig 3: Routing Cable

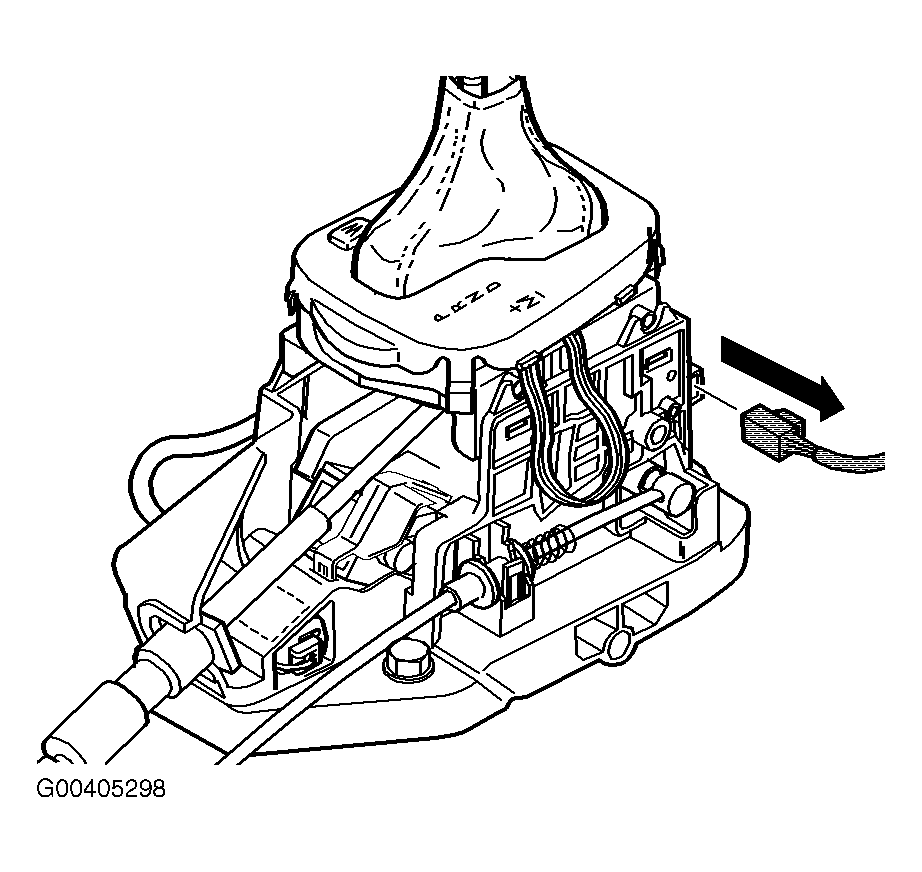

6. Disconnect the connector at the back of the gear selector assembly (see Fig 4 ).
   Fig 4: Disconnecting Connector At Back of Gear Selector Assembly


7. Remove the secondary lock. Use special tool 951 2853 (see Fig 5 ).
   Fig 5: Removing Secondary Lock


8. Remove the violet/white (VO/W) wire from the connector. Use special tool 951 2852 (see Fig 6 ).
   Fig 6: Removing VO/W Wire From Connector



   Installing

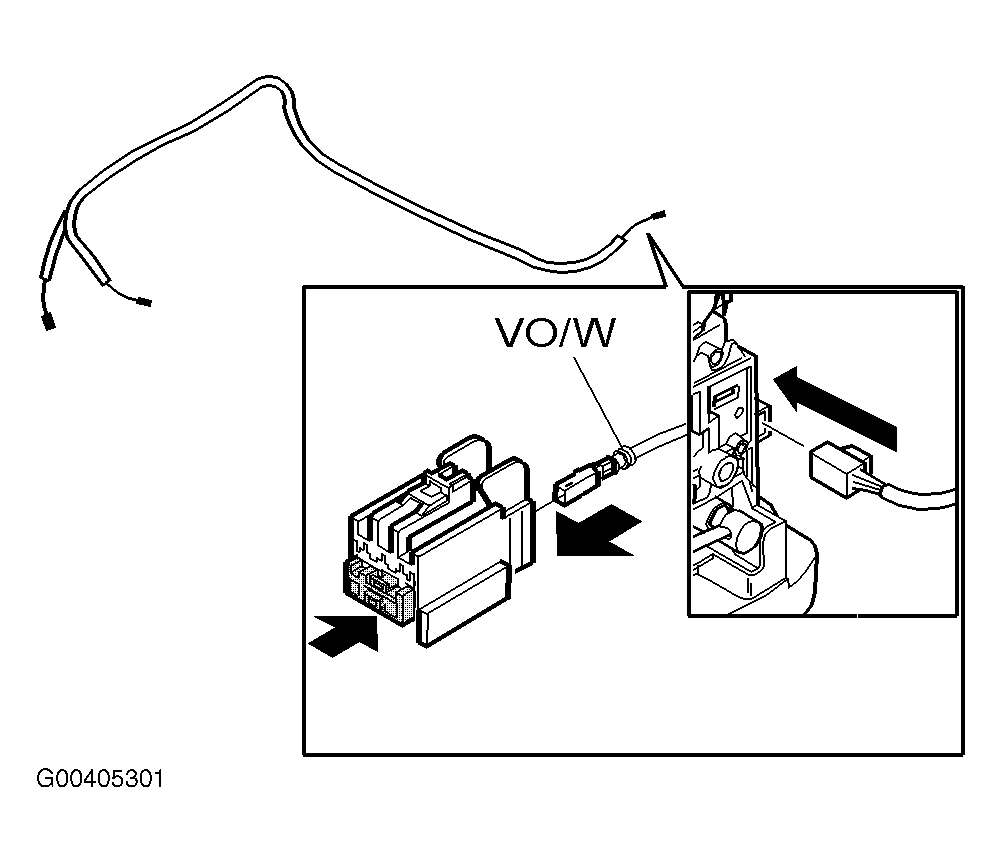

9. New wire, installing

   Install the:

   • violet/white VO/W wire from the jumper harness in the connector behind the gear selector (see Fig 7 )
   • secondary lock.

   Reconnect the connector.

   Fig 7: Installing VO/W Wire From Jumper Harness In Connector


10. Install the:
    • center console as per VADIS
    • carpet
    • seat, tightening the screws
    • sill trim panel
    • rear seat.

    Chassis numbers 029668-147859

11. Preparations

    Remove the:

    • center console as per VADIS
    • driver's side soundproofing panel.
12. Circuit/top panel, replacing (only chassis numbers 064001-100000)

    Replace the circuit board / or top panel as per VADIS.

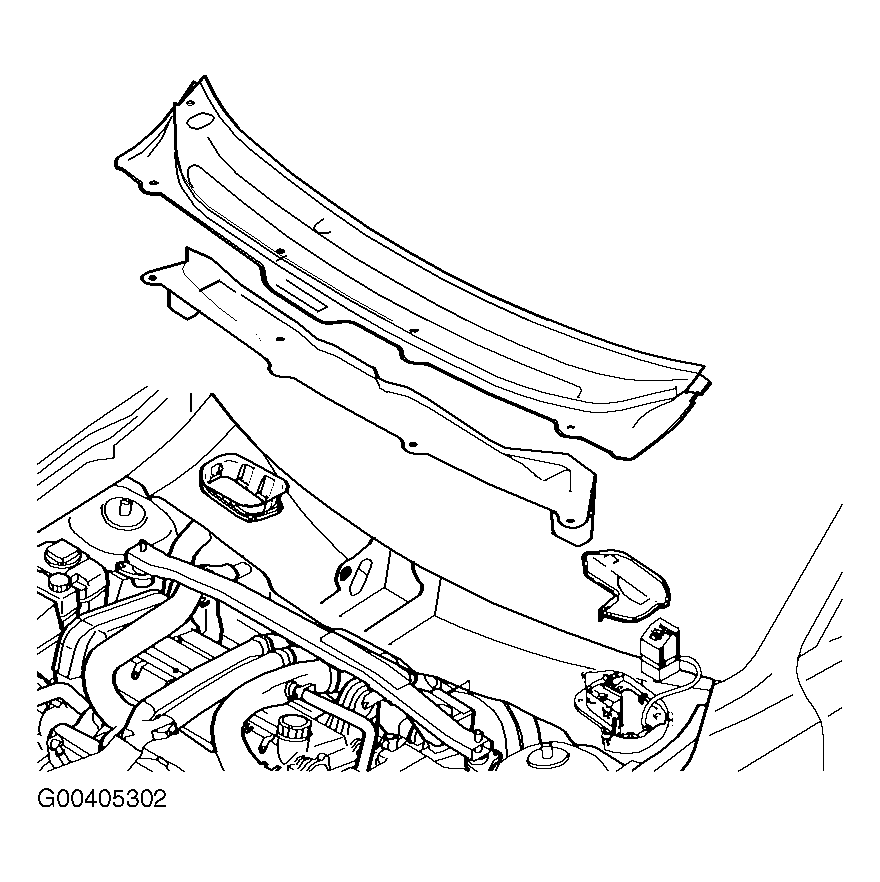

13. Remove the windscreen wiper mechanism as per VADIS (see Fig 8 ).
    Fig 8: Removing Windscreen Wiper Mechanism


14. Remove the central electronic module (CEM) as per VADIS.

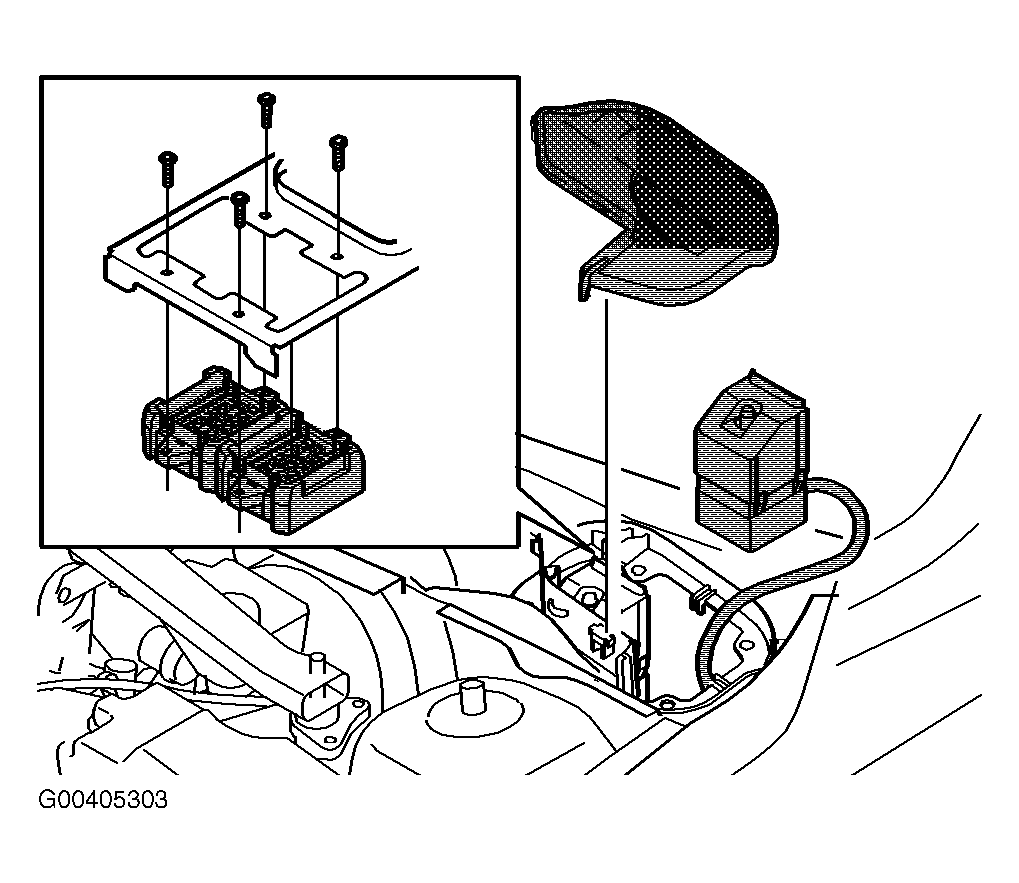

15. Remove the cover for the connectors in the engine compartment / passenger compartment (see Fig 9 )

    Disconnect the connectors by screwing the connectors upwards so that the threads release. Then remove the connectors.

    Remove the four screws.

    Fig 9: Removing Cover, Connectors & Screws

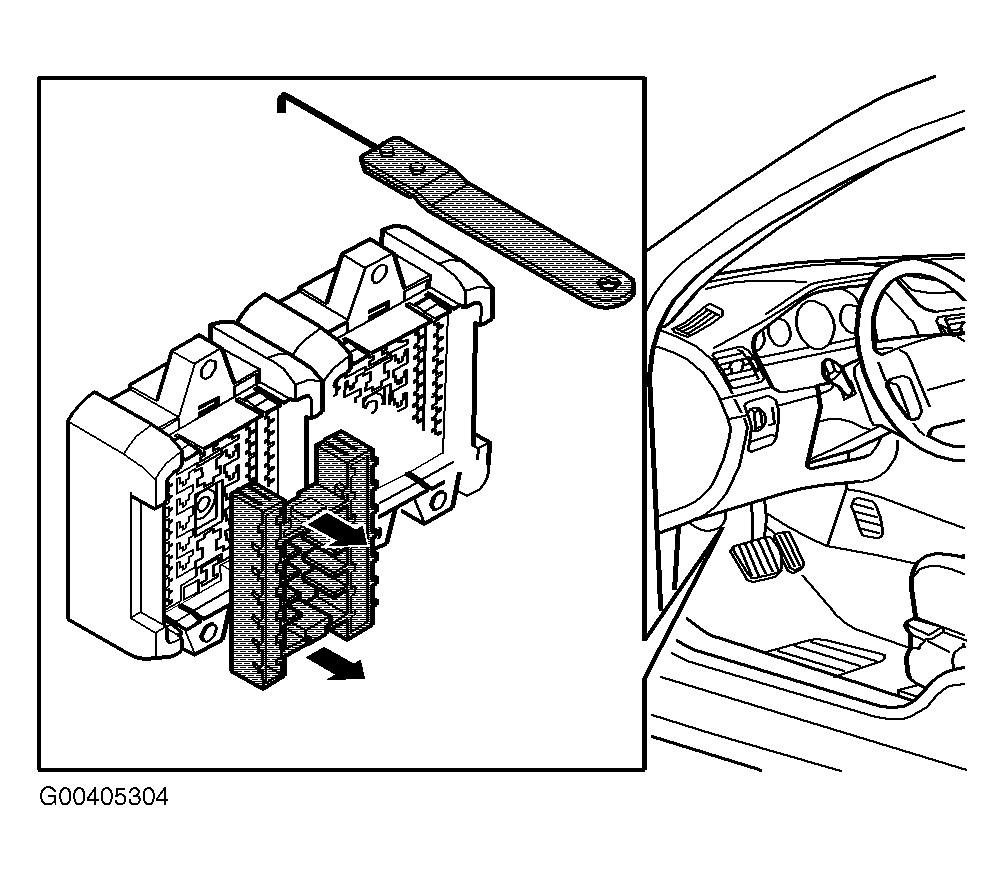

16. Remove the secondary lock from the connector 54/3LC. Pull alternately using the special tool 951 2853 in the direction of the arrows (see Fig 10 ).
    Fig 10: Removing Secondary Lock From Connector 54/3LC

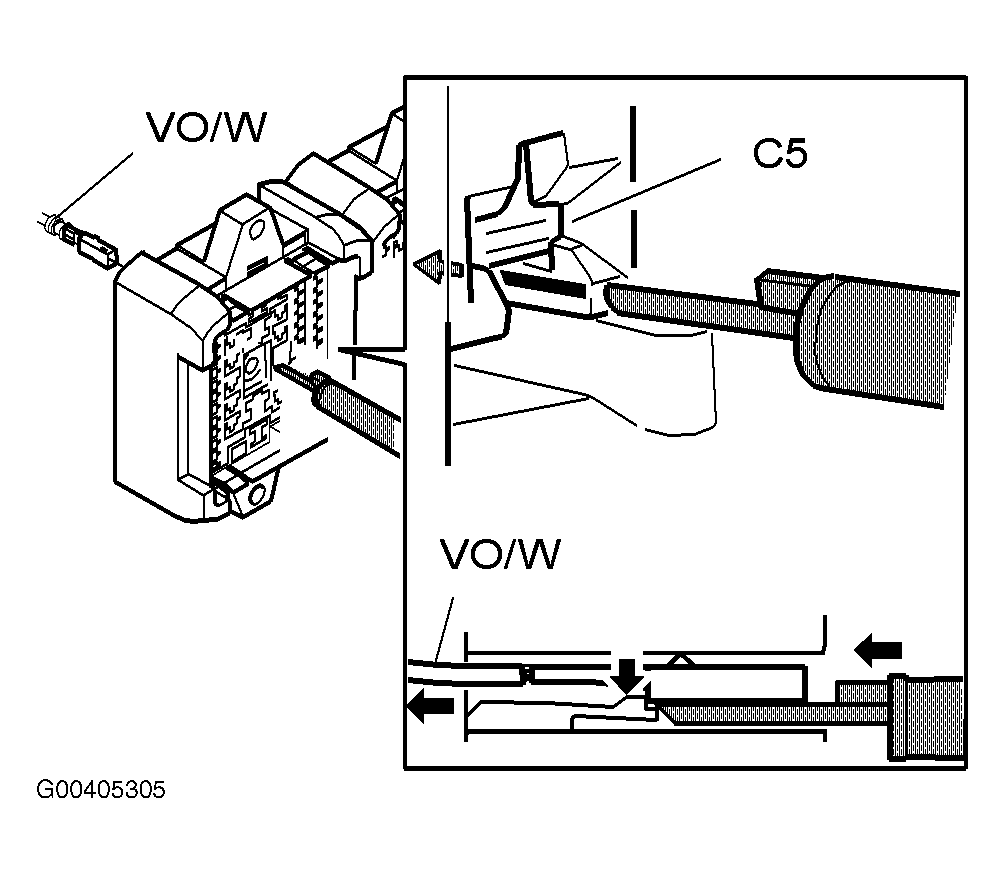

17. Remove the violet/white (VO/W) wire in terminal C5 from the connector. Use special tool 951 2852 (see Fig 11 ).

    Bend the terminal pin back. Tape the pin in the wire.

    Fig 11: Removing VO/W Wire In Terminal C5

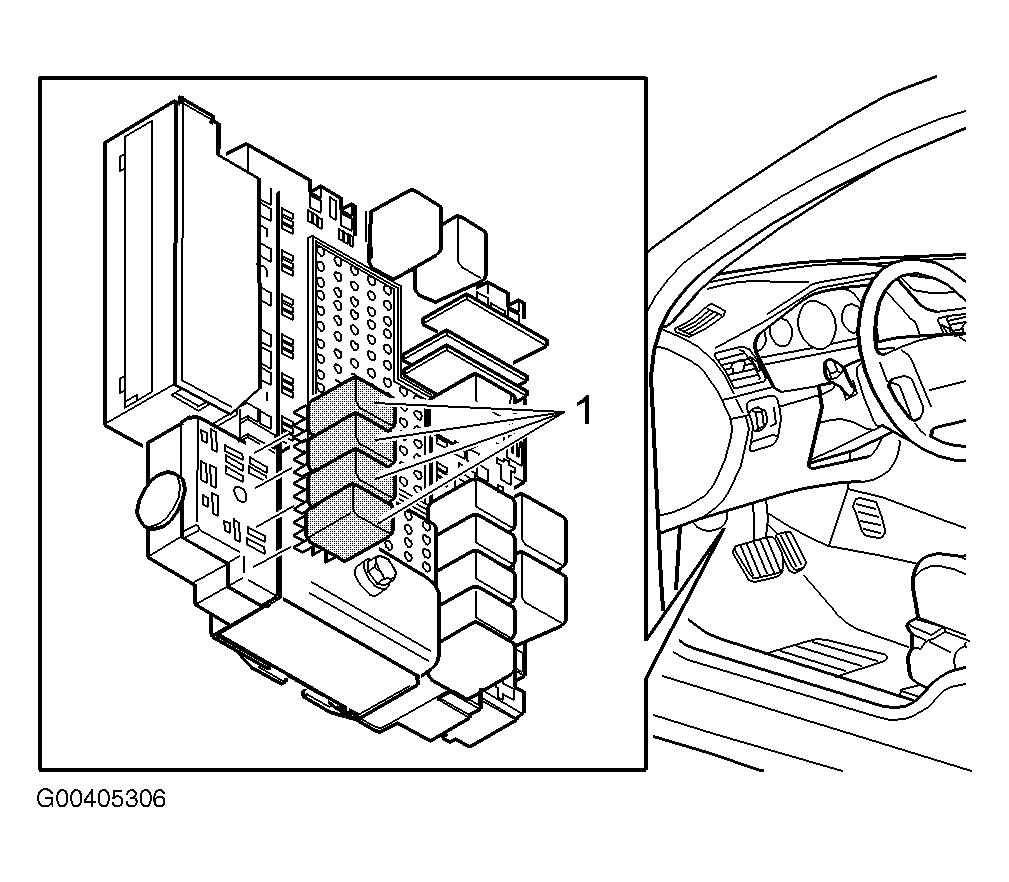

18. Remove the four relays (1) from the central electronic module (CEM) (see Fig 12 ).
    Fig 12: Removing CEM Relays

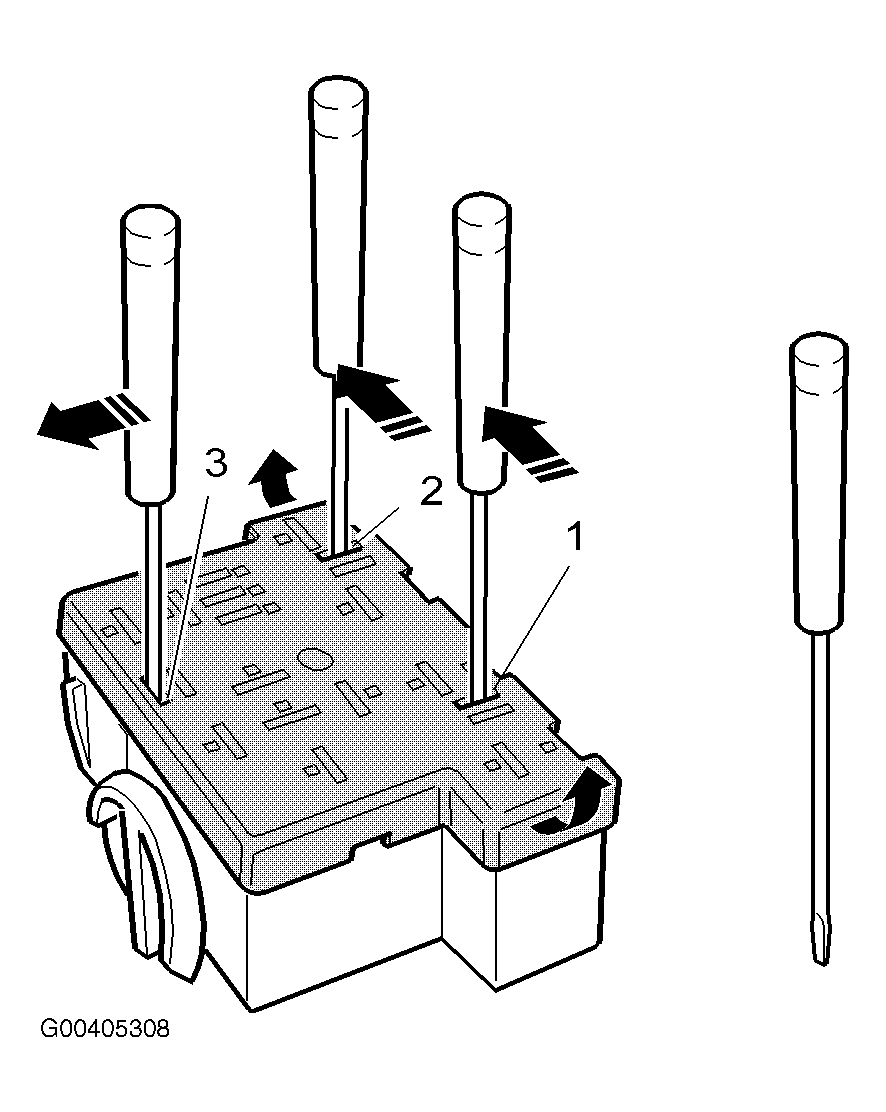

19. Remove the cover. Carefully pry the cover using a screwdriver following the number order as illustrated (see Fig 13 ). At the same time lift the cover.
    NOTE: The illustrations of the central electronic module (CEM) in the operation only show the section of the central electronic module (CEM) where the relays are positioned.
    Fig 13: Cover Removal Sequence

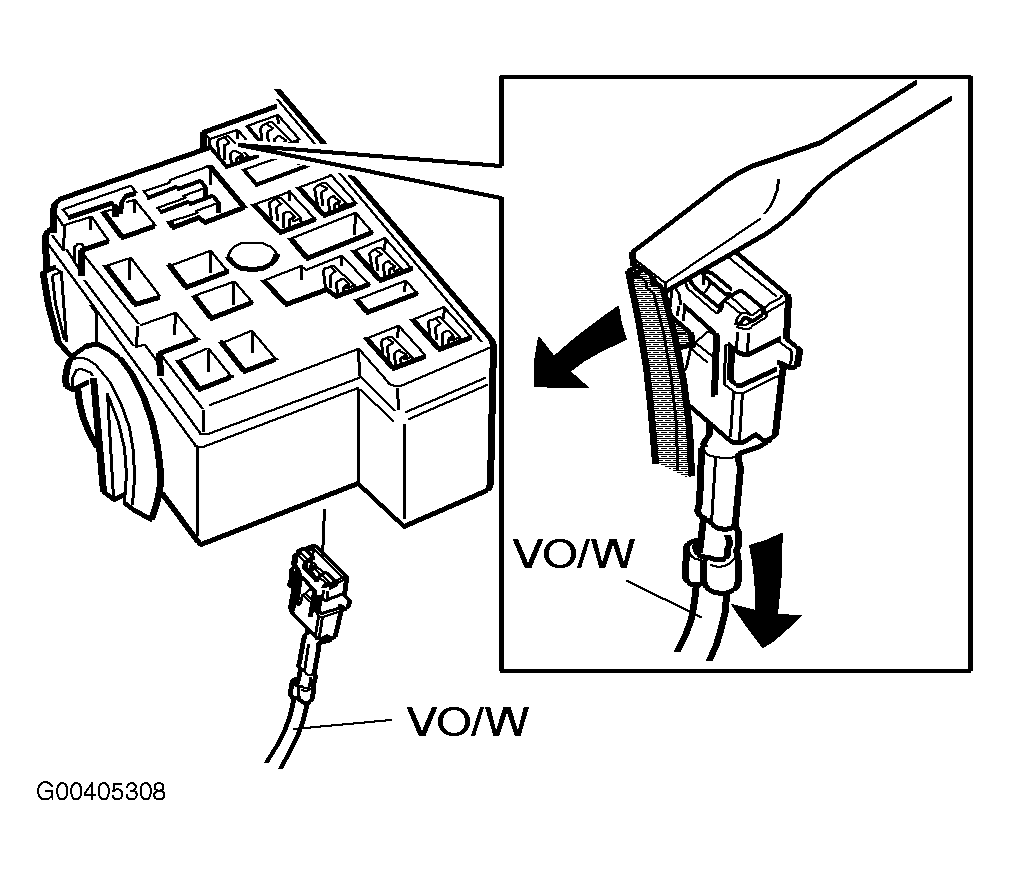

20. Remove the violet/white (VO/W) wire from the central electronic module (CEM) (MI 21 pos 1), as illustrated (see Fig 14 ). Bend the lock to one side using a small screwdriver. Pull out the terminal pin.

    Bend the terminal pin back. Tape the pin in the wire.

    Fig 14: Removing VO/W Wire From CEM


21. Disconnect the connector at the back of the gear selector assembly (see Fig 4 ).
22. Remove the secondary lock (see Fig 5 ).
23. Remove the violet/white (VO/W) wire from the connector. Use special tool 951 2852 (see Fig 6 ).

    Installing

24. New wire, installing

    Install the:

    • new violet/white (VO/W) wire from the jumper harness in the connector behind the gear selector (see Fig 7 )
    • secondary lock.

    Reconnect the connector.

25. Position the wire under the edge of the carpet continue along in front of the floor air vent. Then continue up to the wire harness under the dashboard. Secure the wire using the tie strap.

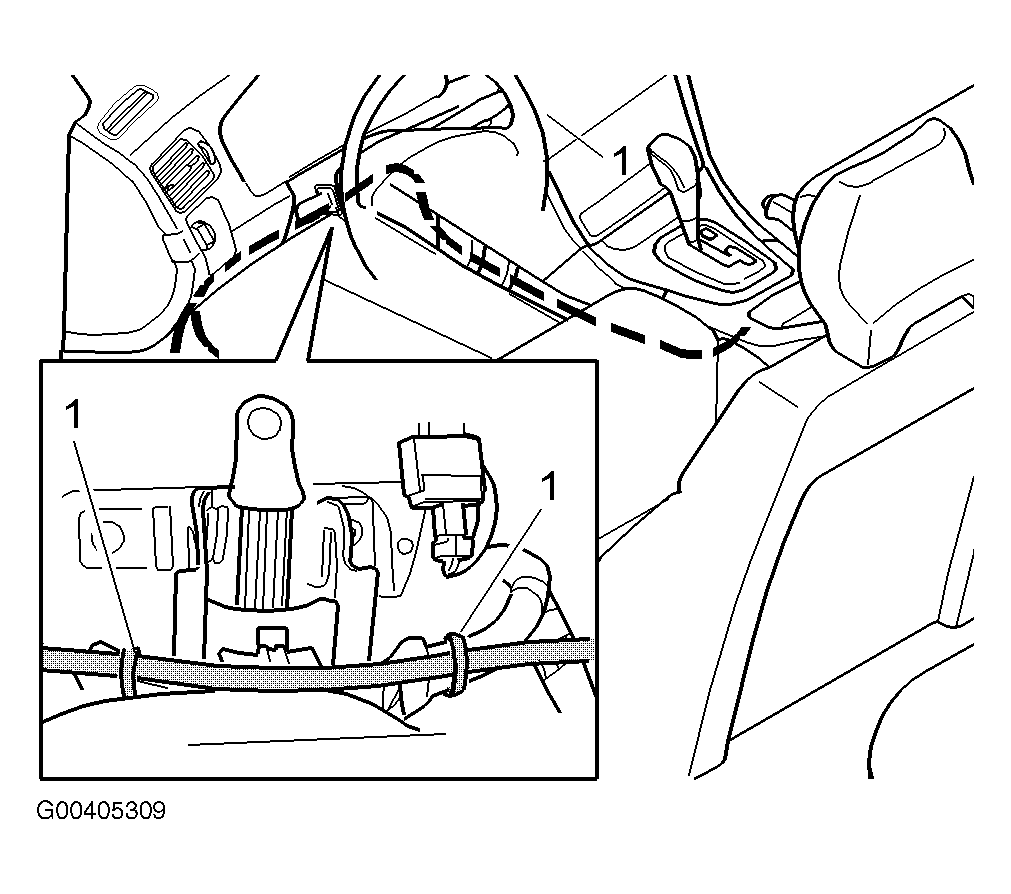

    Position the wire under the existing wire duct past the steering column. Secure the wire using a tie strap (1) on both sides of the steering column (see Fig 15 ).

    Fig 15: Positioning & Securing Wire w/Tie Strap

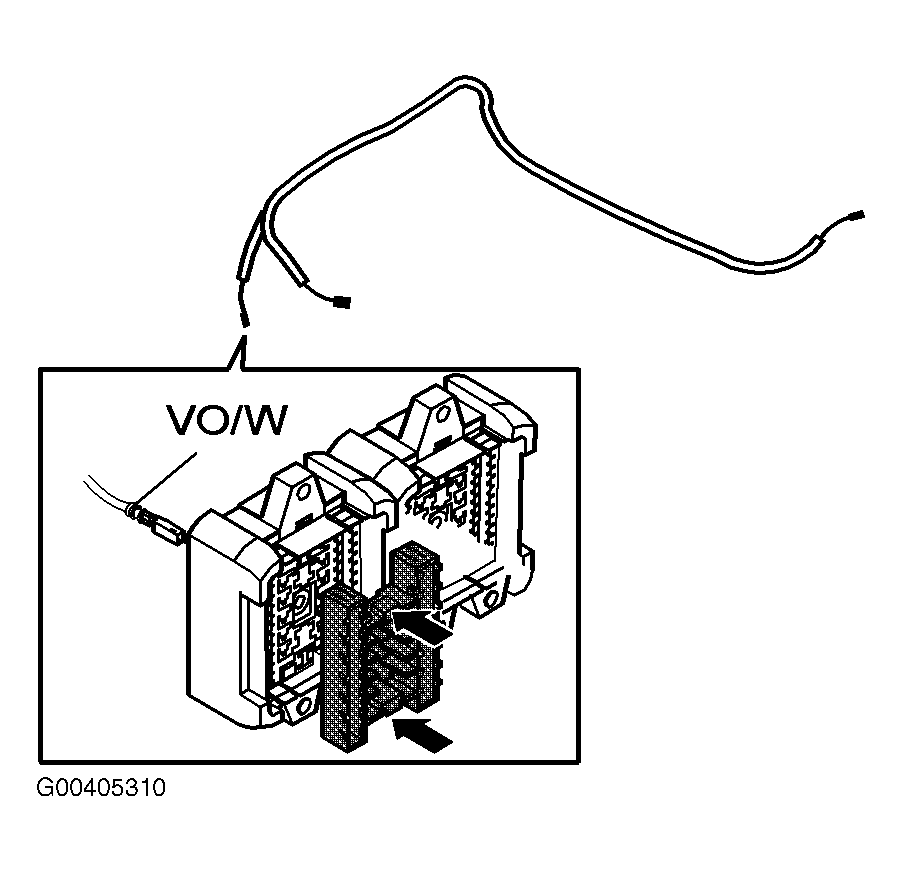

26. Install the:
    • new violet/white (VO/W) wire in terminal C5 in the connector (see Fig 16 )
    • secondary lock.
    Fig 16: Installing New VO/W Wire In Terminal C5


27. Install the:

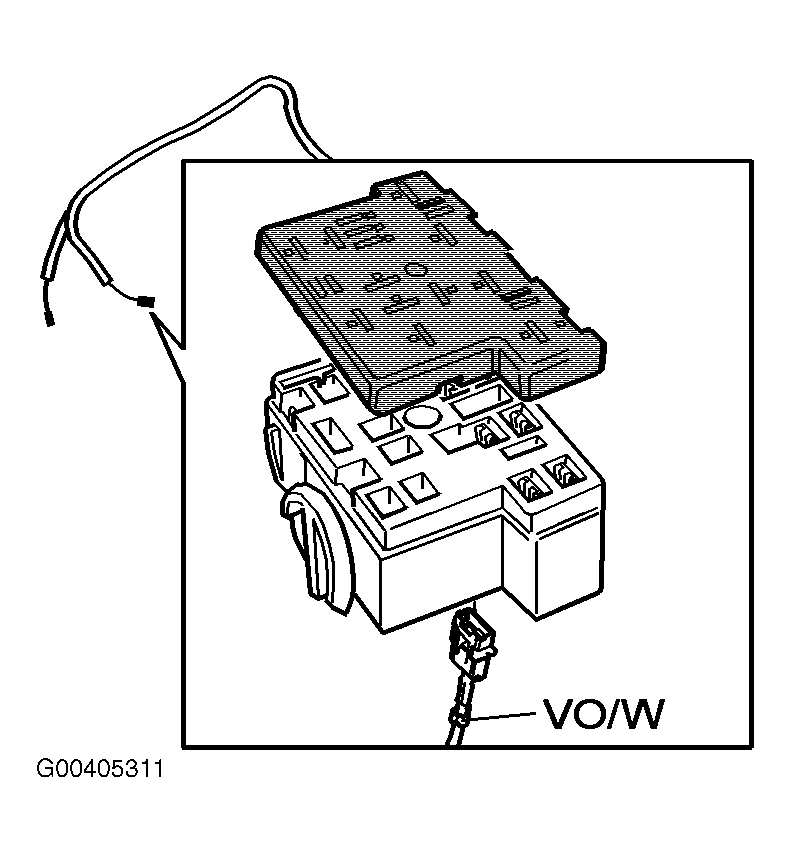

    • new violet/white (VO/W) wire in the central electronic module (CEM) (see Fig 17 )
    • cover.
    Fig 17: Installing New VO/W Wire In CEM


28. Install the:
    • connectors from the passenger compartment on the bracket. Tighten the four screws (see Fig 9 )
    • connectors from the engine compartment on the connectors from the passenger compartment. Tighten the screws
    • cover.
29. Install the Central electronic module (CEM) as per VADIS.
30. Install the windscreen wiper mechanism as per VADIS (see Fig 8 ).
31. Install the:
    • driver's side soundproofing panel
    • center console as per VADIS.

WARRANTY STATEMENT  : Claims may be submitted under the New Car Warranty when there is a documented customer complaint, using claim type 01.
