Wheel Lug Nuts

NOTE: Some graphics may differ from actual equipped wheels.

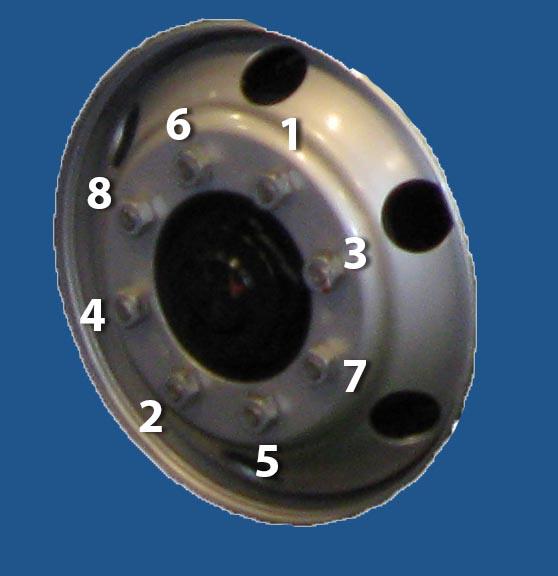

Fig 1: 8 Lug Nut Tightening Pattern (Pre-Delivery)

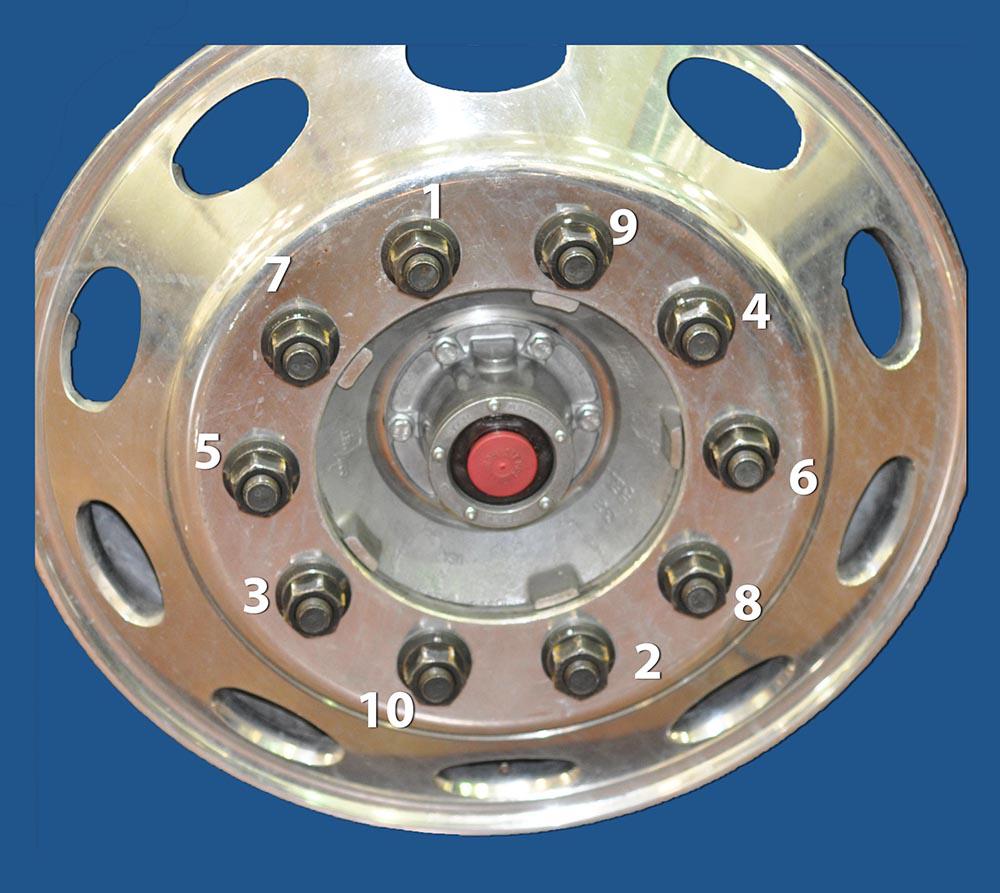

Fig 2: 10 Lug Nut Tightening Pattern (Pre-Delivery)

Fig 3: 10 Lug Nut Tightening Pattern (In Service)

WHEEL LUG NUTS

Application		Ft. Lbs. (N.m)
Wheel Lug Nuts (Vehicle in service) Fig 3
Step 1		148 ± 6 Ft.Lbs. (200 ± 8 N.m)
Step 2		Tighten an additional 90 Degrees
Final Step		472-516 Ft. Lbs. (640-700 N.m)
Pre delivery Inspection Fig 1, Fig 2
	All Disc Wheels	450 Ft. Lbs. (610 N.m)
	Dual Wheels
	Step 1	Loosen nuts
	Step 2	450 Ft.Lbs. (610 N.m)
Spoke Wheels		Check Wheel Manufacturer Specifications
For Stud & Hub Piloted Wheel Nuts		450-500 Ft Lbs. (610-678 N.m)
