Network, functions: Notes

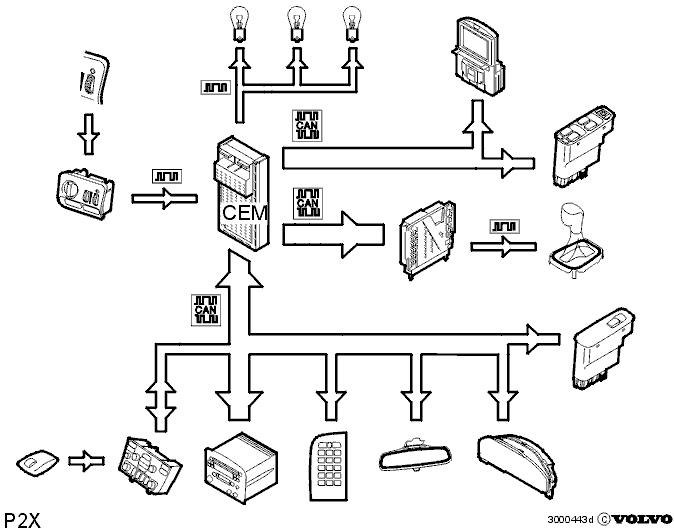

Fig 1: Identifying Network Functions

Courtesy of VOLVO CARS OF NORTH AMERICA.

Previously each function had its own Control module, for example cruise control, alarm, turn signal lamps, rear demist and so on. On the P2X a function can be split between a number of modules, each of which has a particular task within the overall function. It is also possible to introduce more logic functions without needing more cables, connections and switches.
