Installing The Fuel Rail: Notes

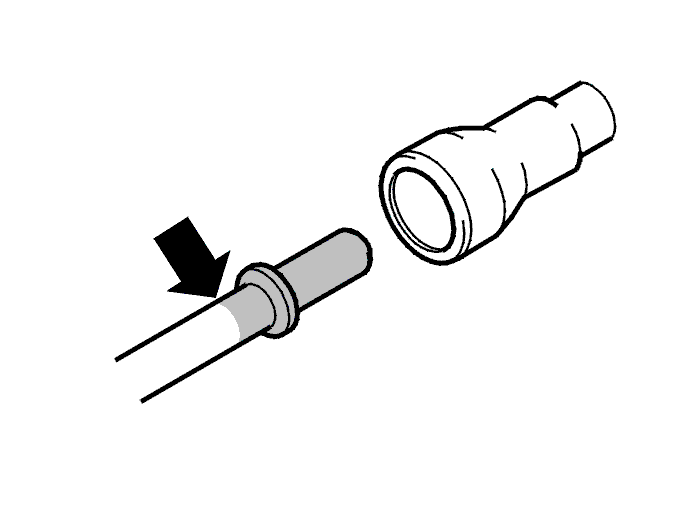

Fig 1: Fuel Line Quick-Release Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

• the fuel rail using new  screws. Tighten to 10 Nm
• the fuel line quick-release connector. See Fuel line, lock . Use lubricant 116 1580  .
  NOTE:

  Check that the connector is installed correctly.

• The injector connectors.
