Throttle Body (Electronic Throttle Module (ETM)), Replacing: Installing: Notes

NOTE:

For tightening torques, see:Tightening torque

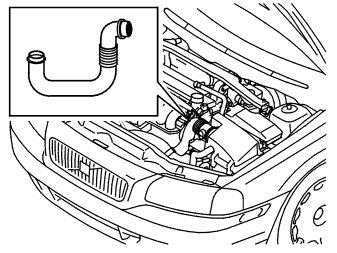

Fig 1: Identifying Throttle Body And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

Fig 2: Identifying Cylinder Block Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the wiring for the throttle body behind the bracket for the starter motor.

Install the screws in the cylinder block.

Tighten the two nuts and the screw.

Connect the connector and install the tie strap.

NOTE:

If the wiring was not behind the bracket for the starter motor, it must be secured along the cable duct by two tie straps.

Fig 3: Identifying Dipstick Tube

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

Connect the negative battery lead. Battery, disconnecting
