Specifications (B6284T; 1999-2001)
>>
Component specifications
>>
Fuel tank pressure sensor
Fuel tank pressure sensor

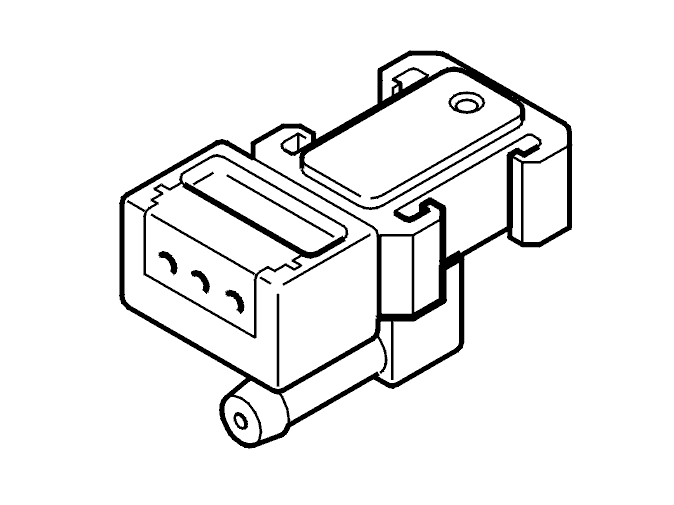

Fig 1: Identifying Fuel Tank Pressure Sensor
Courtesy of VOLVO CARS OF NORTH AMERICA.
Piezo electric lineal pressure sensor.
P (kPa)
-2.0
-1.5
0
0.5
V (Volts)
1.70
2.10
3.30
3.70
Courtesy of VOLVO CARS OF NORTH AMERICA.
