Climate Control Module (CCM), Replacing: Notes

NOTE: The graphics in this service information are used for different model years and/or models. Some variation may occur. However, the essential information is always correct.

Preparations

Fig 1: Identifying Ignition Key Off

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Read out the programmed data before replacing the climate control module. This is done in VIDA vehicle communication. After replacing the climate control module (CCM), the relevant parameters must be programmed.

Move the gear selector/gear selector lever to the rearmost position.

Ignition off.

Remove the key. The key must be removed to ensure that the ignition is not switched on by mistake.

WARNING: After the key has been removed, wait three minutes before starting work.

Removing the climate control module (CCM)

Fig 2: Detaching Panel At Gear Selector Lever

Courtesy of VOLVO CARS OF NORTH AMERICA.

Detach the panel at the gear selector lever as shown.

Twist the panel so that it is as far from the center console as possible.

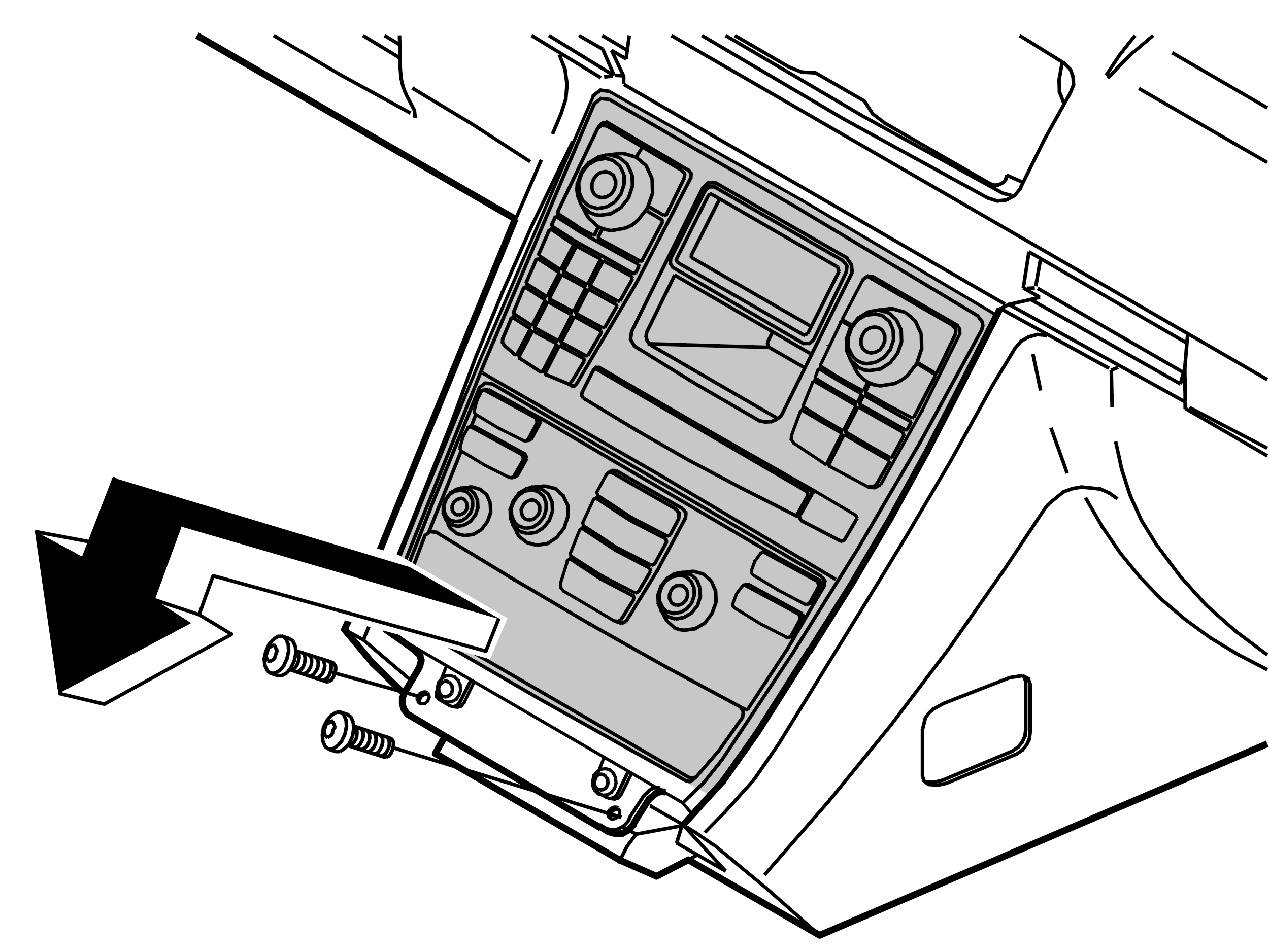

Fig 3: Identifying Bracket Lower Screws & Infotainment Control Module (ICM)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the lower screws from the bracket.

Angle out the entire infotainment control module (ICM) and the dashboard environment panel as shown.

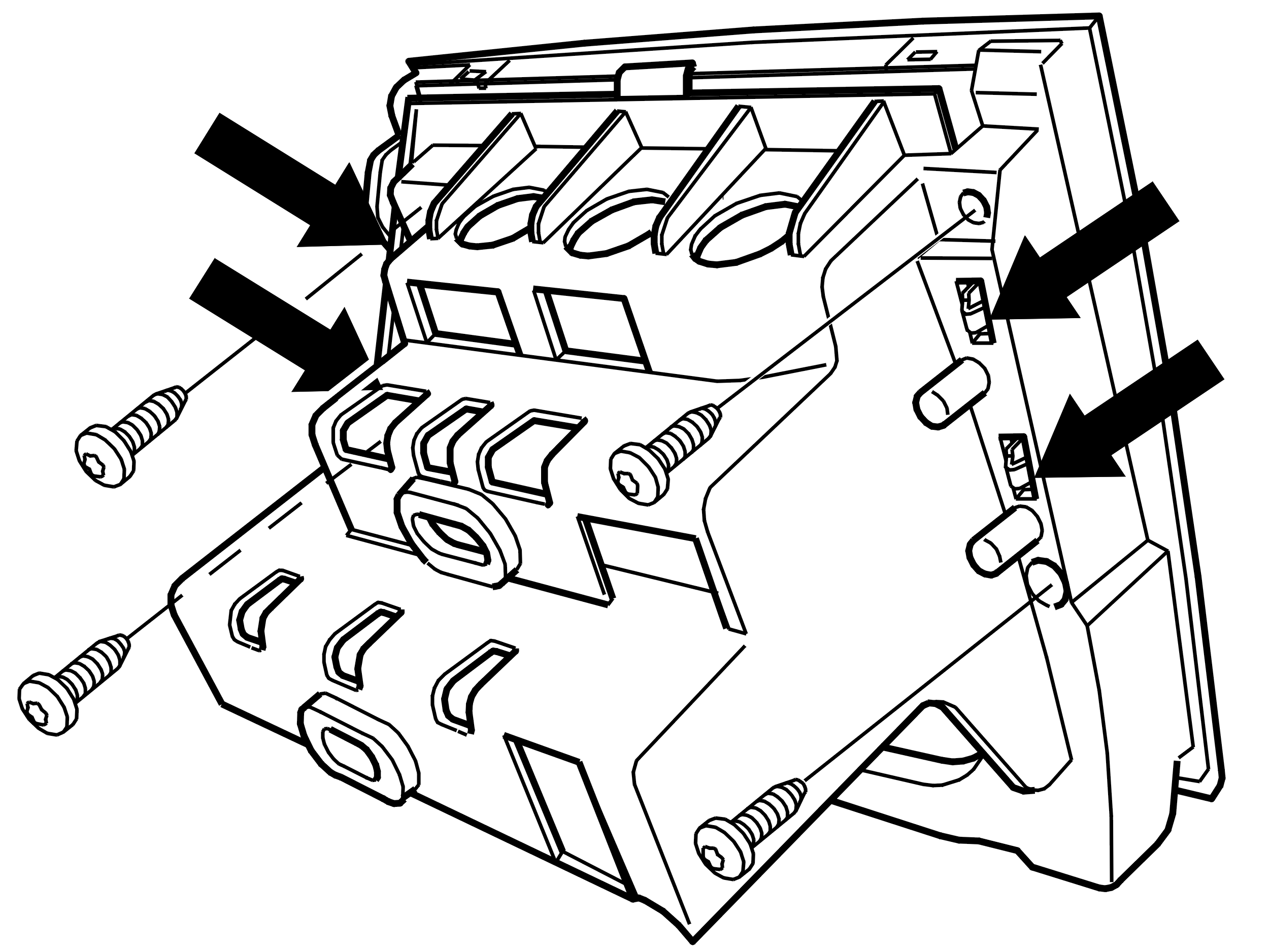

Fig 4: Identifying Infotainment Module Connectors And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the connectors.

Turn the infotainment module with the dashboard environment panel.

Remove the four screws as shown.

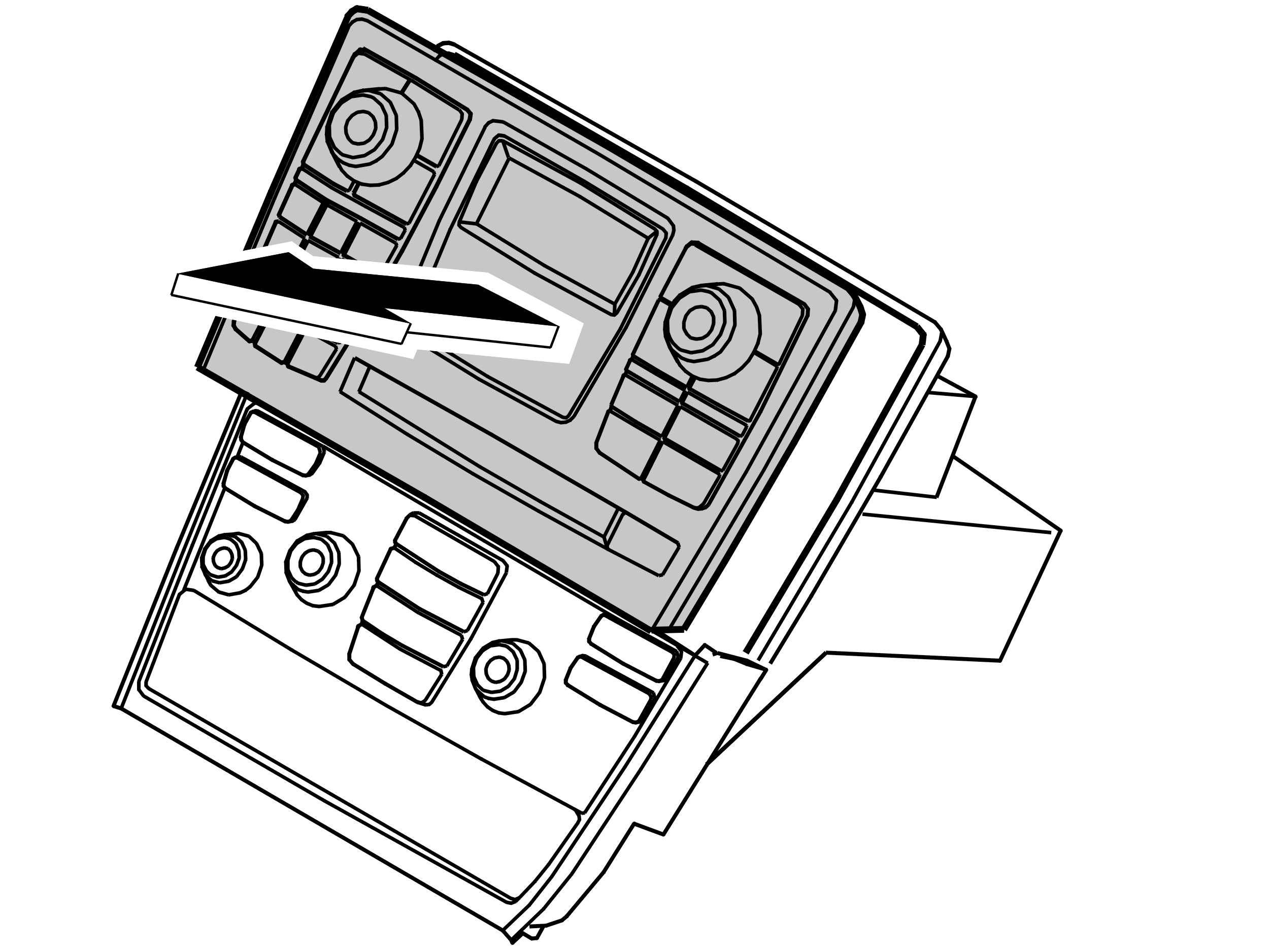

Fig 5: Identifying Infotainment Control Module Removal

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the four clips and remove the infotainment control module by pulling it straight out as shown.

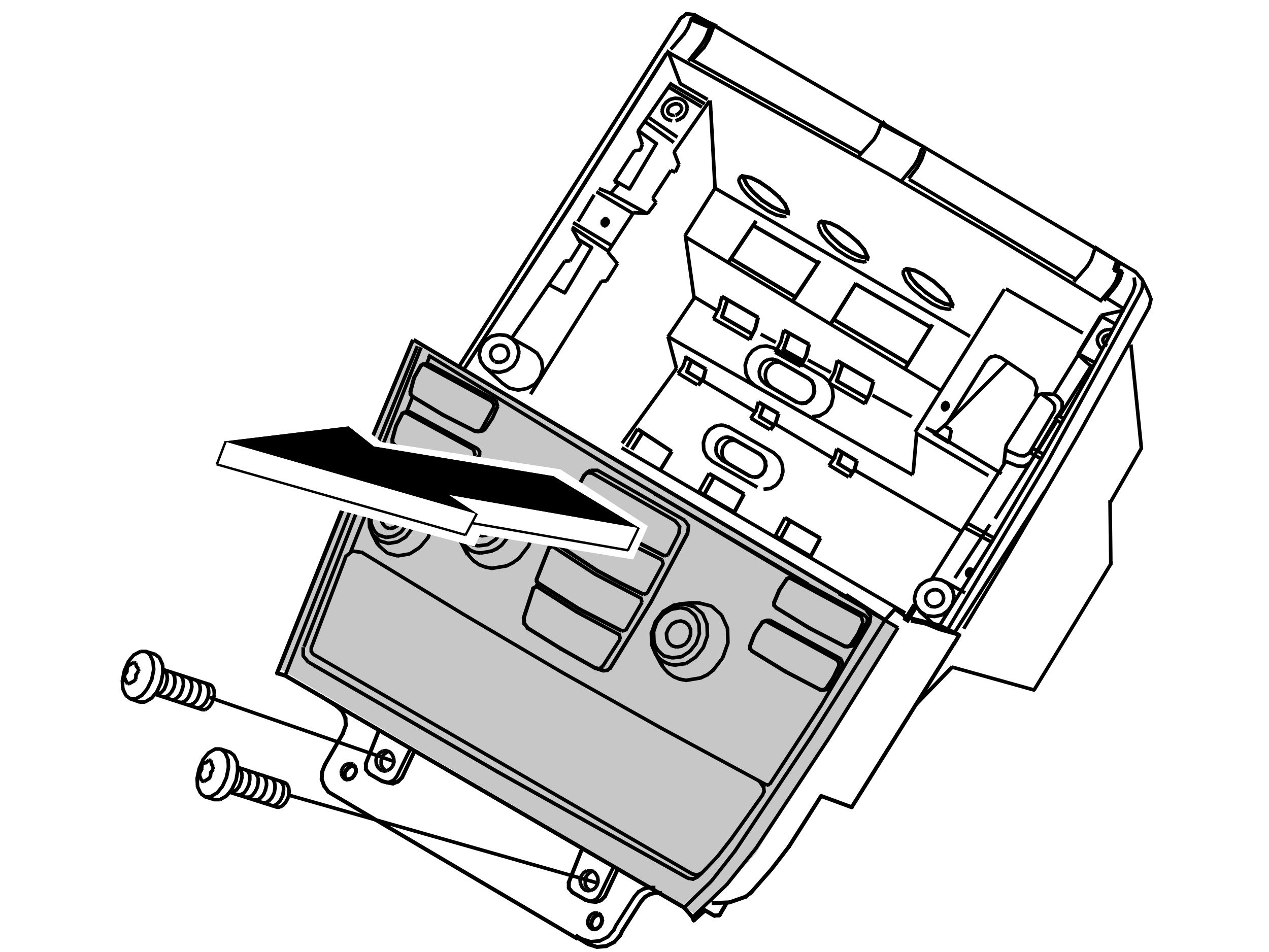

Fig 6: Identifying Dashboard Environment Panel Removal

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slacken off the two screws at the lower edge of the dashboard environment panel.

Pull the dashboard environment panel straight out from the bracket.

Installing the climate control module (CCM)

Fig 7: Identifying Dashboard Environment Panel Screws & Infotainment Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the dashboard environment panel using the two screws
the infotainment panel so that it hooks into the dashboard environment panel.

Screw the infotainment panel into place using the four screws.

Connect the connectors.

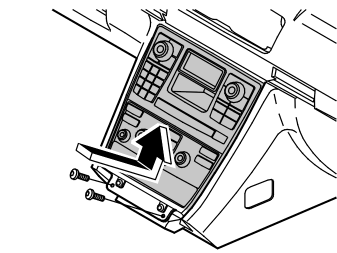

Angle in the upper section of the infotainment control module first. Then screw the lower edge into place using the two lower screws.
