Component Locations

Refer to illustration for SRS component location. See Fig 1 or Fig 2 .

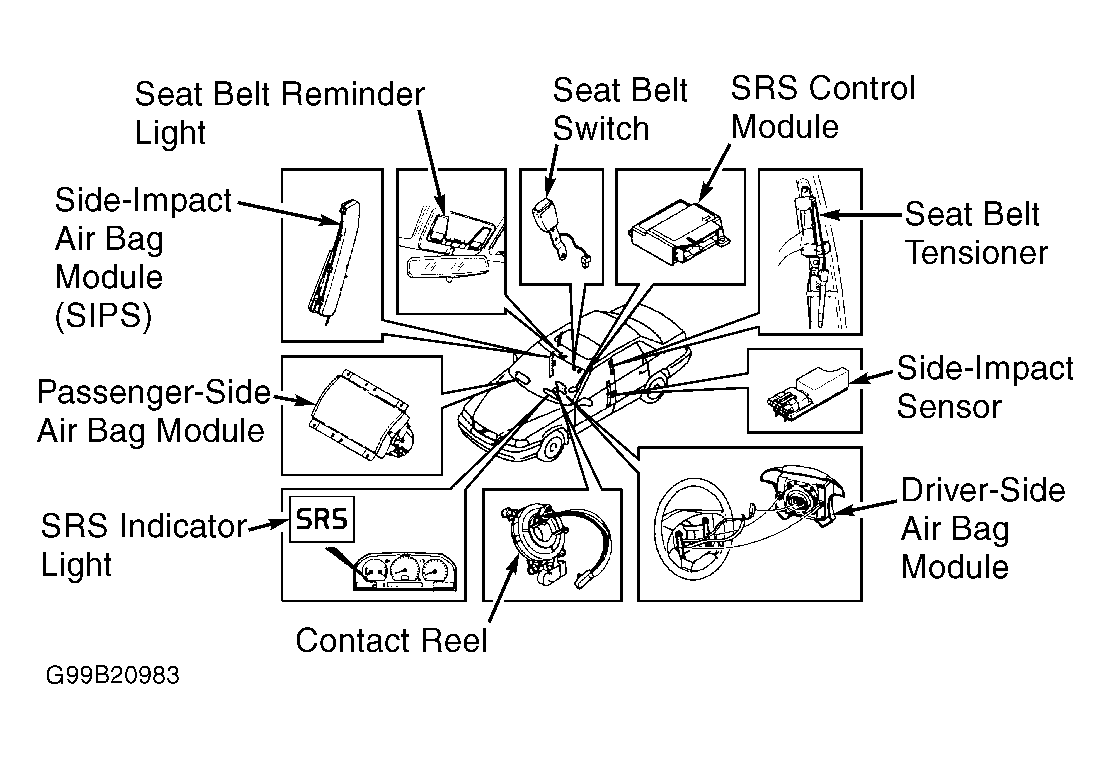

Fig 1: Locating SRS Components (S70 & V70 Models)

Courtesy of VOLVO

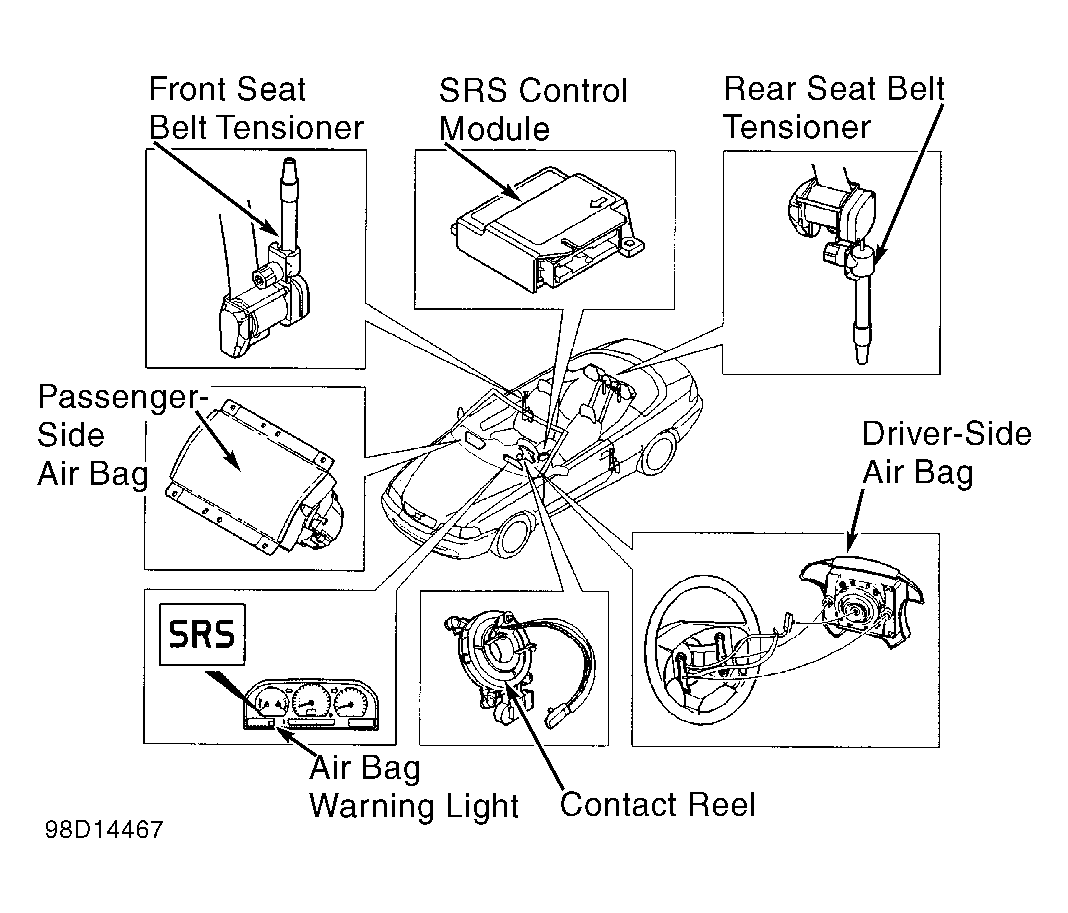

Fig 2: Locating SRS Components (C70 Convertible Model Shown; C70 Coupe Is Similar)

Courtesy of VOLVO
