Identification
>>
Main Fuse Block
Main Fuse Block
Fig 1: Locating Main & Electrical Distribution Fuse Boxes
Courtesy of VOLVO CARS OF NORTH AMERICA.

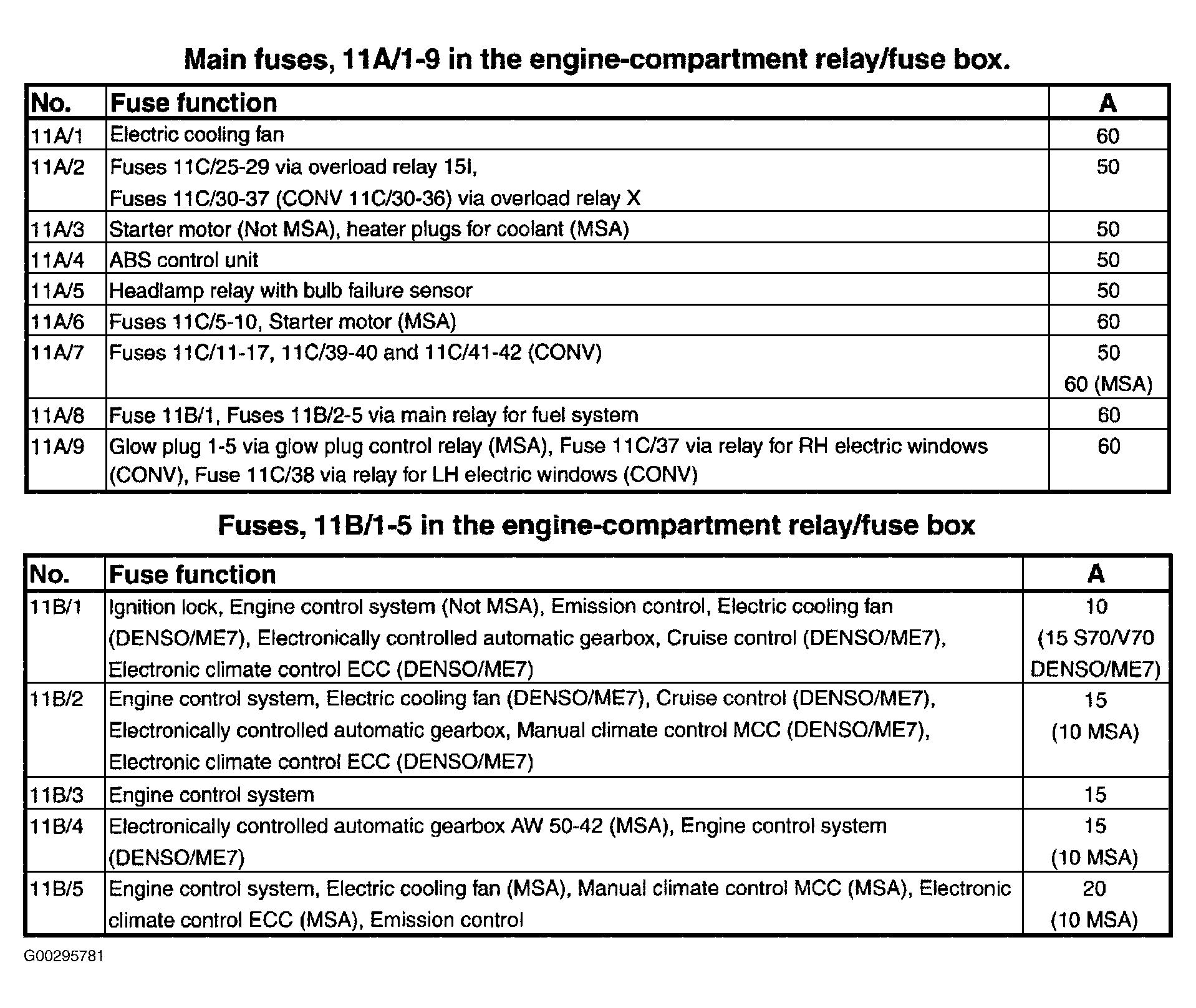

Fig 2: Main Fuse Box Fuses Legend
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
