Input Devices: Notes

All vehicles are equipped with different combinations of input devices. Not all devices are used on all models. To determine input usage on a specific model, see ENGINE PERFORMANCE WIRING DIAGRAMS article. See Fig 1 for components.

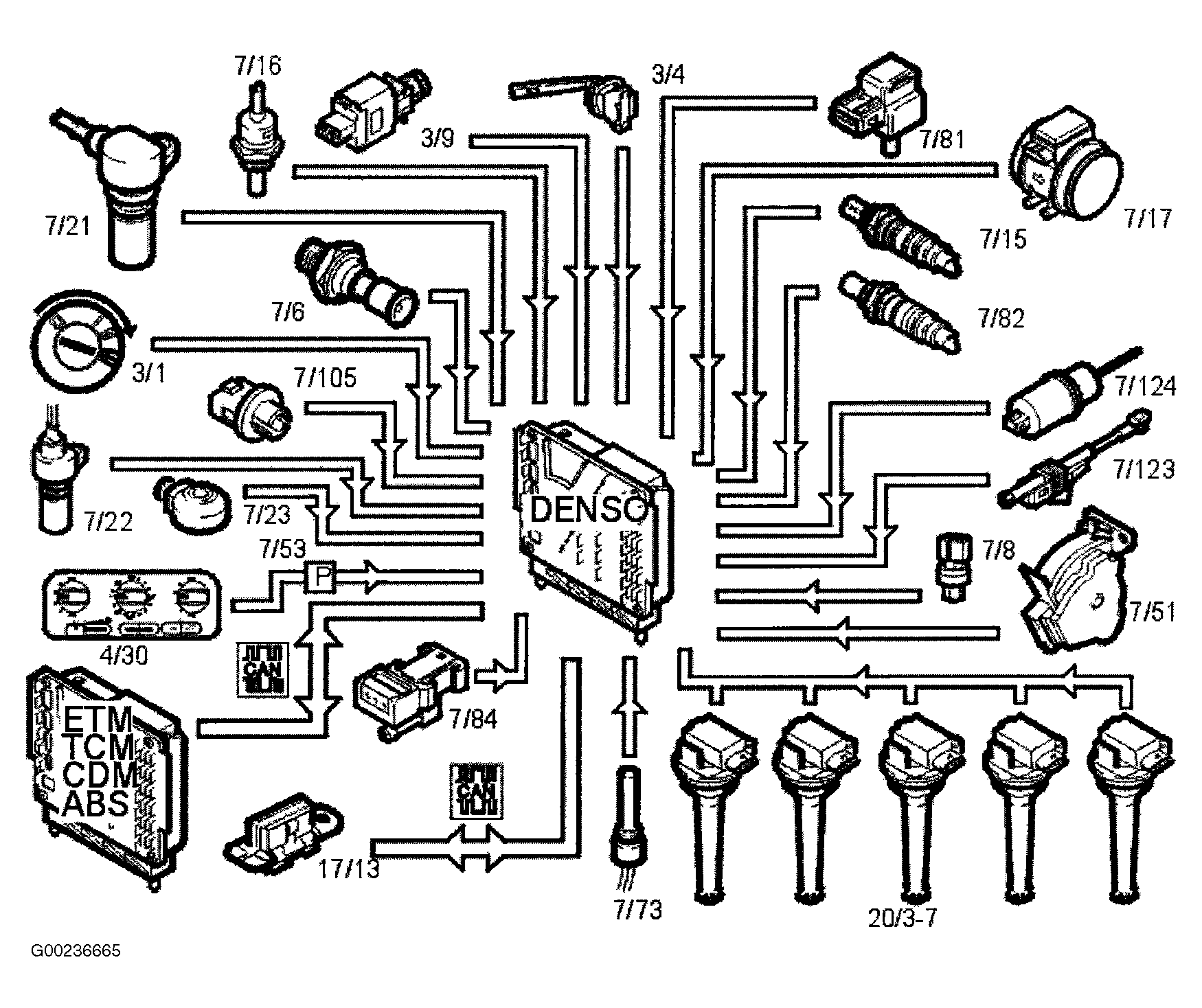

Fig 1: Identifying ECM Input Signals

Courtesy of VOLVO CARS OF NORTH AMERICA.

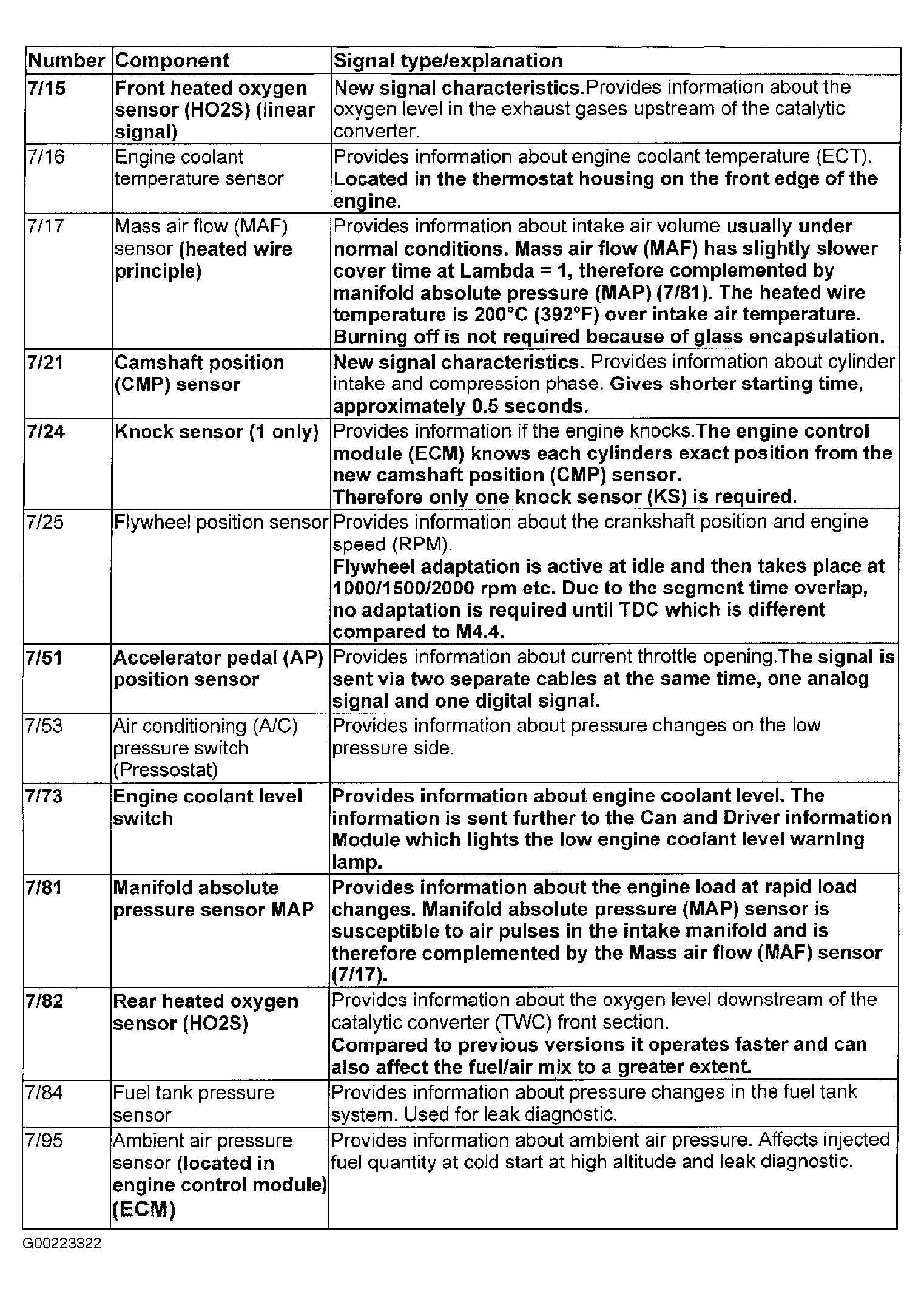

Fig 2: Identifying ECM Input Signals (Legend- 1 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

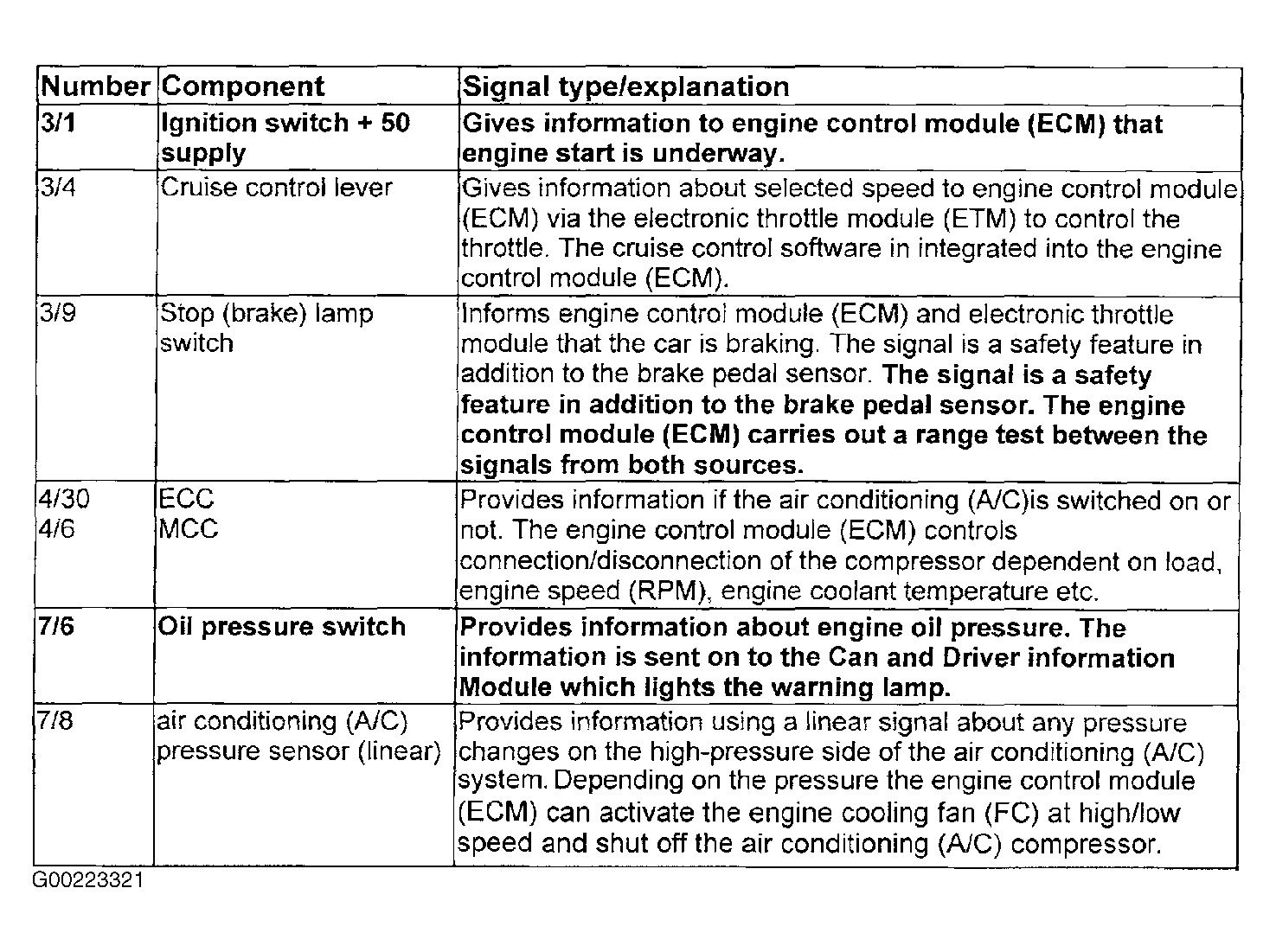

Fig 3: Identifying ECM Input Signals (Legend - 2 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

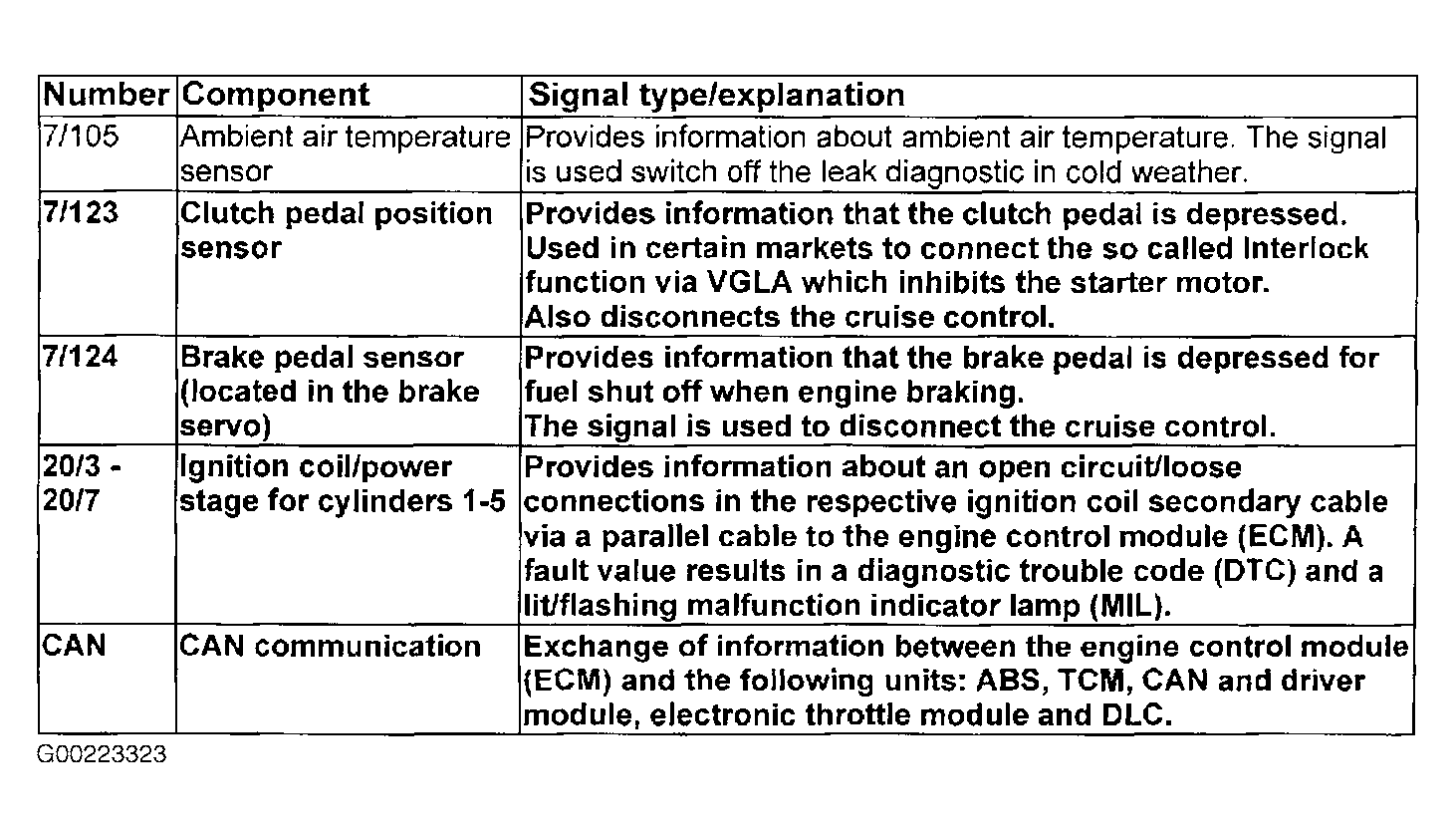

Fig 4: Identifying ECM Input Signals (Legend- 3 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.
