Instrument Cluster: Removal

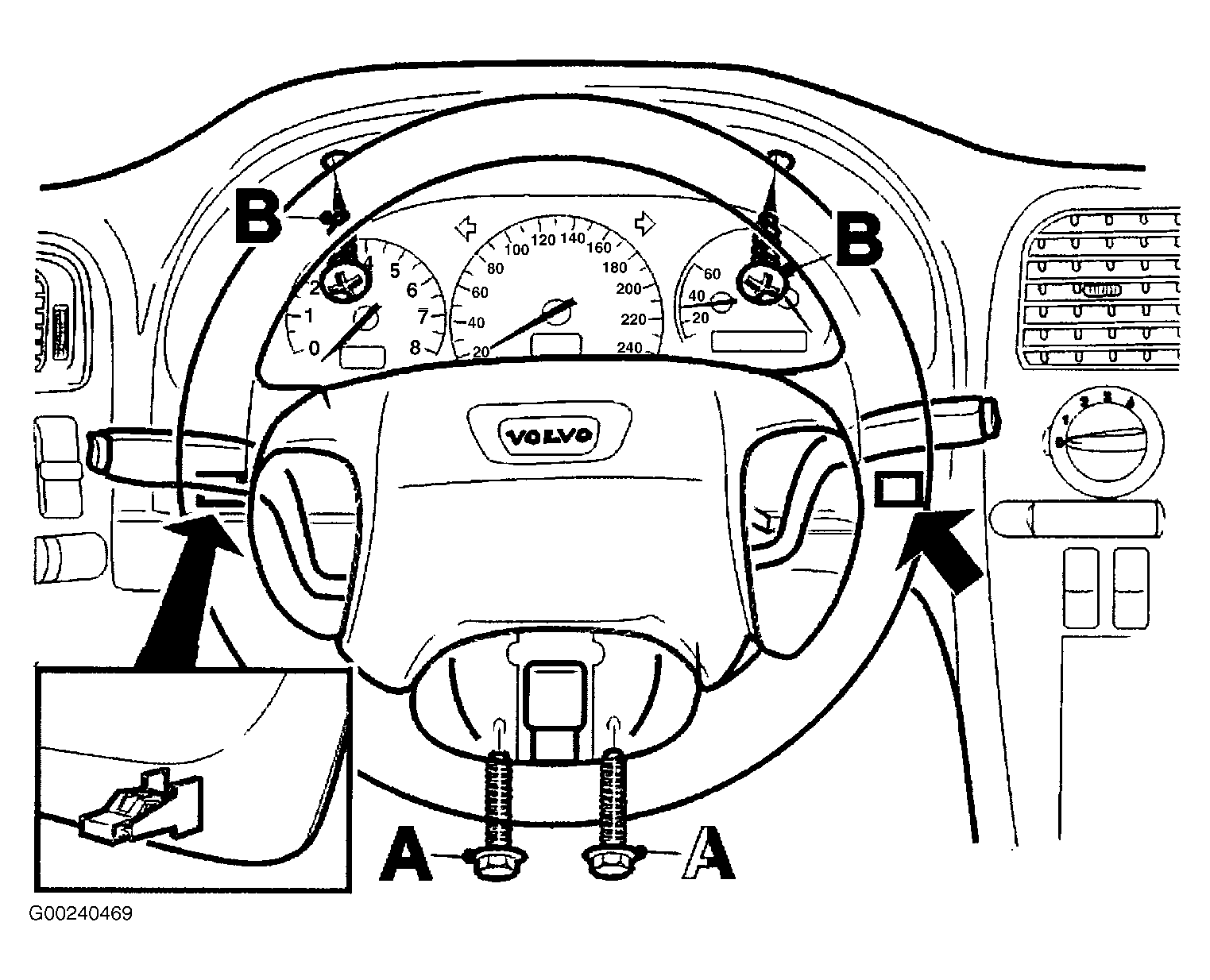

Remove the two mounting screws (A) for the steering shaft from underneath. See Fig 1. Allow the steering column to sink down. Remove the two screws (B) from the surround. Remove the surround from the clips. Remove the 3 screws for the combined instrument panel. Remove the combined instrument panel. (Where applicable, the connectors and cable for the odometer remain in place on the combined instrument panel.)
