Removal & Installation
- Release fuel system pressure. See FUEL SYSTEM PRESSURE RELEASE .

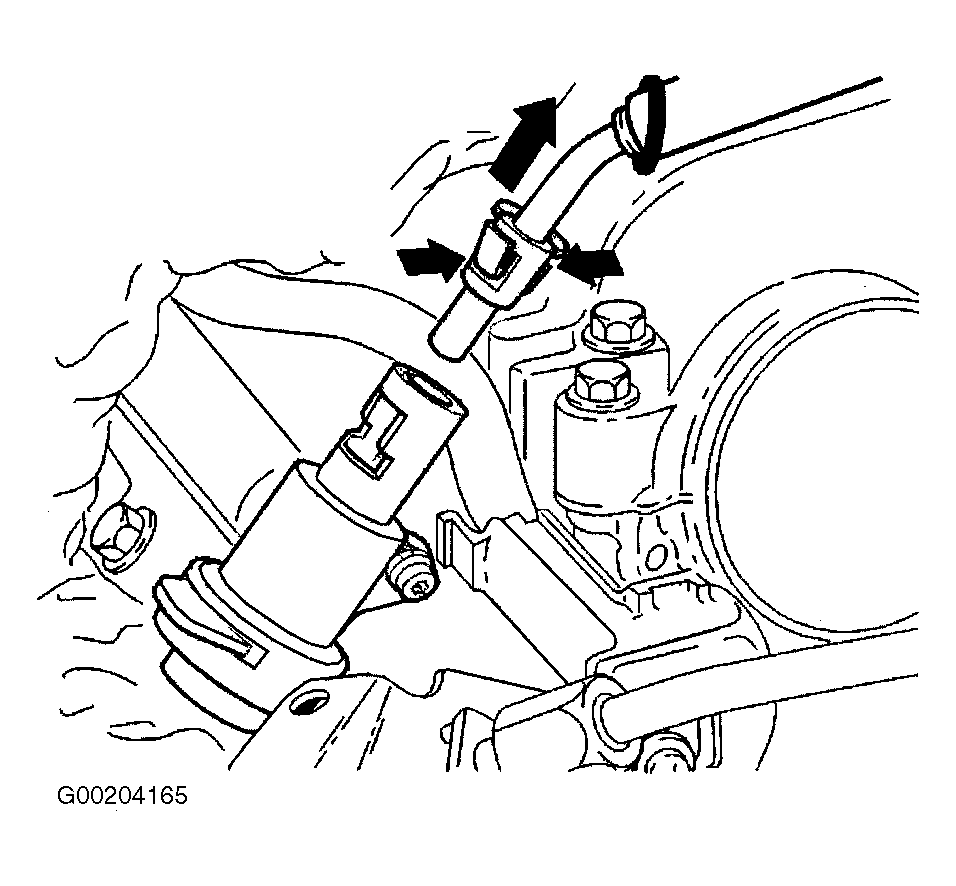

- Disconnect quick-release connector on fuel line and wipe up any spilled fuel. Release fuel line from clamps by pressing clips together. See Fig 1.

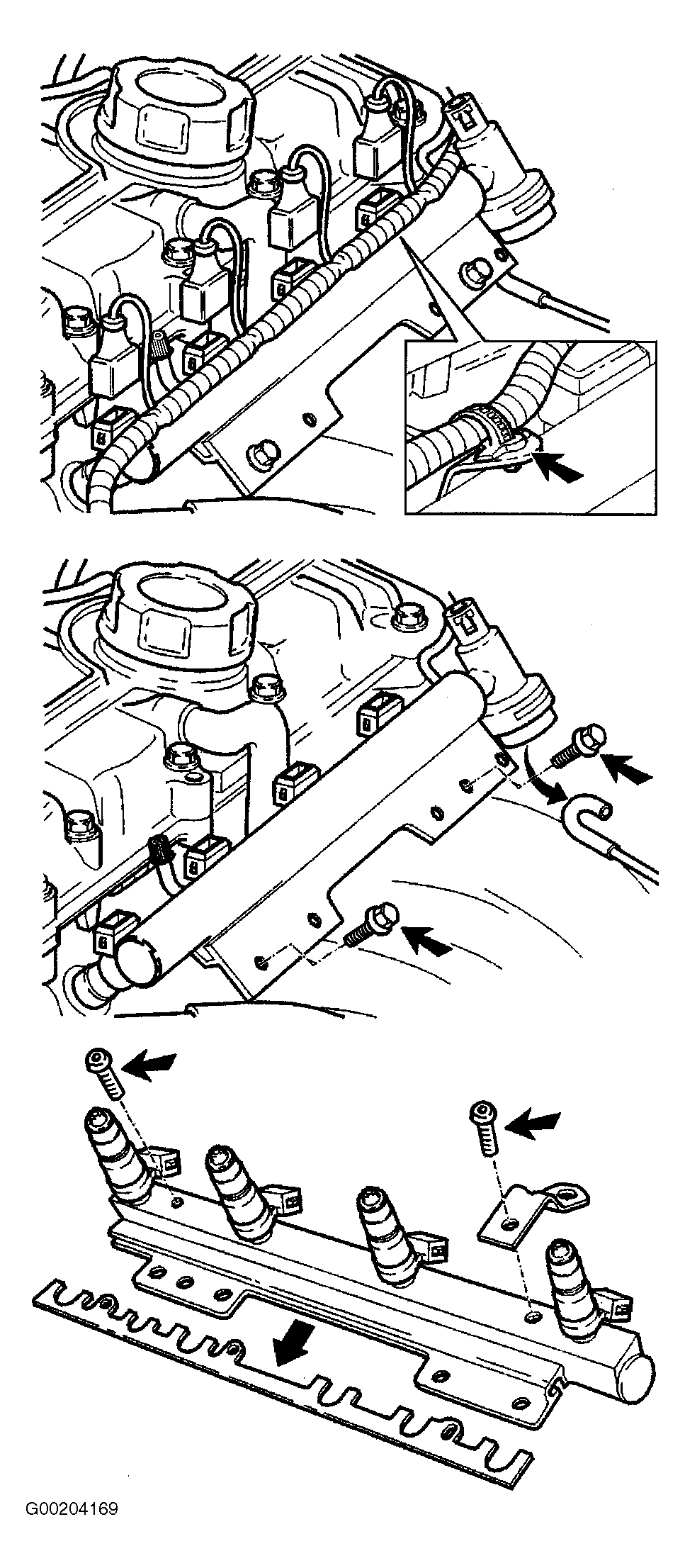

- Disconnect injector connectors. Remove wire harness and clips from bracket. Remove bolts holding fuel rail. Lift rail out with injectors attached. Disconnect vacuum line from manifold. Ensure all rubber seals and bushings are retained. Remove locking plate for injectors. Remove screws and slacken holding plate. Note position of bracket and pull out locking plate. Remove injectors from fuel rail by twisting. Seals that are not torn can be reused. Lubricate seals with petroleum jelly when reinstalling. See Fig 2.
- Follow reverse order of removal to install. Tighten fasteners to specification and use new clips for fuel line. See TORQUE SPECIFICATIONS . Check system carefully for leaks after installation is complete.
