Removing The Control Module

Ignition off.

Remove:

Center console locker or large-fronted radio
Ashtray holder (2 screws)
Right side panel
Remove the control module from the bracket
Disconnect the control module connector
Remove the control module.

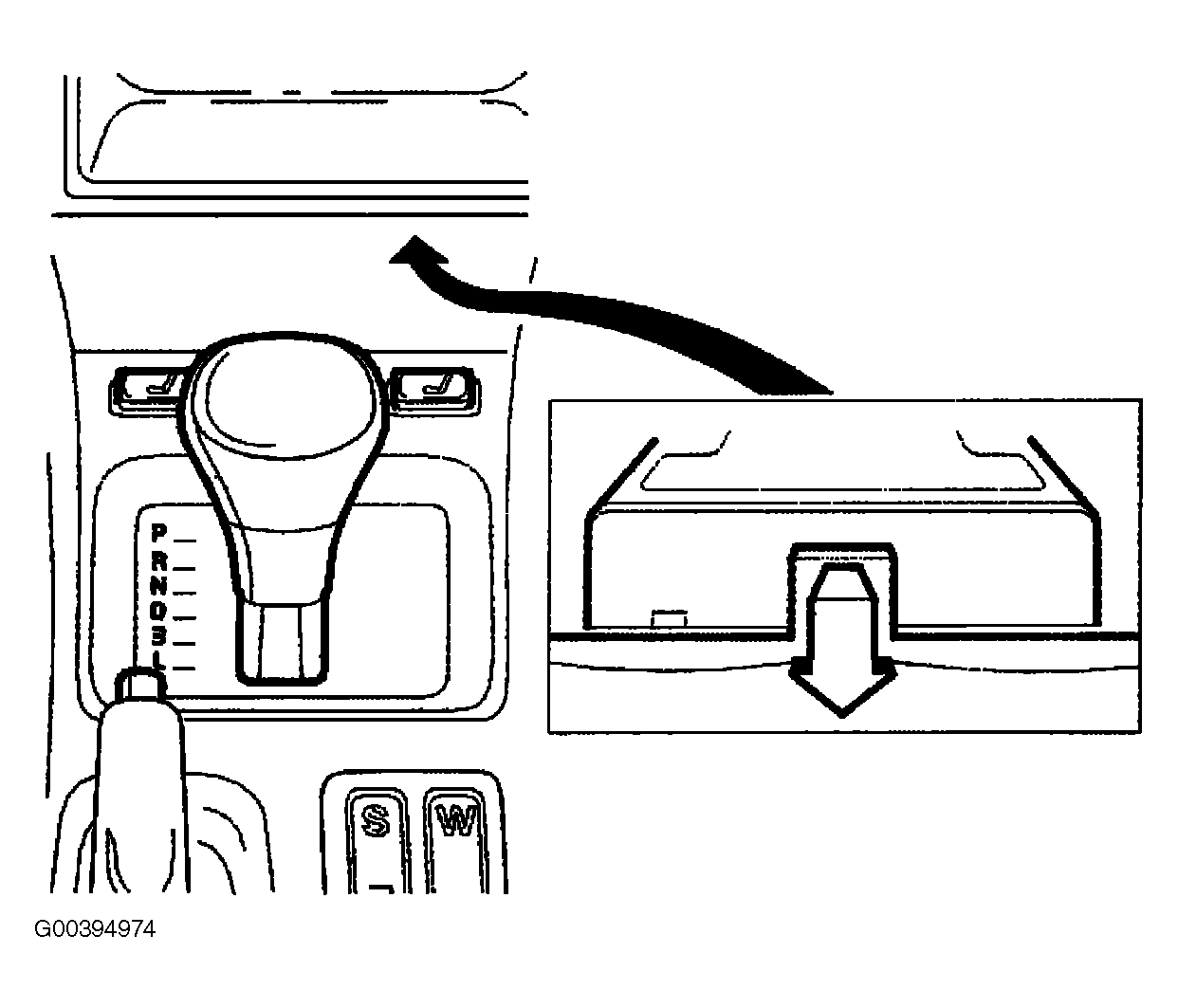

Fig 1: Locating Transmission Control Module

G00394974

Courtesy of VOLVO CARS OF NORTH AMERICA.
