Removing Control System

Remove cable harness from holders on the control system. Remove control system from transmission. Seven screws and two in cover. Remove the two seals between the transmission and control system. See Fig 1 .

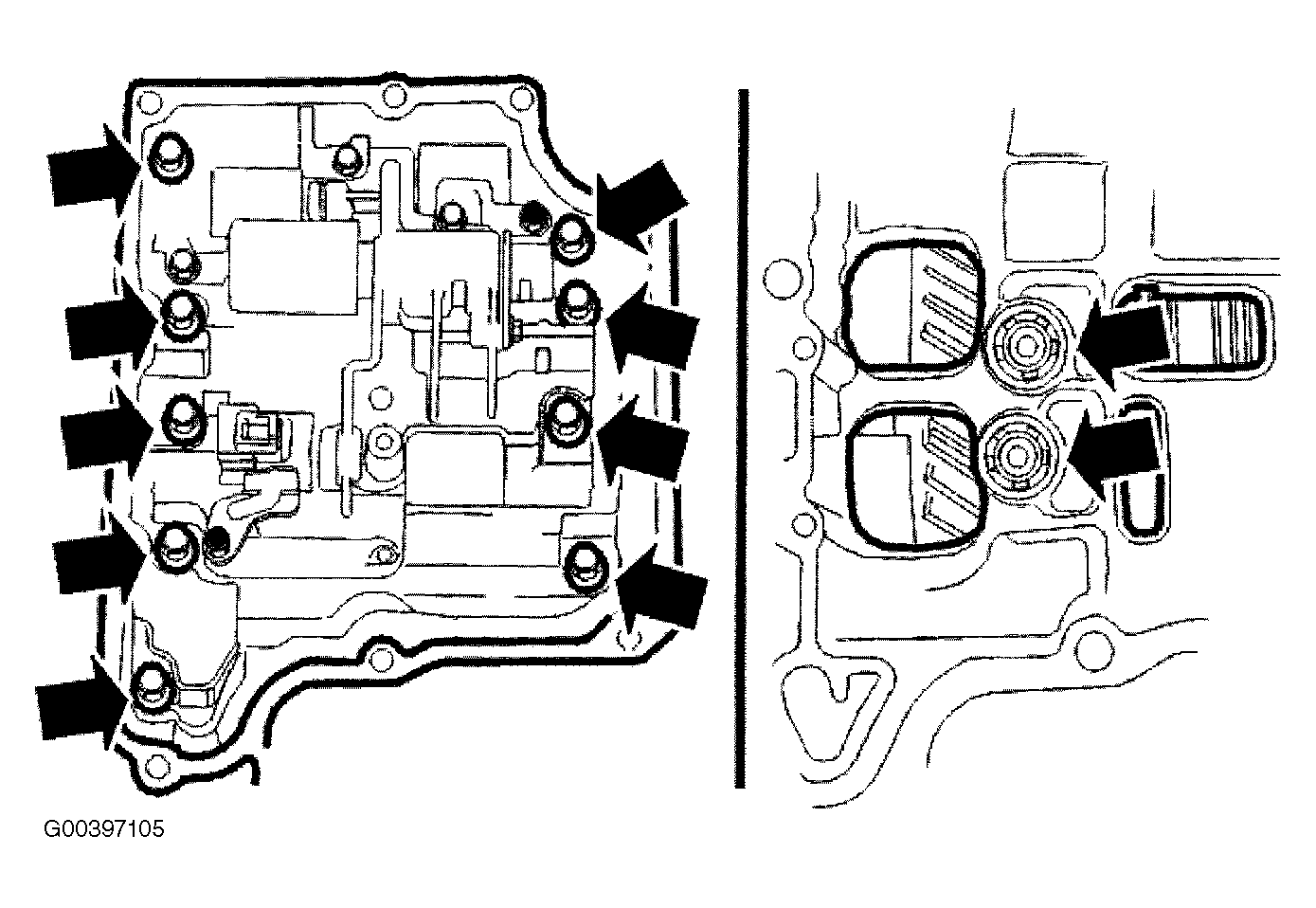

Fig 1: Removing Control System
G00397105Courtesy of VOLVO CARS OF NORTH AMERICA.
