Installing Components

Reinstall gear selector slide in control system as illustrated Fig 1 . Install new seals in transmission. Use gasolineeum jelly to hold seals in position.

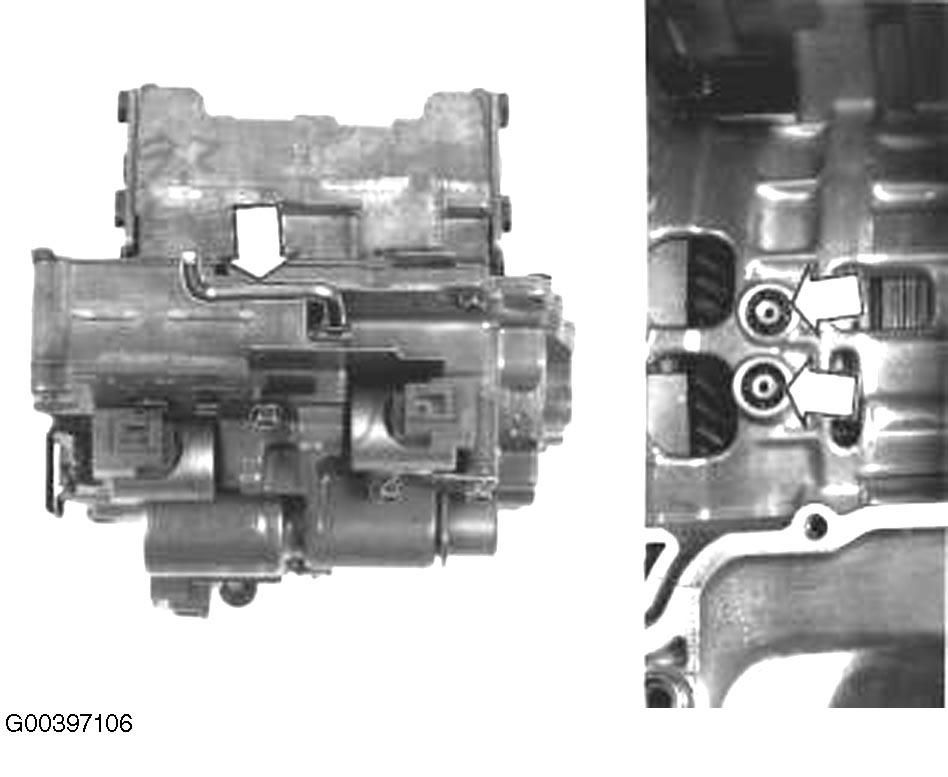

Fig 1: Installing Gear Selector Slide To Control System
G00397106Courtesy of VOLVO CARS OF NORTH AMERICA.
