Control Module, Replacing: Conditions

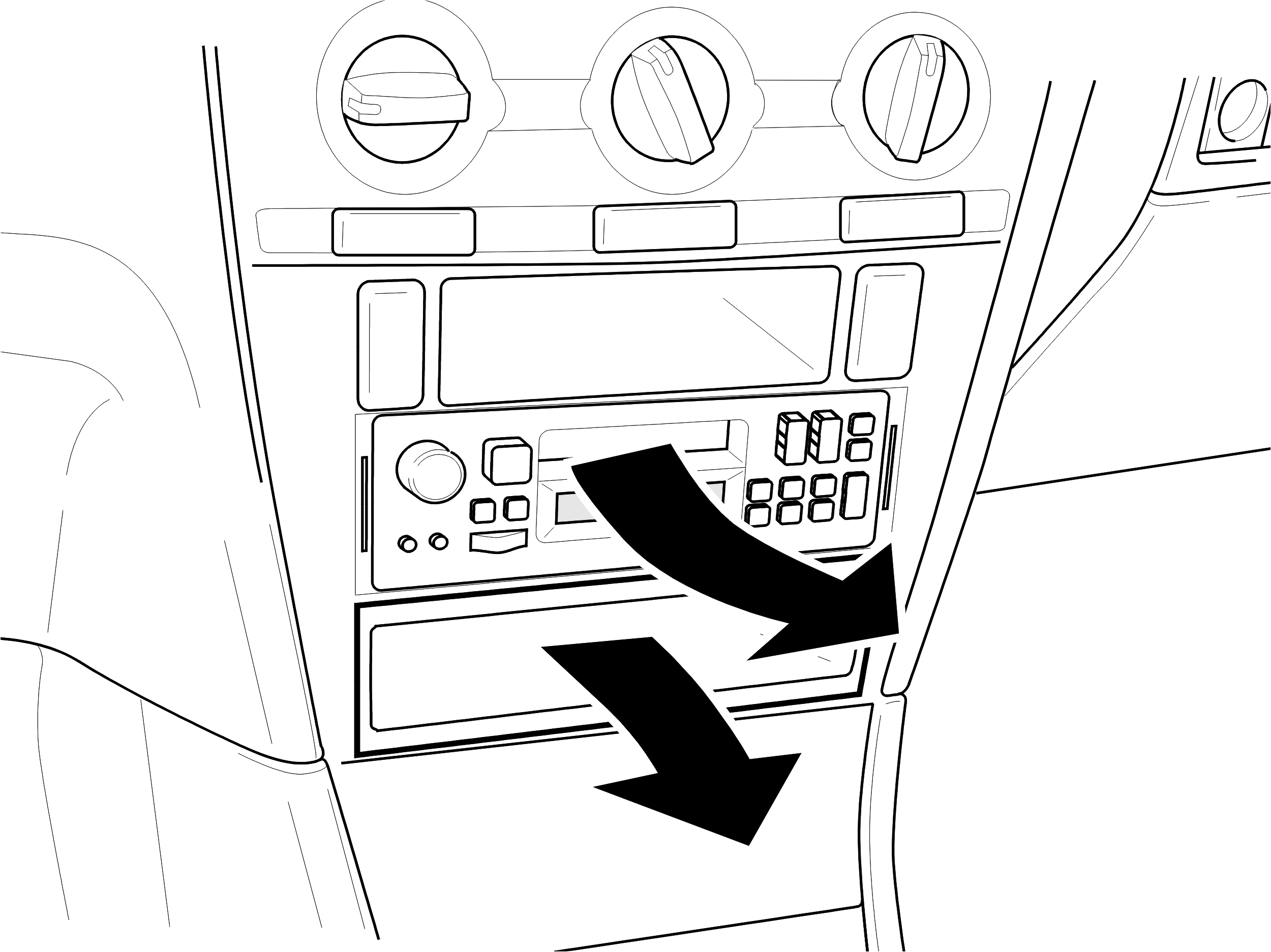

Fig 1: Removing Radio And Storage Compartment

GLL117239

Courtesy of VOLVO CARS OF NORTH AMERICA.

Make a note of the radio code
Switch off the ignition
Disconnect the battery ground lead
Remove the radio
Disconnect the connectors
Remove the storage compartment in the center console.
