Installing the Turn Signal Lamp Switch
Installing the Turn Signal Lamp Switch

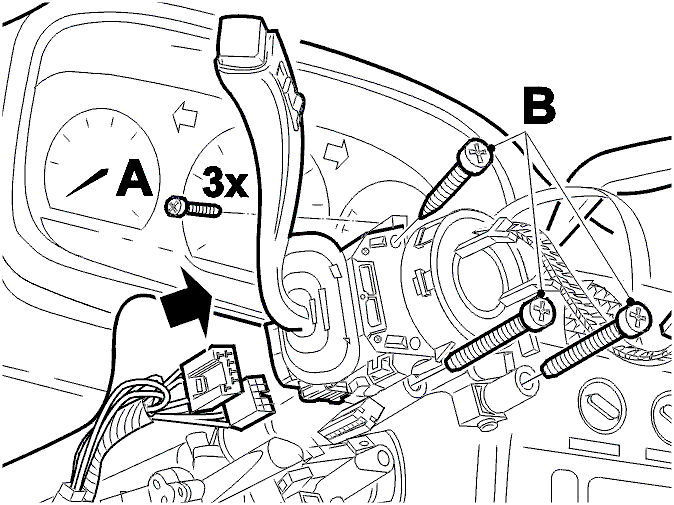

Fig 1: Installing Turn Signal Lamp Switch
Courtesy of VOLVO CARS OF NORTH AMERICA.
Install the new switch and tighten using the screws (A).
Connect the connectors and install the mounting screws (B) (3x).
