Replacing the back-up (reversing) lamp switch

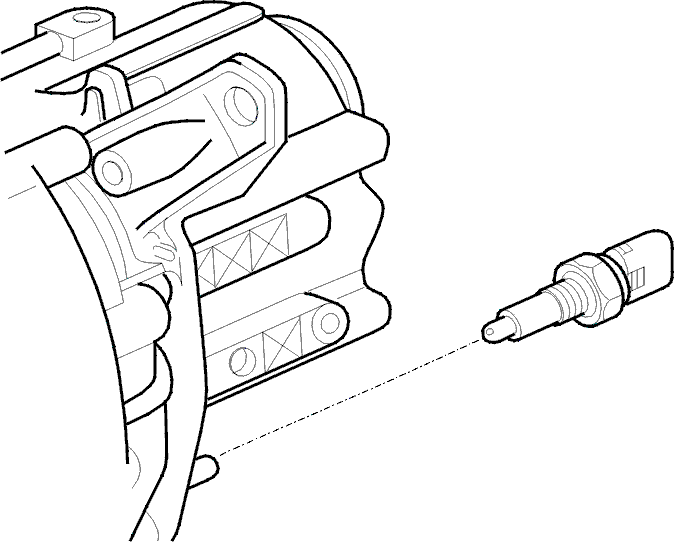

Fig 1: Replacing Back-Up (Reversing) Lamp Switch

GLL115410

Courtesy of VOLVO CARS OF NORTH AMERICA.

Manual transmission:

Disconnect the connector. Remove the back-up (reversing) lamp switch.

Reinstall the components in reverse order.

NOTE: Always use a new gasket

Check the transmission oil level.

Automatic transmission:

See TRANSMISSION - REMOVAL, REPLACEMENT AND INSTALLATION .
