Installing the ABS hydraulic modulator and the control module

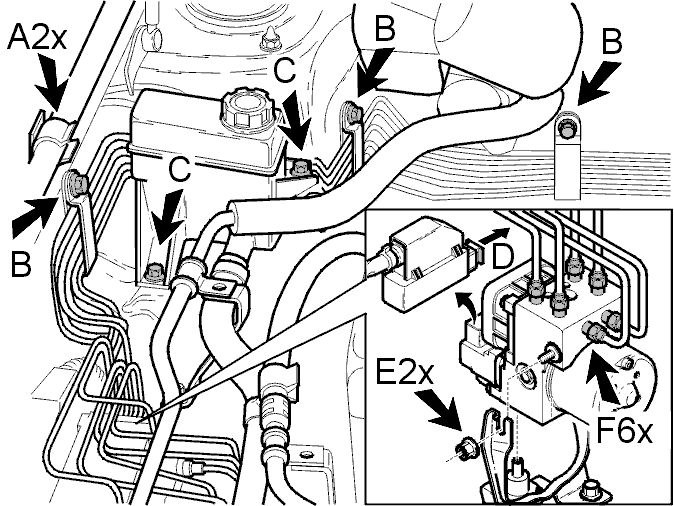

Fig 1: Removing/Installing Control Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Carefully lower the control module and ABS hydraulic modulator.

  The brake pipes will follow at the same time. Do not damage the brake pipes

• Install the 3 rubber dampers and the 2 mounting lugs
• Tighten the 2 mounting nuts. Tighten to 25 Nm  (E).

Install:

• the connector for the control module (D)
• the fluid reservoir (C) for the power steering system
• the mounting clamps (B) for the brake pipes. Ensure that the brake pipes are correctly positioned in the rubber mounting
• the hose mounting and the hoses (A).
