Remove the engine cooling fan (FC)

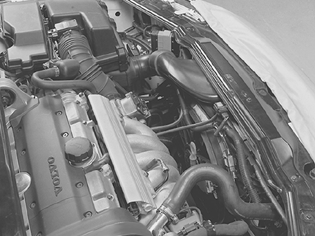

Fig 1: Identifying Engine Cooling Fan

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• slacken off the brake vacuum hose from the intake
• the air cleaner (ACL) housing intake pipe from the connection above the radiator. Twist the pipe up
• the manifold absolute pressure (MAP) sensor from the front cover plate
• the evaporative emission system (EVAP) valve from the engine cooling fan (FC) shroud
• release the wiring from the fan shroud.

Lift out the hose for the expansion tank from the holders on top of the fan shroud.

Disconnect both the engine cooling fan (FC) connectors.

• both screws holding the fan shroud.

Carefully lift up the engine cooling fan (FC).

Install radiator protection 9995474 .
