C70 Convertible

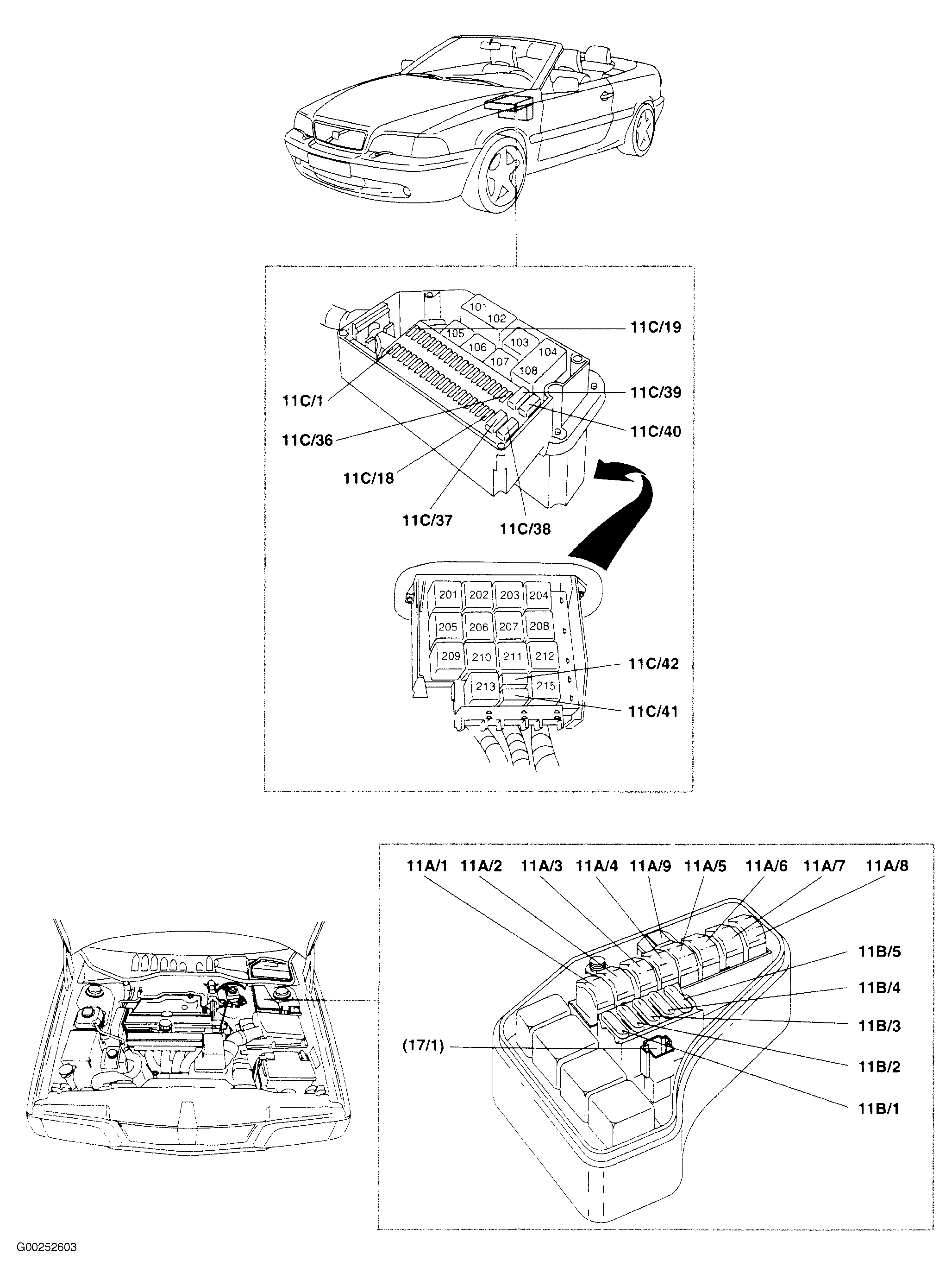

Fig 1: Locating Fuse Boxes & Fuses
G00252603Courtesy of VOLVO CARS OF NORTH AMERICA.

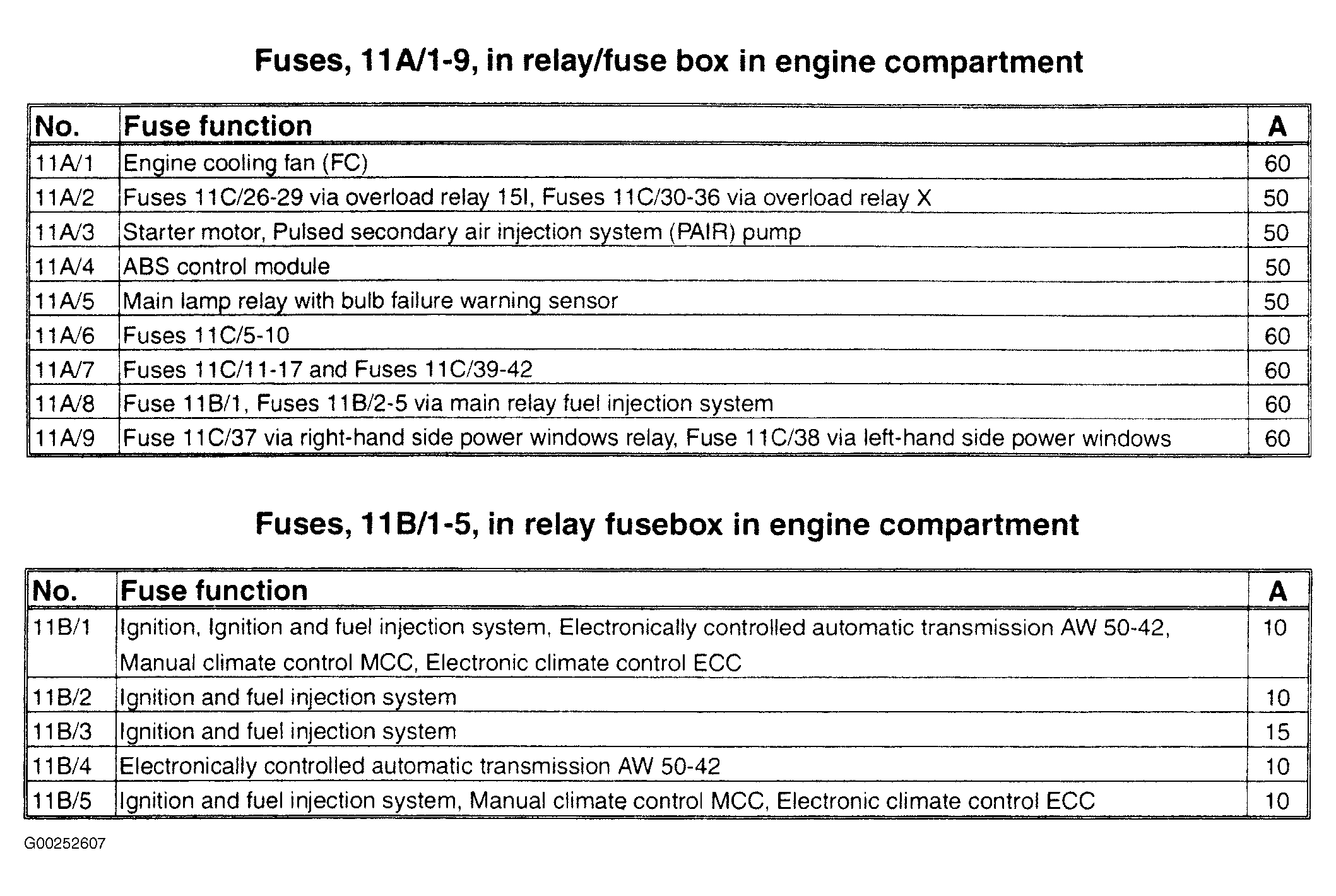

Fig 2: Fuses Legend (1 of 2)
G00252607Courtesy of VOLVO CARS OF NORTH AMERICA.

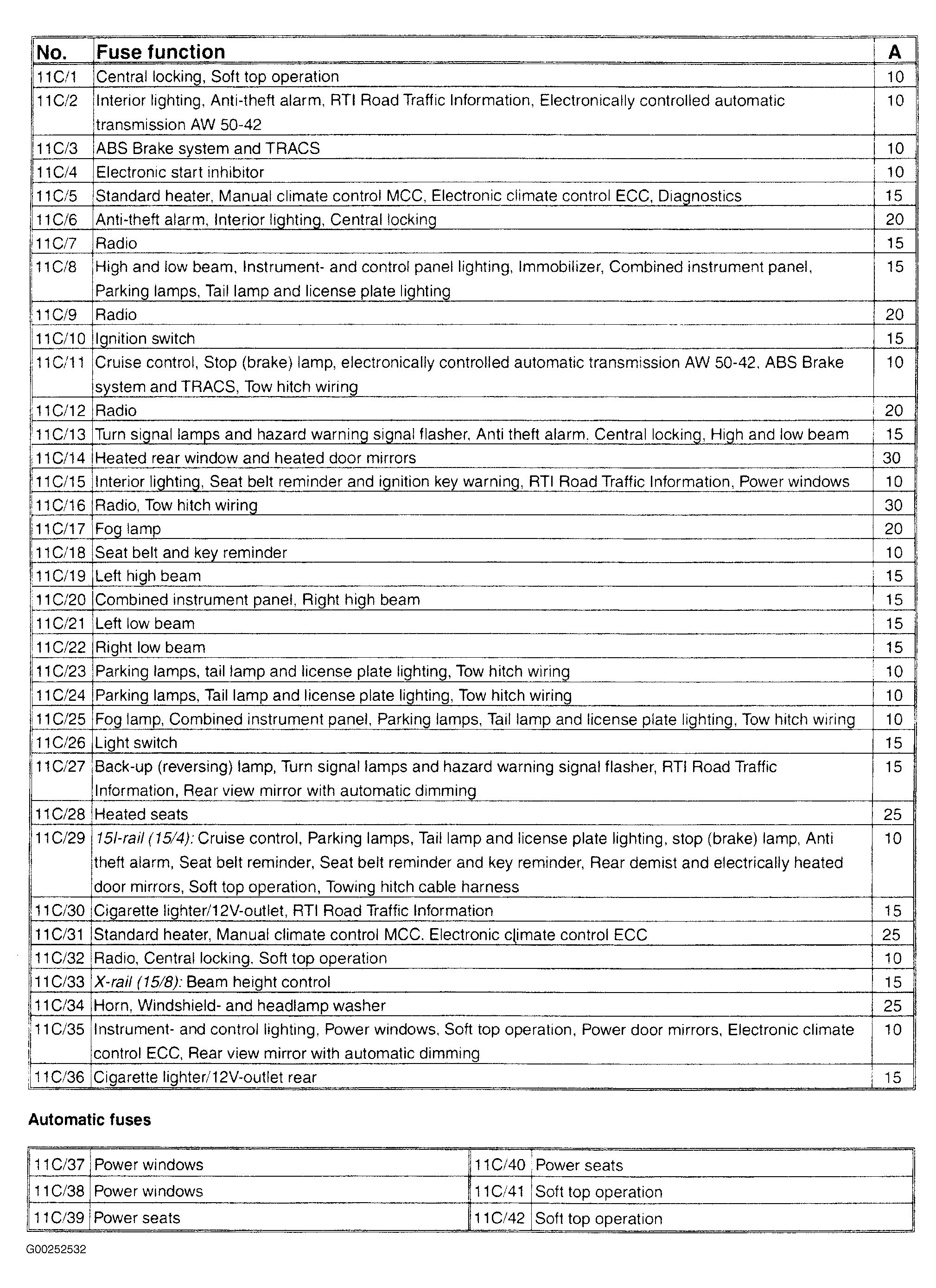

Fig 3: Fuses Legend (2 of 2)
G00252532Courtesy of VOLVO CARS OF NORTH AMERICA.
