Ignition Lock Cable: Removal

Disconnect negative battery cable.
Remove knee bolster cover underneath driver-side dashboard. See Fig 1 .

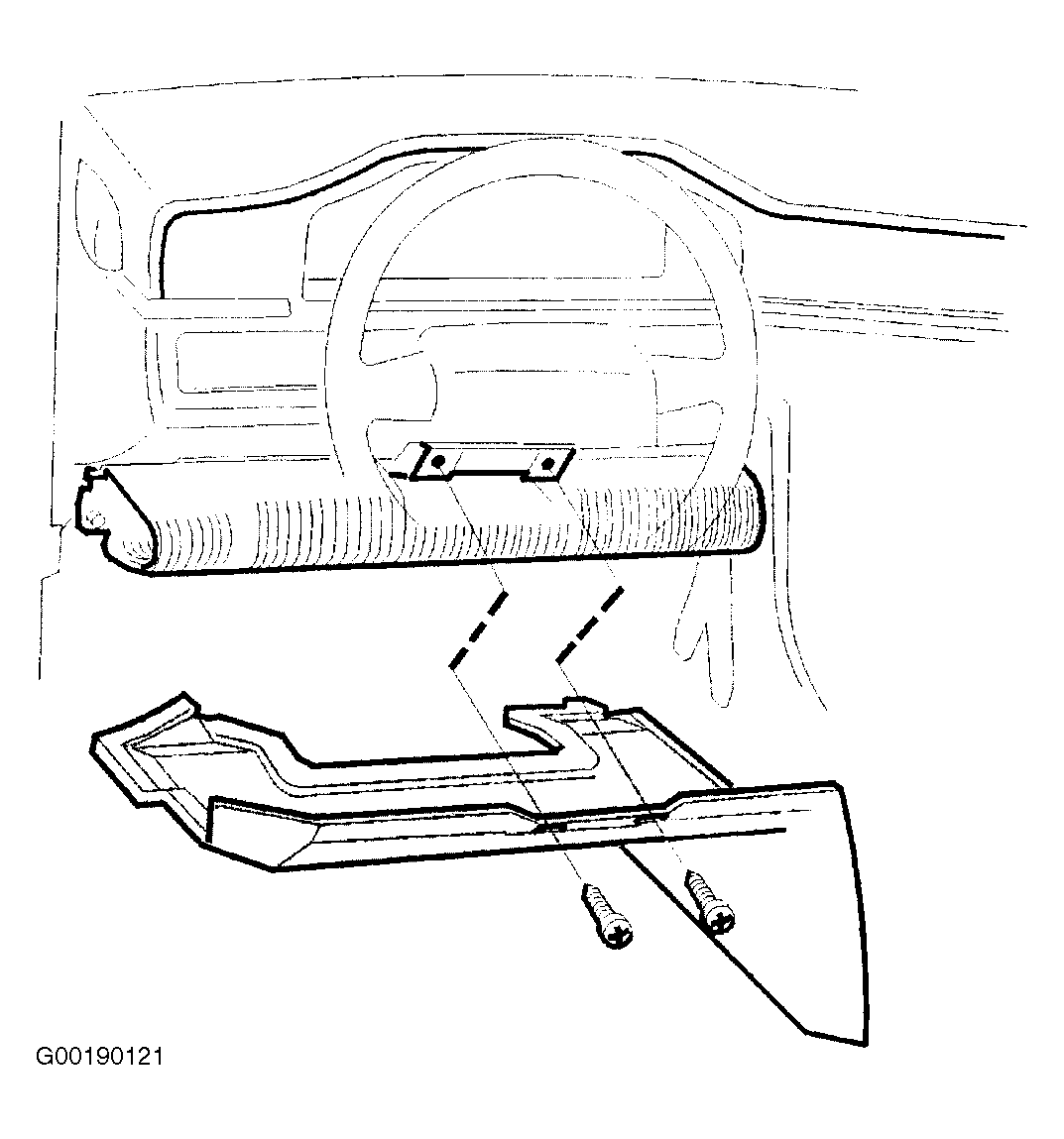

Fig 1: Removing Knee Bolster Cover
Courtesy of VOLVO CARS OF NORTH AMERICA.
Remove steering wheel adjusting lever and column covers. See Fig 2 .
Remove ash tray. Remove screws in storage compartment. Remove console mounting screws and cover under parking brake. See Fig 3 .

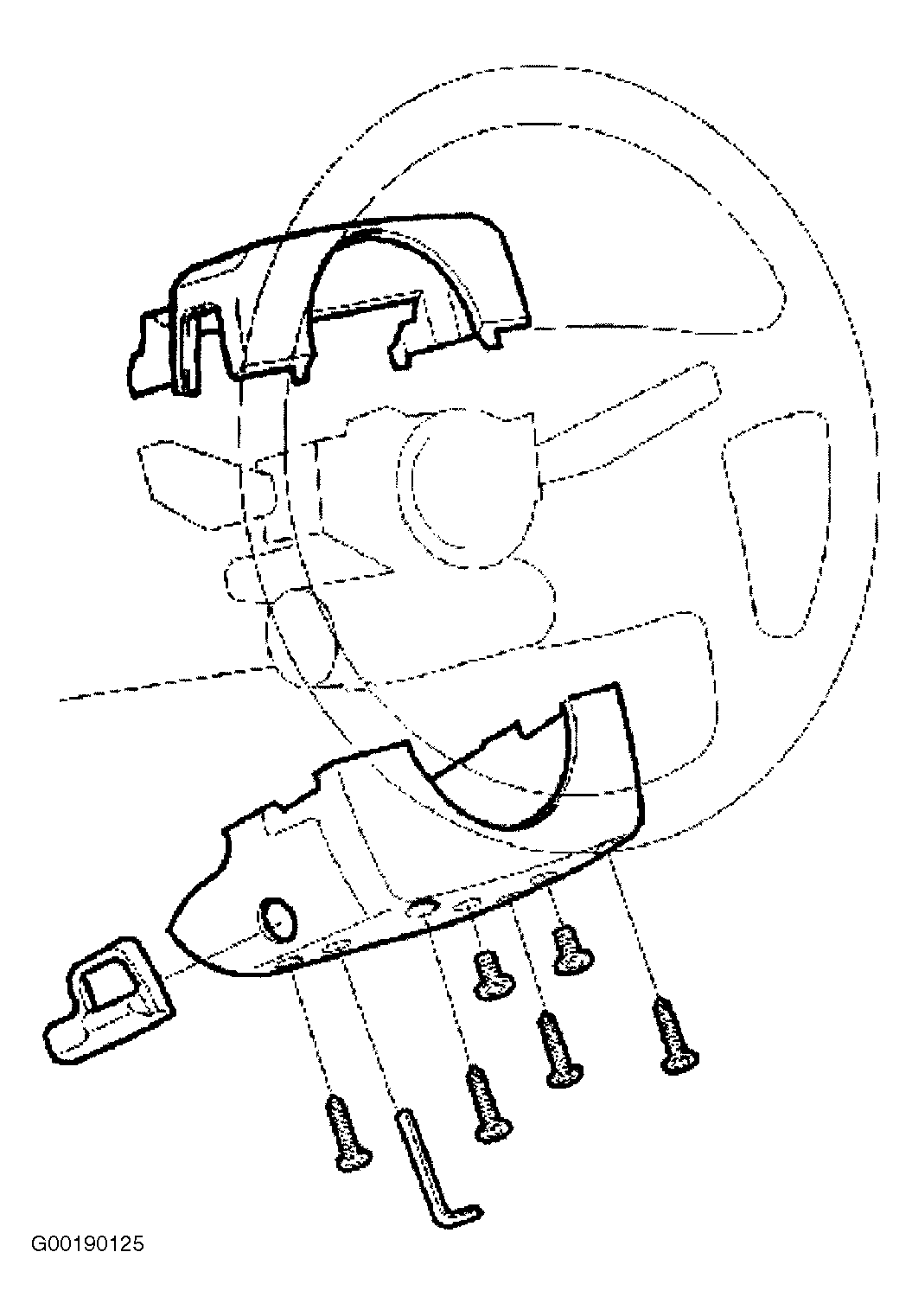

Fig 2: Removing Steering Column Covers
Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Removing Center Console Components & Ash Tray
Courtesy of VOLVO CARS OF NORTH AMERICA.
Disconnect panel connectors and remove panel from center console. Put gear selector in Park. Turn ignition key to position I or II.
Disconnect cable from ignition switch. Press in cable locking tabs and withdraw cable. Remove cable from ignition switch. See Fig 4 .
NOTE: Note ignition lock cable routing before removing.
Remove cable adjuster locking clip at gear selector lever end. Ensure that gear shift lever is in Park. Raise edge of rubber strip around gear lever and unhook cable from lever arm. Remove cable. See Fig 5 .

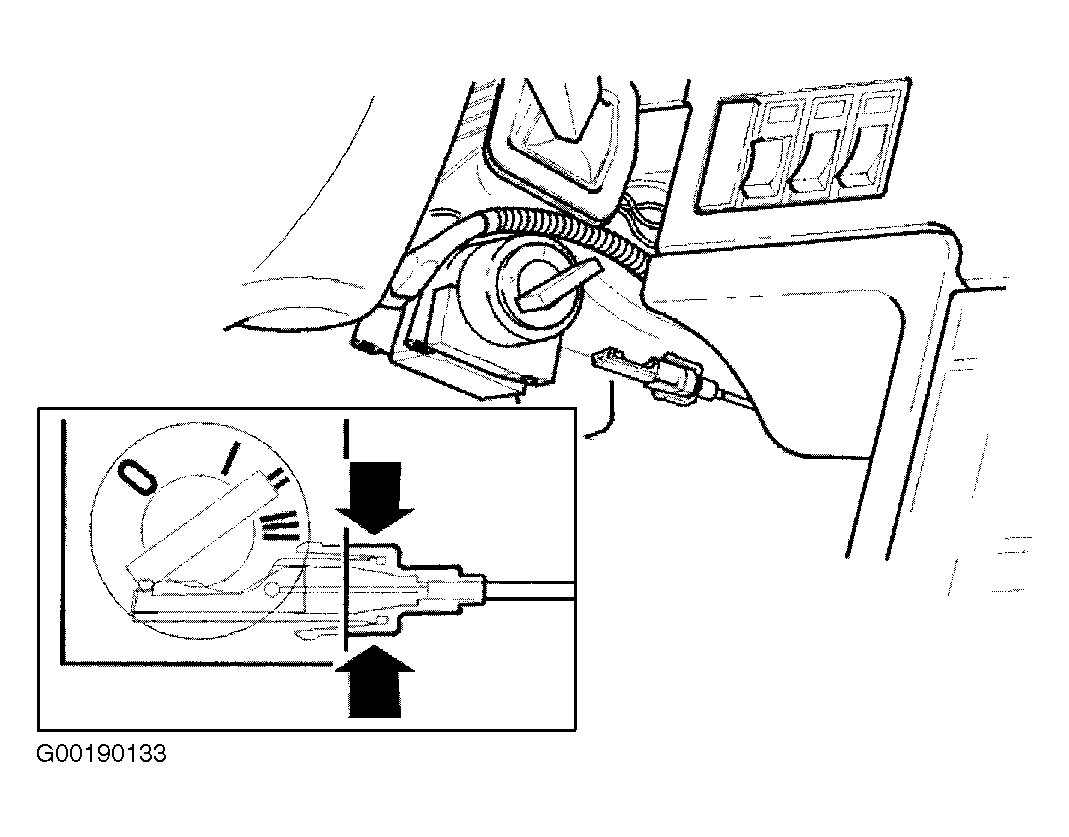

Fig 4: Disconnecting Shift Lock Cable From Ignition Switch

Courtesy of VOLVO CARS OF NORTH AMERICA.

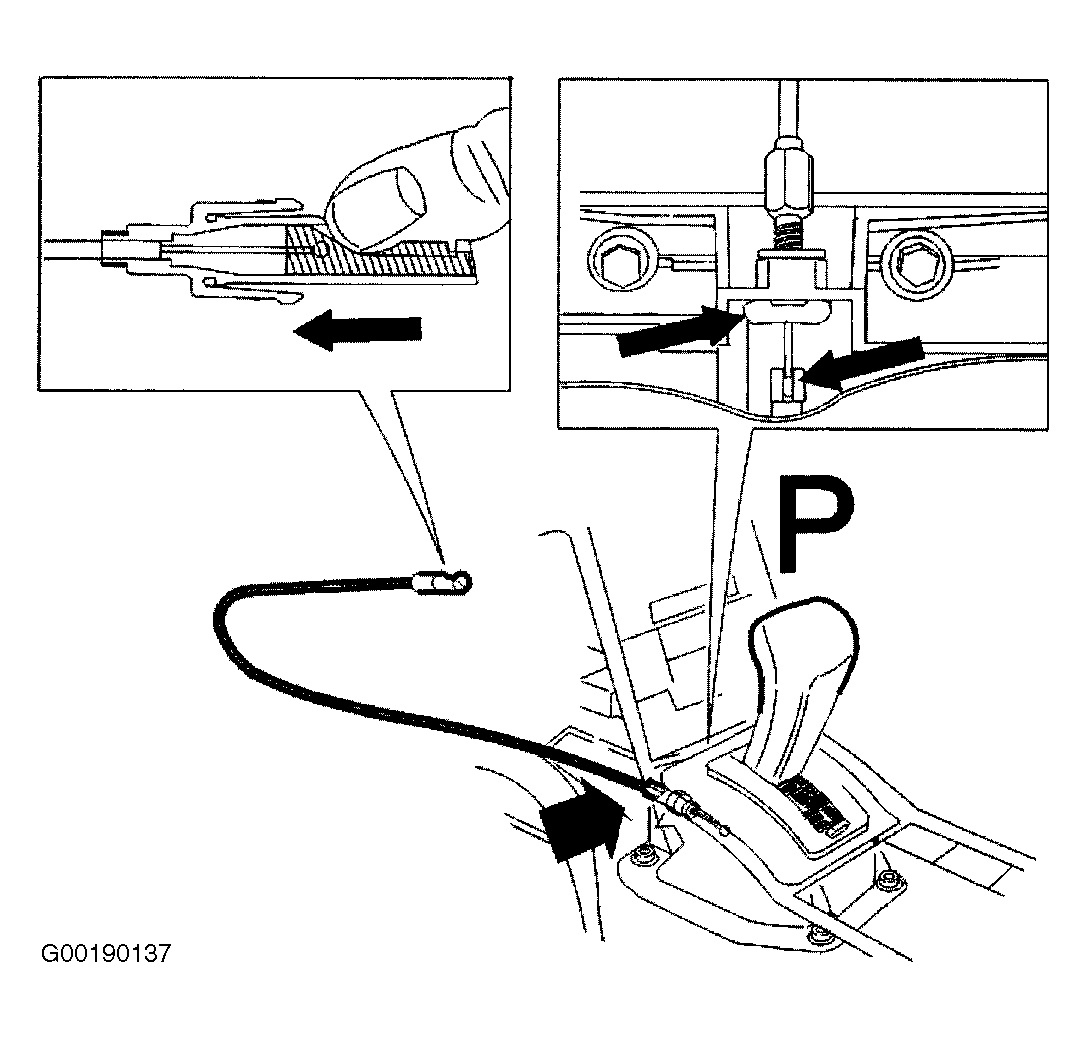

Fig 5: Disconnecting Shift Lock Cable From Gear Selector

Courtesy of VOLVO CARS OF NORTH AMERICA.
