ENGINE MANAGEMENT SYSTEM REFERENCE CHART

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 00, NO. 106, Date of Issue: January, 1997

ENGINE MANAGEMENT SYSTEM REFERENCE CHART

Model(s): 1992-97 Volvo 960

1993-97 Volvo 850

1998 Volvo C70/S70/V70

1998 Volvo S90/V90

Group: 00

Bulletin No.: 106

Date: January, 1997

SERVICE INFORMATION

The Volvo System Tester (VST) communicates with most of the vehicle's control modules by serial communication. When establishing communication with a vehicle using the VST, it is necessary to enter the vehicle's engine management system. If the incorrect engine management system is entered, the VST will read "COMMUNICATION FAILURE". When that occurs, to re-enter the system it is necessary to recycle the ignition system and the VST.

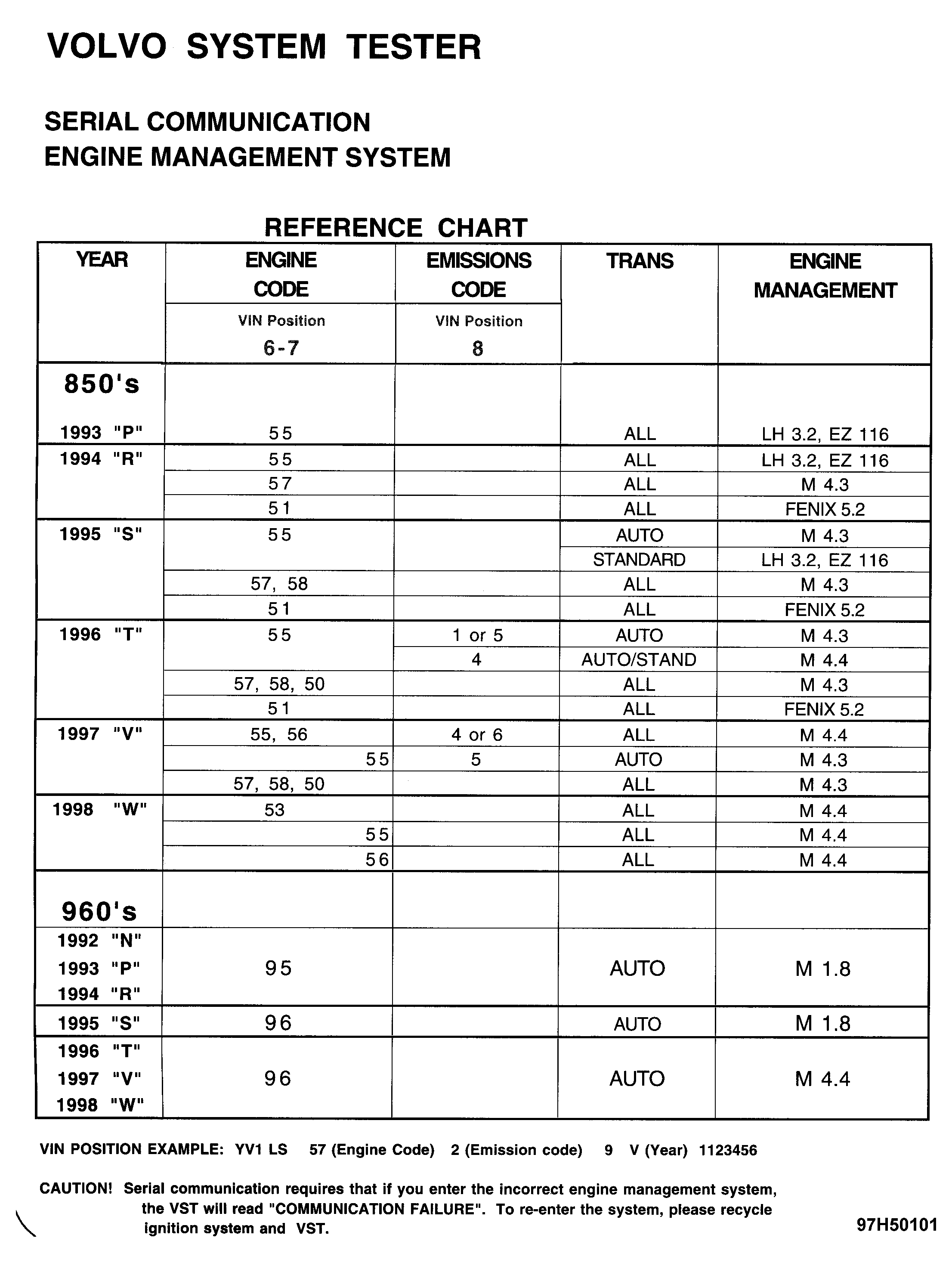

Fig 1 is an Engine Management System reference table decal which you can place on the back of your VST for quick reference. Additional quantities can be purchased by calling 1-800-25 VOLVO and referencing this bulletin.

Fig 1: Engine Management System - Reference Table Decal
