Removal & Installation (C/S/V70, AWD Models)

1. Raise and support vehicle. Locate EVAP canister on top of rear subframe. See Fig 1.
2. Disconnect inlet and outlet hoses from EVAP canister by pressing inward on their catches while pulling hose away from canister.
3. Remove clamp from canister shut-off valve. Squeeze clamp with a wrench to hold in place. Pry apart using a small screwdriver. Pull hose and rubber mount with EVAP canister shut-off valve from EVAP canister bracket. Remove front and rear bracket bolts. See Fig 1.
4. Remove EVAP canister.
5. Follow reverse order to install. Ensure all hose catches are fully engaged.

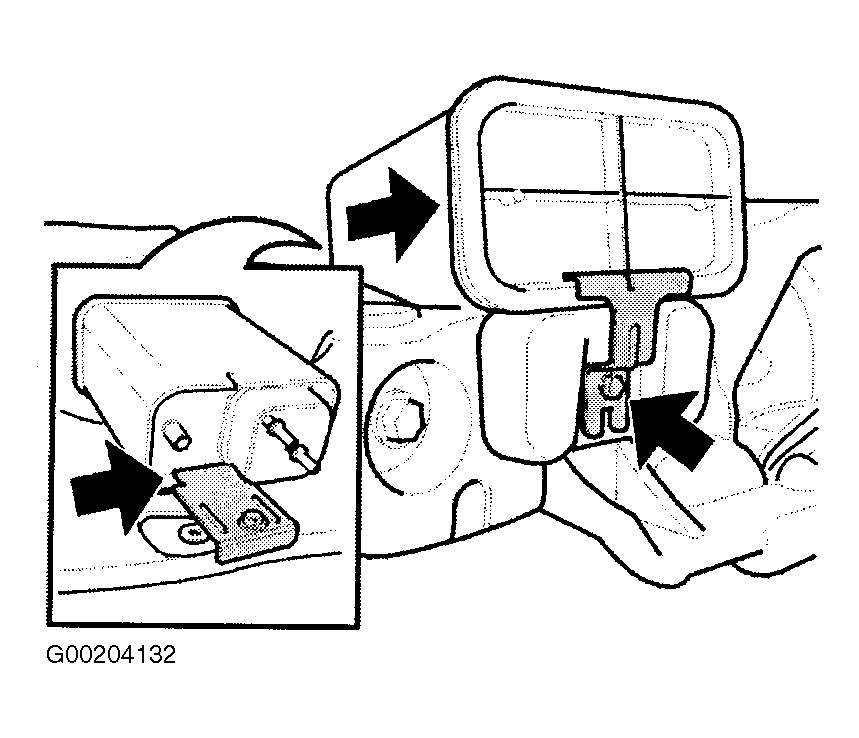

Fig 1: Removing EVAP Canister From Rear Subframe (AWD Models)

Courtesy of VOLVO CARS OF NORTH AMERICA.
