Removal & Installation
- Fuel pump is located in fuel tank. Release fuel pressure. See FUEL SYSTEM PRESSURE RELEASE . On station wagon models, lift luggage compartment floor cover and fold back carpet. On sedan models, tilt right rear seat forward. On all models, remove luggage compartment carpet and right wheel housing panel.NOTE: On some versions with a soft panel, it may be sufficient to fold back a corner of the panel.

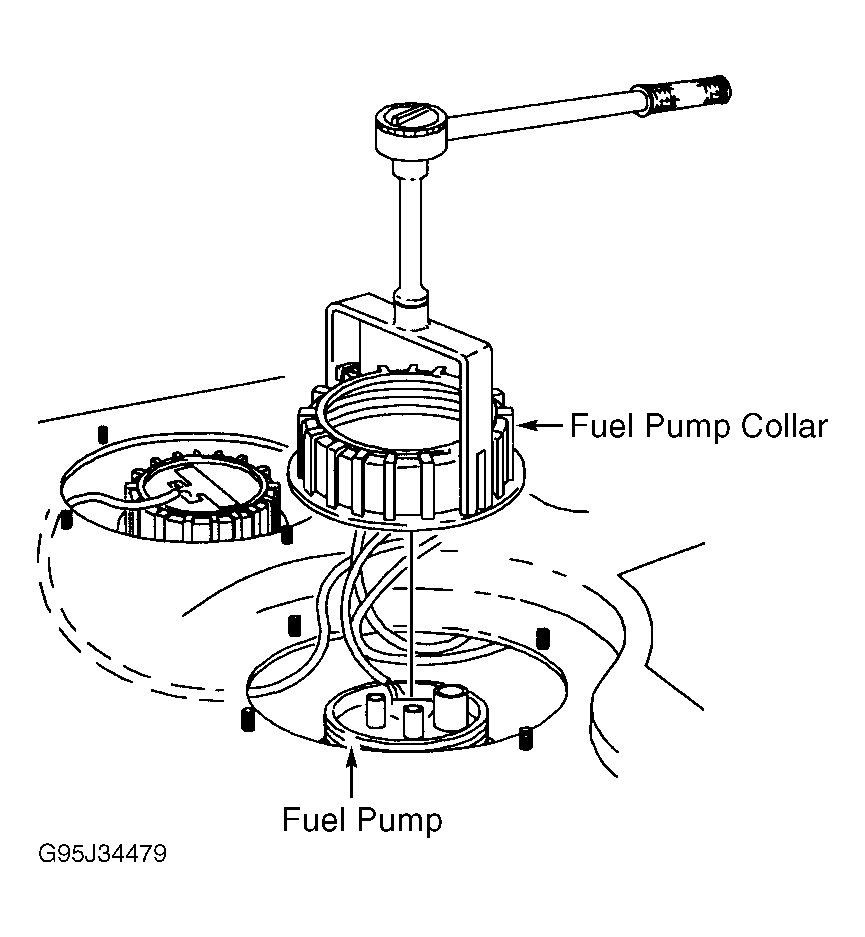

- Remove cover above fuel pump collar. Disconnect fuel pump connector. Carefully disconnect quick-release couplings on delivery and return lines. Remove fuel pump collar. Lift out fuel pump. Remove rubber seal. To install, reverse removal procedure. Tighten fuel pump nut to specification. See TORQUE SPECIFICATIONS .
WARNING:
If fuel pump is removed for a long period of time, reinstall fuel pump collar to avoid tank swelling. If collar is not reinstalled, it may be difficult to install at a later time.
