Checking For An Open-Circuit

Check cable between data link connector (DLC) terminal 4 and ground terminal for an open-circuit according to Open-Circuit, Permanent Faults .

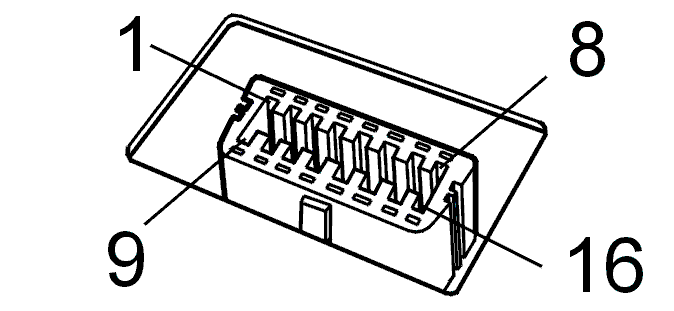

Fig 1: Identifying Data Link Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Identifying Ohmmeter

Courtesy of VOLVO CARS OF NORTH AMERICA.

Select "Continue" when the fault has been remedied.

• Continue

  Refer to Verification

Check cable between data link connector (DLC) terminal 5 and ground terminal for an open-circuit according to Open-Circuit, Permanent Faults .

For further information, refer to Service Information Section 3 (39), Wiring diagrams.

Fig 1: Identifying Data Link Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Identifying Ohmmeter

Courtesy of VOLVO CARS OF NORTH AMERICA.

Select "Continue" when the fault has been remedied.

• Continue

  Refer to Verification
