Identification Plate

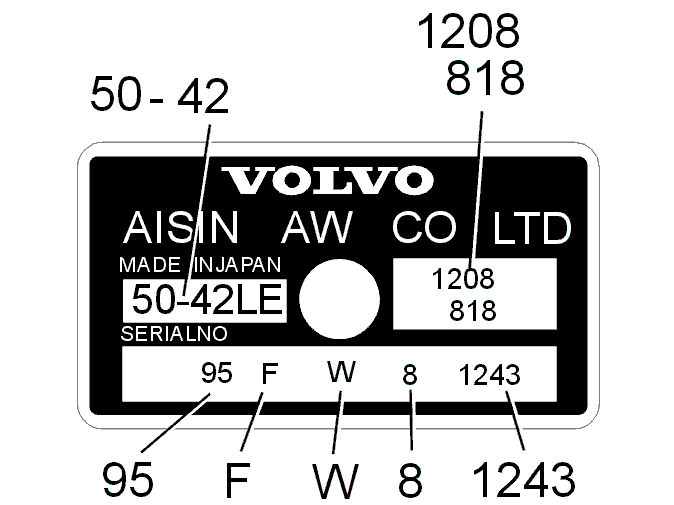

Fig 1: Identifying Identification Plate

Courtesy of VOLVO CARS OF NORTH AMERICA.

Example:

50-42LE = Transmission designation

1208818 = Volvo Part Number

95 = Year of manufacture

F = manufactured in June (A= January and so on.)

W = 50-42LE transmission*

8 = Transmission manufactured for Volvo

1243 = manufacturing number, starting with 0001 each month.

*) LE indicates that the transmission has a lock-up function and is electronically controlled.

This transmission is an AW50-42, manufactured in June 1995. (Used with engines B5254S, B5252S.)
