Removing cover

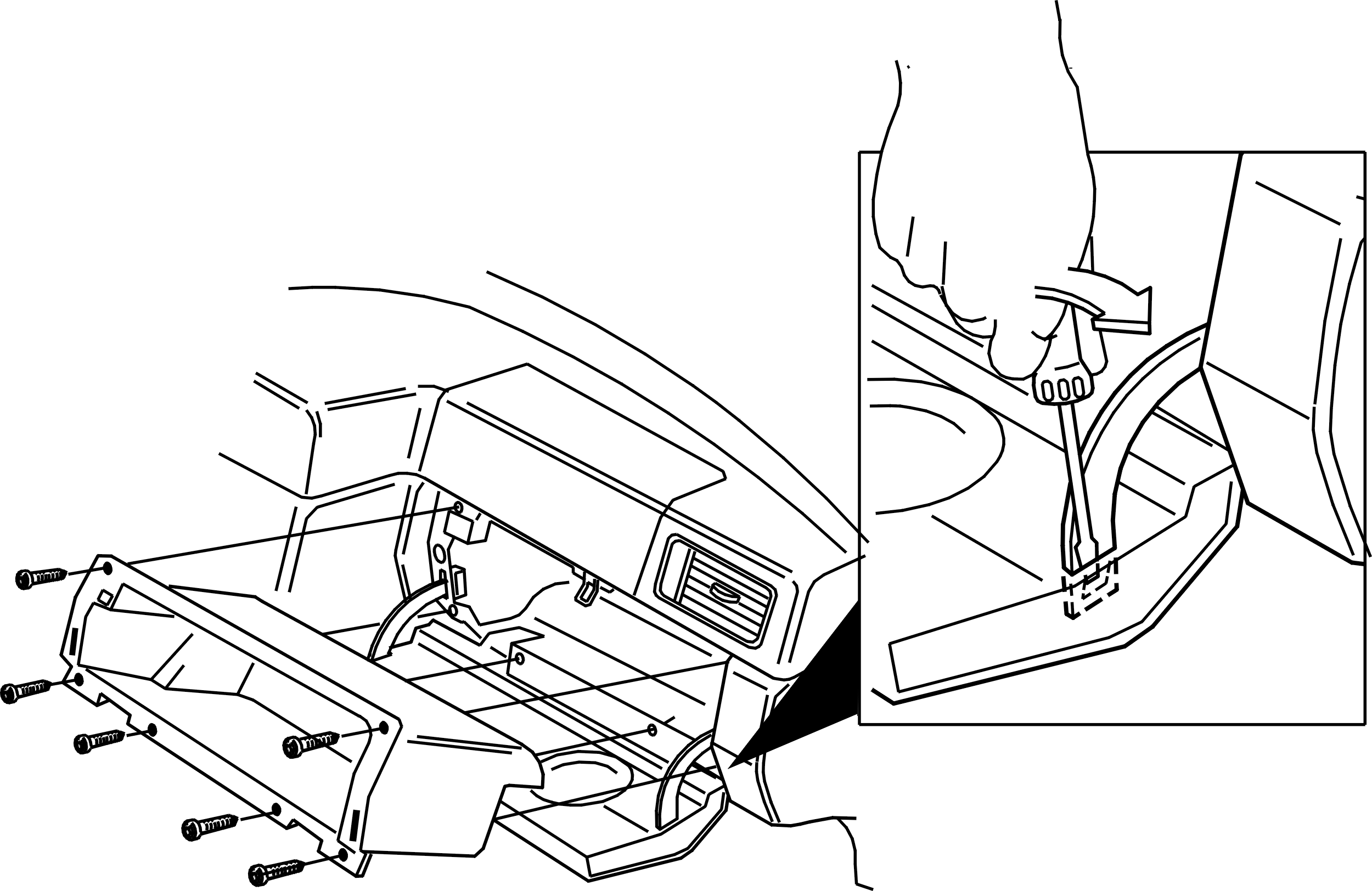

Fig 1: Removing Glove Compartment Holders & Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove glove compartment holders.
Remove the six screws holding the glove compartment and remove the glove compartment.

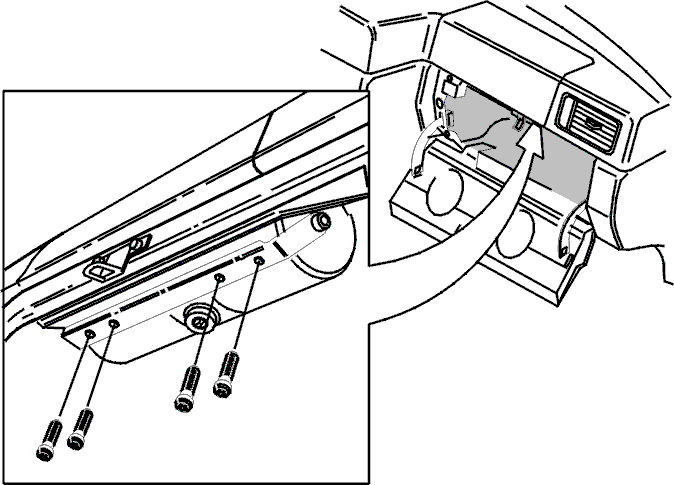

Fig 2: Identifying Mounting Screws (Passenger Airbag Fitted)

Courtesy of VOLVO CARS OF NORTH AMERICA.

If a passenger-side airbag is fitted, remove the 4 mounting screws from the underneath of the module.

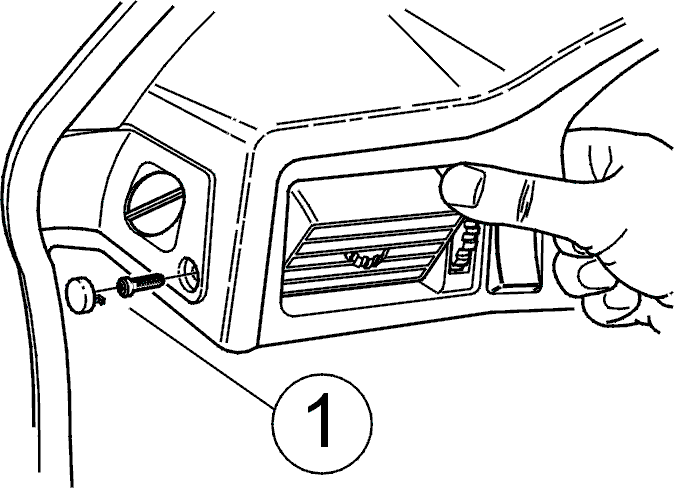

Fig 3: Removing Cover Washers & Screws To Side Defroster Vents

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove cover washers and screws to side defroster vents.
Remove panel vents as follows: turn down and pull out or pry off gently with a screwdriver at the side and pull out. Remove both vent and air duct on RH side.

Fig 4: Identifying Speaker Grills, Plastic Plugs & Speakers

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove speaker grills on both sides.
Remove speakers. Push plastic plugs down in center.
Undo connector.

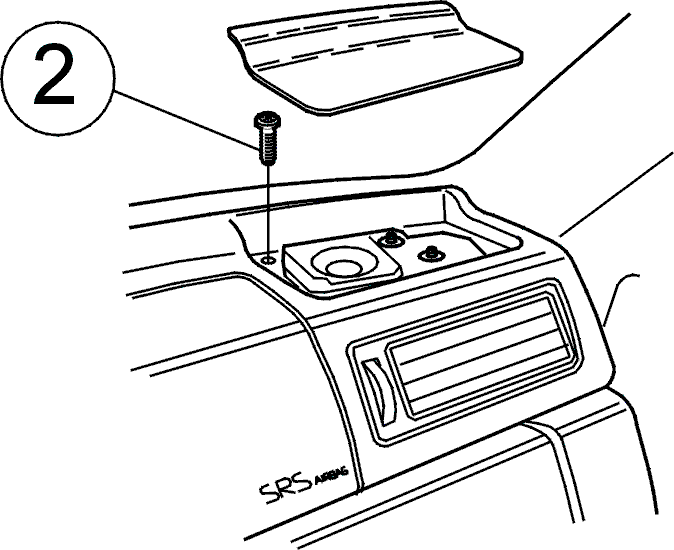

Fig 5: Identifying Cover Panel Mounting Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Unscrew the 12 mounting screws holding the cover panel. Cars fitted with passenger-side airbags have a screw missing at the top of the glove compartment. Cars not fitted with passenger-side airbags have a screw missing at the top by the RH speaker (marked 2 in figure).
Lift cover panel off carefully.

Once you have removed the cover panel, you can connect the test box and use it for fault-tracing with the dashboard.

Fig 6: Identifying Mounting Screws (Passenger Airbag Fitted)

Courtesy of VOLVO CARS OF NORTH AMERICA.

If a passenger-side airbag is fitted, remove the 4 mounting screws from the underneath of the module.

Fig 7: Removing Cover Washers & Screws To Side Defroster Vents

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove cover washers and screws to side defroster vents.
Remove panel vents as follows: turn down and pull out or pry off gently with a screwdriver at the side and pull out. Remove both vent and air duct on RH side.

Fig 8: Identifying Speaker Grills, Plastic Plugs & Speakers

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove speaker grills on both sides.
Remove speakers. Push plastic plugs down in center.
Undo connector.

Fig 9: Identifying Cover Panel Mounting Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Unscrew the 12 mounting screws holding the cover panel. Cars fitted with passenger-side airbags have a screw missing at the top of the glove compartment. Cars not fitted with passenger-side airbags have a screw missing at the top by the RH speaker (marked 2 in figure).
Lift cover panel off carefully.

Once you have removed the cover panel, you can connect the test box and use it for fault-tracing with the dashboard.

Fig 10: Removing Cover Washers & Screws To Side Defroster Vents

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove cover washers and screws to side defroster vents.
Remove panel vents as follows: turn down and pull out or pry off gently with a screwdriver at the side and pull out. Remove both vent and air duct on RH side.

Fig 11: Identifying Speaker Grills, Plastic Plugs & Speakers

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove speaker grills on both sides.
Remove speakers. Push plastic plugs down in center.
Undo connector.

Fig 12: Identifying Cover Panel Mounting Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Unscrew the 12 mounting screws holding the cover panel. Cars fitted with passenger-side airbags have a screw missing at the top of the glove compartment. Cars not fitted with passenger-side airbags have a screw missing at the top by the RH speaker (marked 2 in figure).
Lift cover panel off carefully.

Once you have removed the cover panel, you can connect the test box and use it for fault-tracing with the dashboard.

Fig 13: Identifying Speaker Grills, Plastic Plugs & Speakers

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove speaker grills on both sides.
Remove speakers. Push plastic plugs down in center.
Undo connector.

Fig 14: Identifying Cover Panel Mounting Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Unscrew the 12 mounting screws holding the cover panel. Cars fitted with passenger-side airbags have a screw missing at the top of the glove compartment. Cars not fitted with passenger-side airbags have a screw missing at the top by the RH speaker (marked 2 in figure).
Lift cover panel off carefully.

Once you have removed the cover panel, you can connect the test box and use it for fault-tracing with the dashboard.

Fig 15: Identifying Cover Panel Mounting Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Unscrew the 12 mounting screws holding the cover panel. Cars fitted with passenger-side airbags have a screw missing at the top of the glove compartment. Cars not fitted with passenger-side airbags have a screw missing at the top by the RH speaker (marked 2 in figure).
Lift cover panel off carefully.

Once you have removed the cover panel, you can connect the test box and use it for fault-tracing with the dashboard.
