Dashboard, removal/replacement

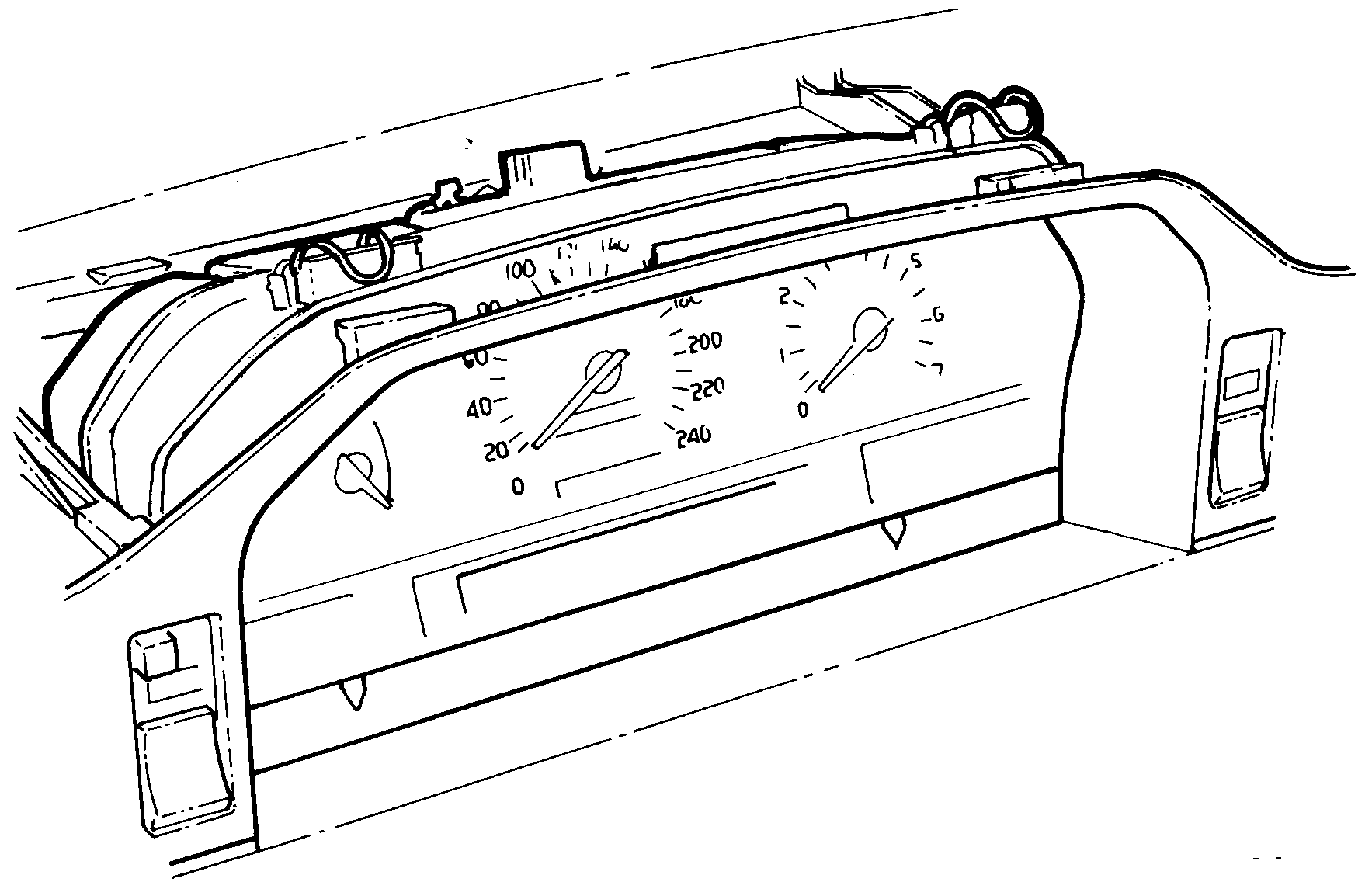

Fig 1: Locating Dashboard

GLL122043

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove both dashboard connectors and the connector to trip computer if any.
Undo both clip-on locks at the top and lift the dashboard out.
