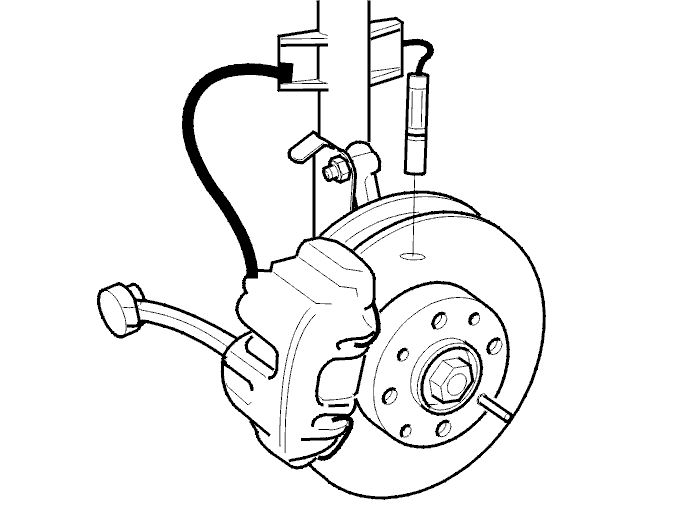

Installing sensor
Courtesy of VOLVO CARS OF NORTH AMERICA.
- Clean sensor seat free of dust and rust so sensor ends up in right position relative to pulse wheel.
- Brush any dirt off of pulse wheel. Use a soft brush.
- Install sensor and tighten bolt to 10 Nm (7.5 ft.lb).
- Install connector.
