Component Locations

COMPONENT IDENTIFICATION

Component Number

Component Name

2/11

Engine Cooling Fan Relay

4/6

Electronic Climate Control Module

4/40

Manual Climate Control Module

4/46

ECM

6/29

Engine Cooling Fan

7/8

A/C Linear Pressure Sensor

7/53

A/C Low Pressure Switch

11A

Main Fuses At Battery

31/64

Engine Cooling Fan Ground Terminal

⁽⁾	For component locations, see Fig 1 -Fig 3 .

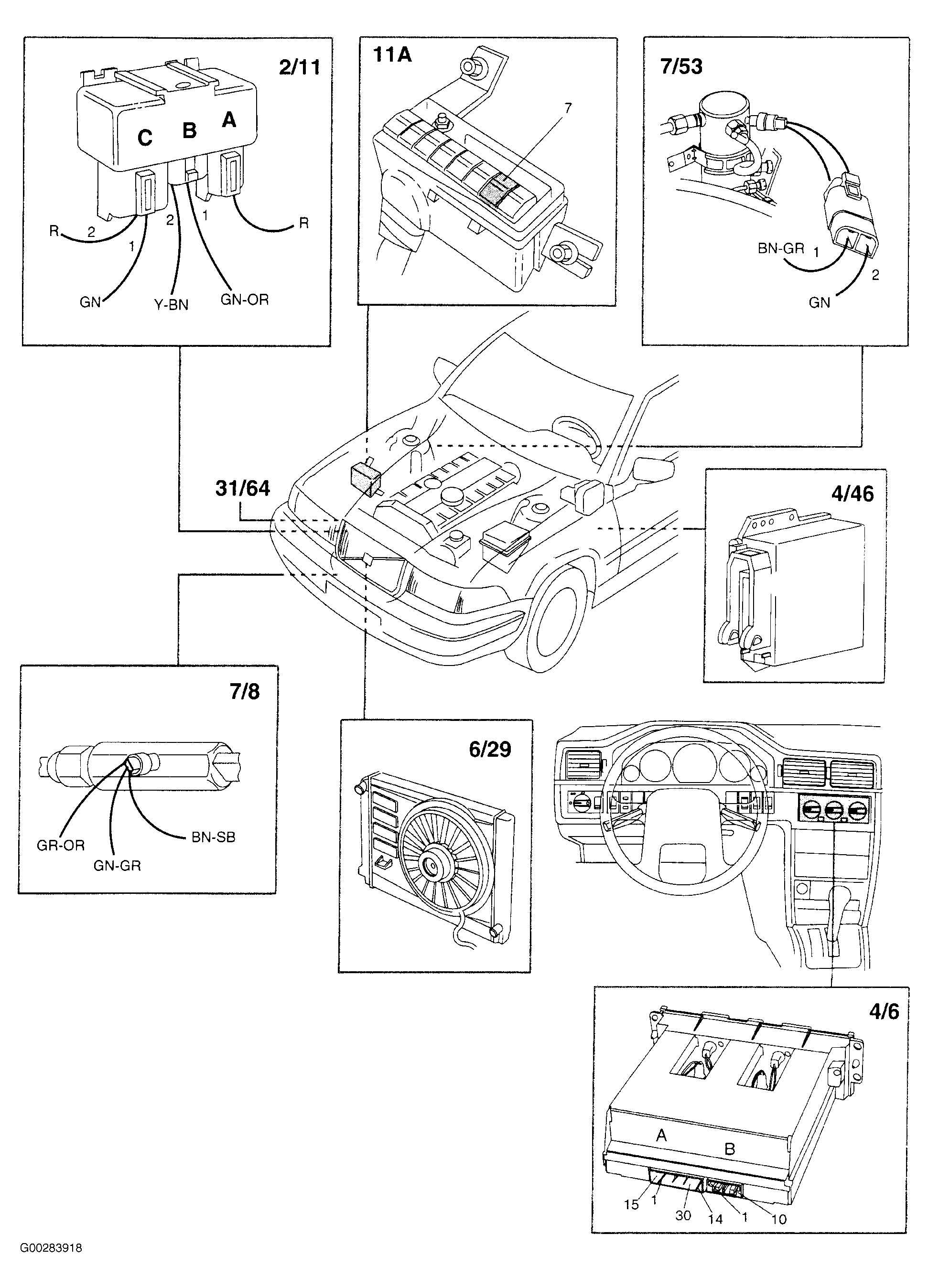

Fig 1: Identifying Electric Cooling Fan Components (1996)

Courtesy of VOLVO CARS OF NORTH AMERICA.

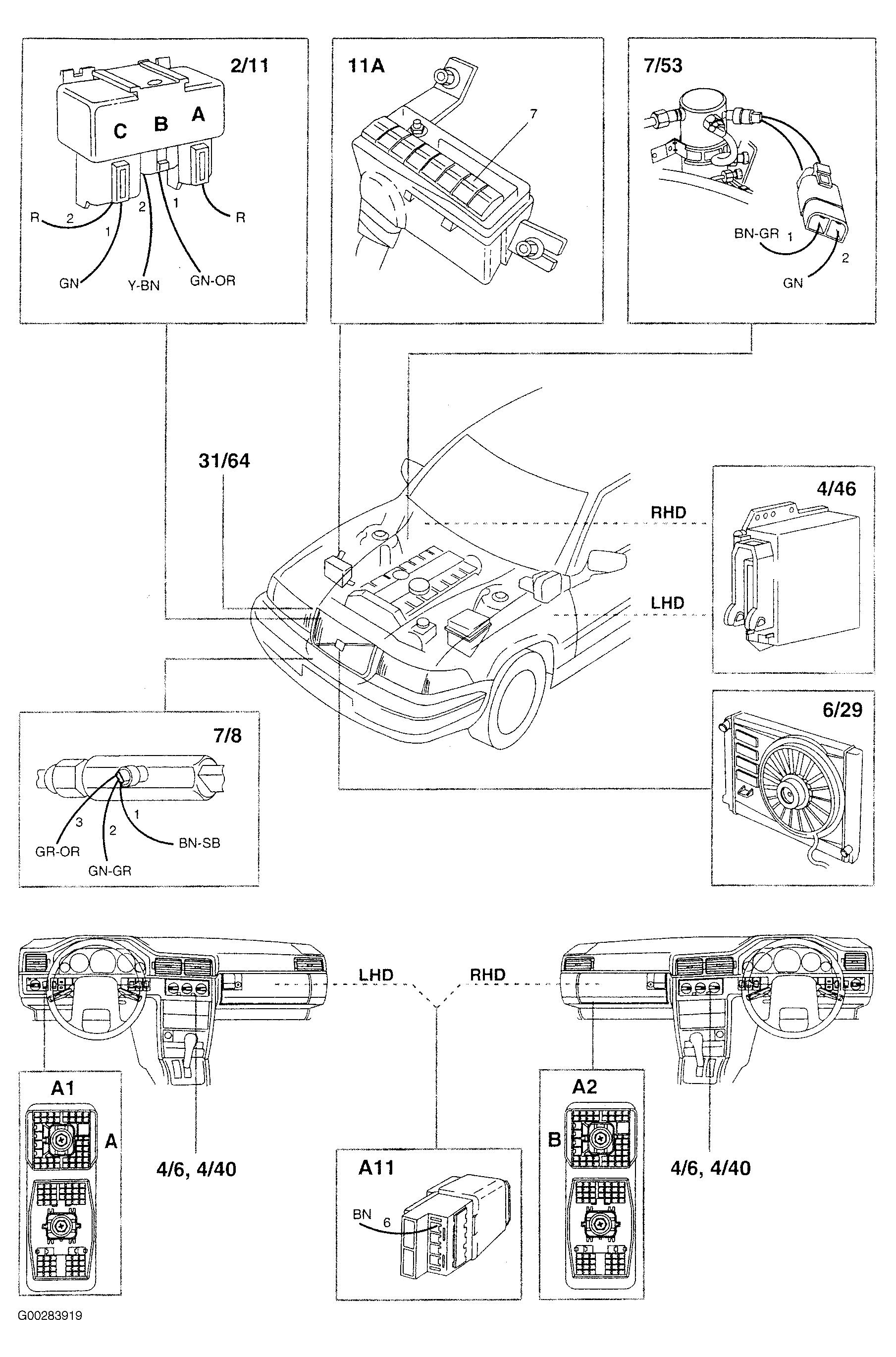

Fig 2: Identifying Electric Cooling Fan Components (1997-98)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Identifying Engine Cooling Fan Relay Connectors
