Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Module | Behind right side of dash, near kick panel. |
| ABS Hydraulic Unit | On right side of engine compartment, beside main fuse box. |
| Transmission Control Module | Behind center of dash, right of steering column. |

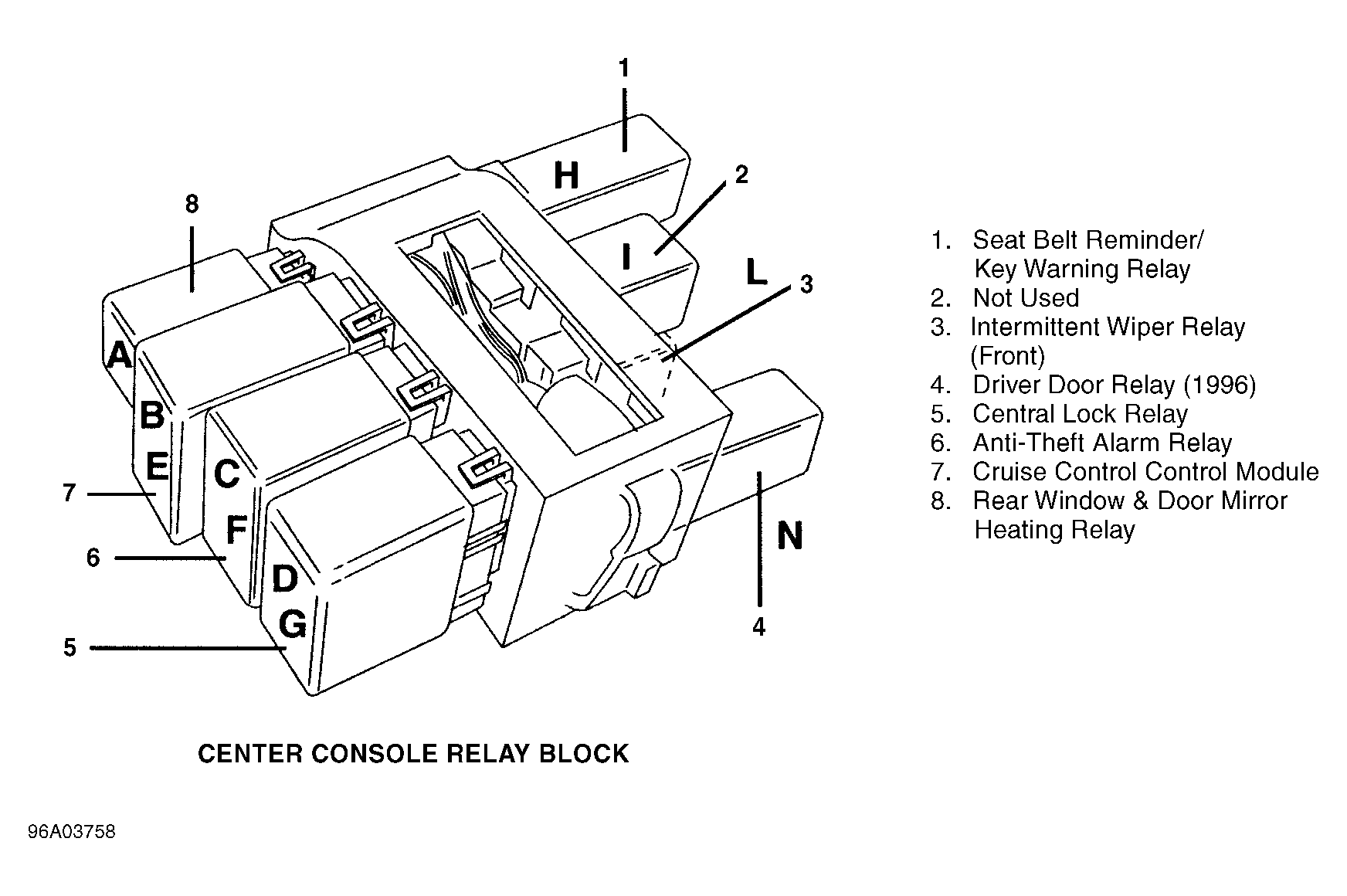

| Cruise Control, Control Module | On center console relay block. See Figure . |
| Electronic Climate Control, Control Module | Integrated with A/C control panel. |
| Engine Control Module | Behind left kick panel. |
| Heated Seat Control Units (2) | Under driver's & passenger's seats. |

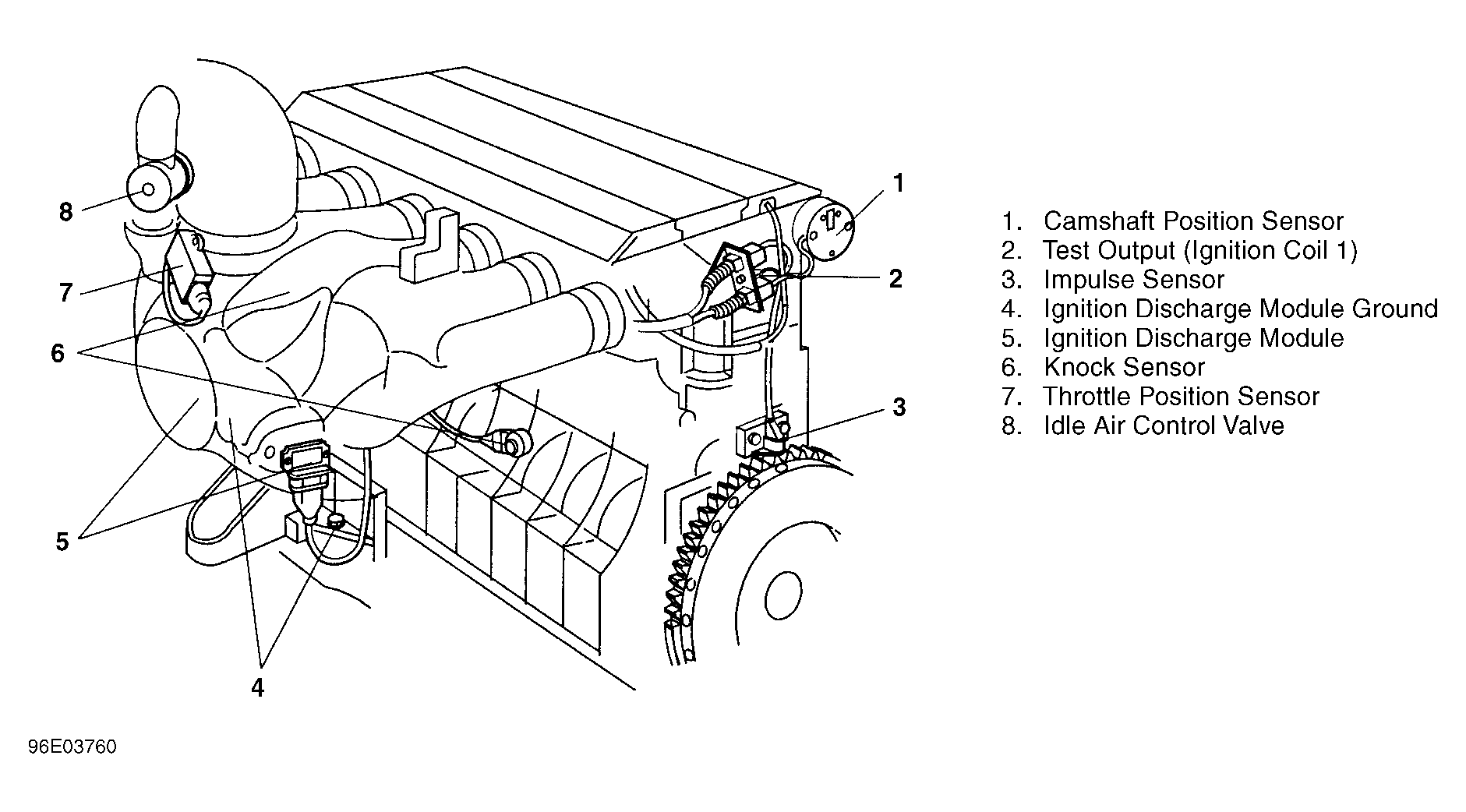

| Ignition Discharge Module | On side of intake manifold, near throttle position sensor. See Figure . |

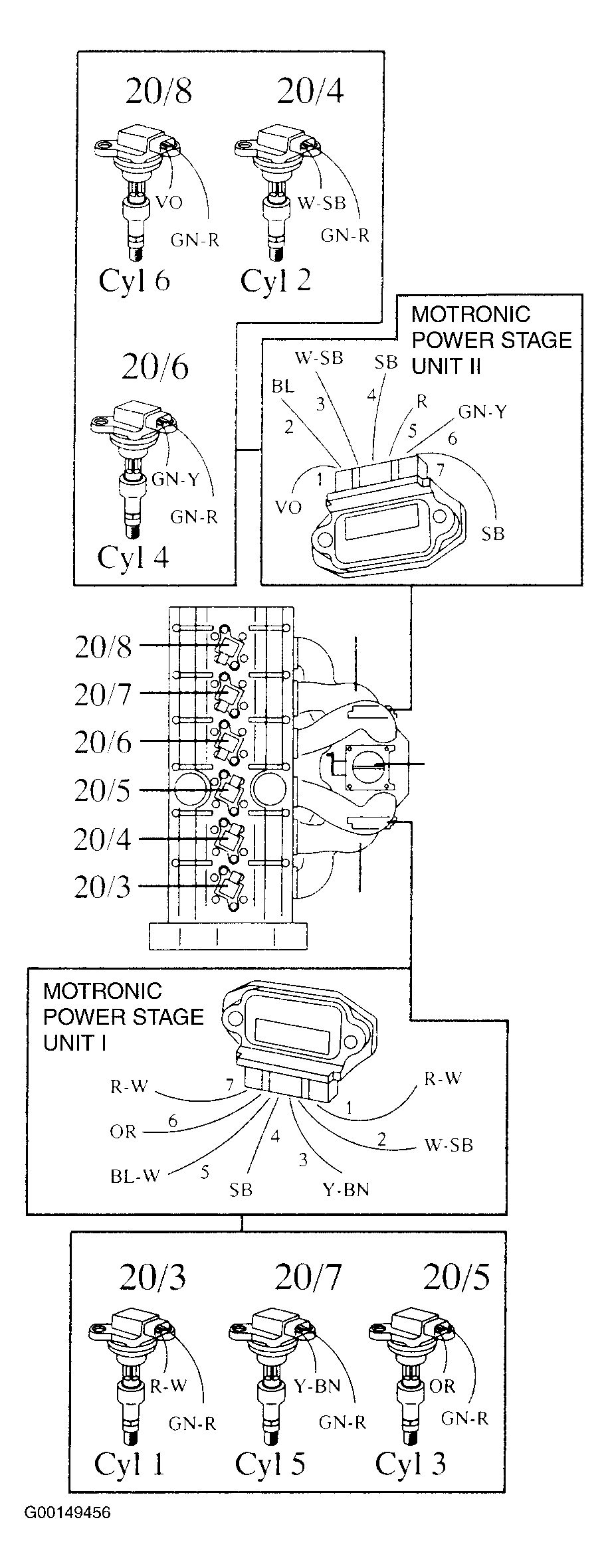

| Motronic Power Stage Units I & II | Left side of engine, under intake manifold. See Figure . |
| Power Memory Seat Control Unit | Under driver's seat. |
| Remote Control Central Locking & Car Alarm Control Module | Behind dash, left of steering column. |
