Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location

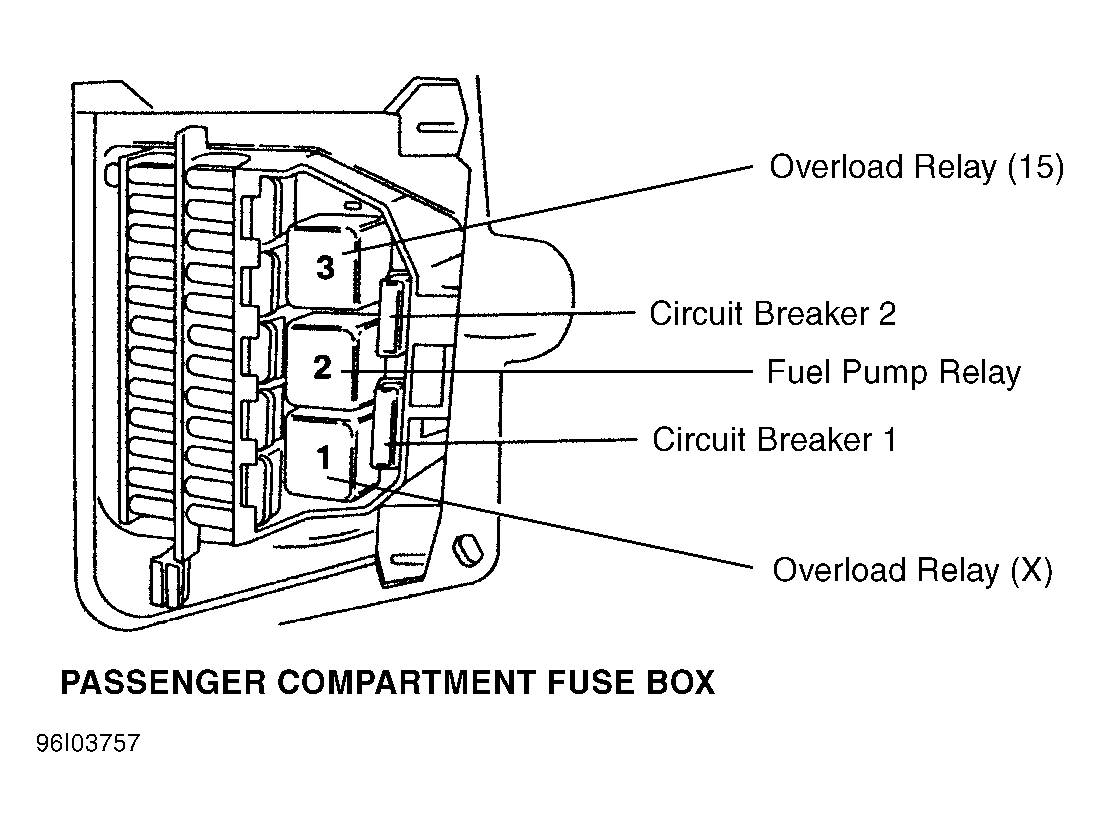

Circuit Breaker 1 On passenger compartment fuse box, left corner of dash. See Figure .
Circuit Breaker 2 On passenger compartment fuse box, left corner of dash. See Figure .
Engine Compartment Relay/Fuse Box On left side of engine compartment. See Figure .
Main Fuse Box On right side of engine compartment, near battery. See Figure .
Passenger Compartment Fuse Box On left corner of dash.
