Combination Switch & Wiper Switch: Removal

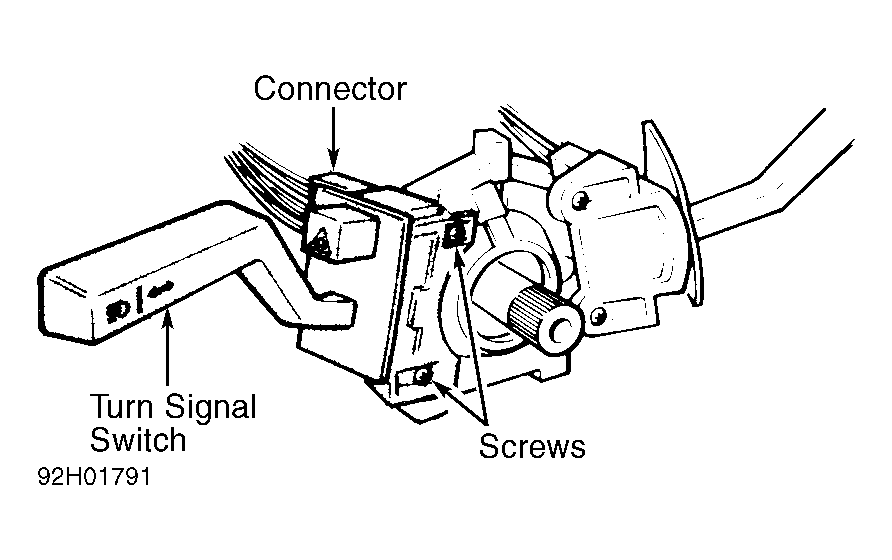

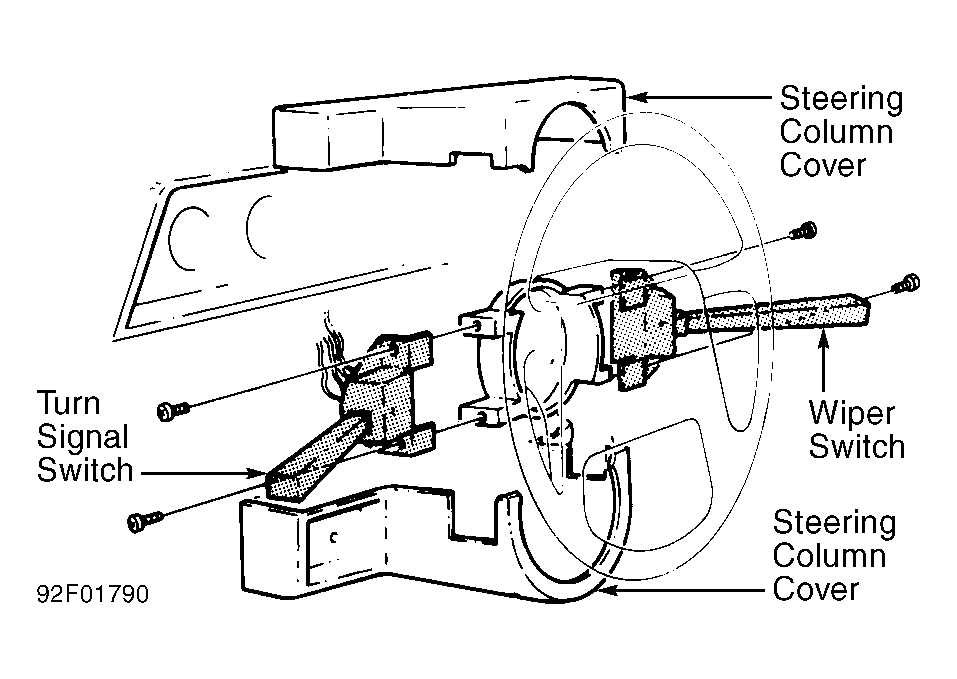

Remove steering wheel. See STEERING WHEEL & AIR BAG MODULE  . Remove upper and lower steering column covers. See Figure . Disconnect switch harness connectors behind instrument panel, near steering column. Remove switch attaching screws. See Figure and Figure . Remove switch and harness.
