Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

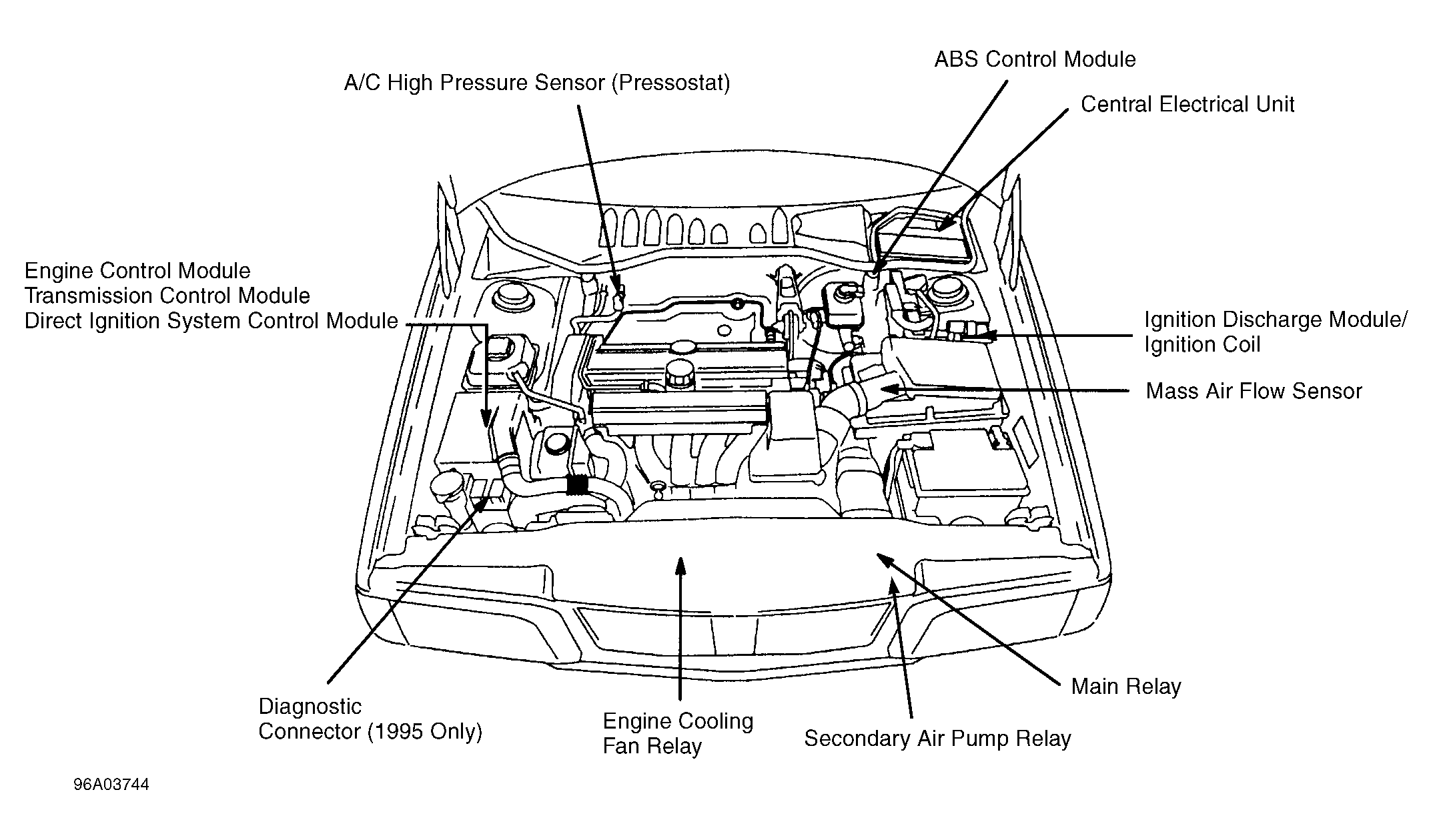

| ABS Control Module | On left rear of engine compartment, above ABS hydraulic unit. See Figure . |
| Anti-Theft Alarm/Central Lock Remote Control Module | Behind right side of dash. |

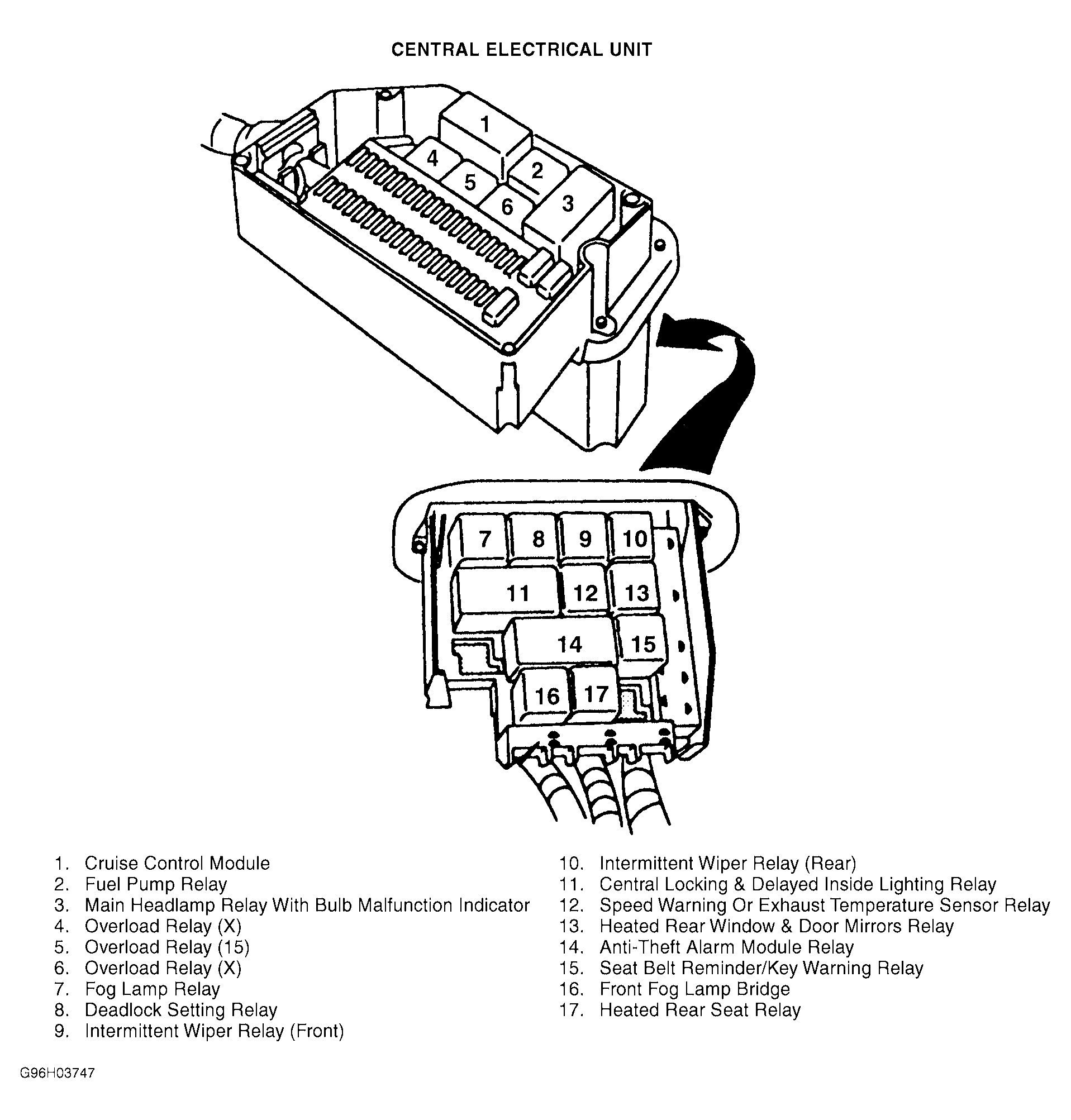

| Cruise Control Module | On electric control unit, position No. 1. See Figure . |
| Direct Ignition System Control Module | On right front inner fender panel, in control module box. See Figure . |
| Electronic Climate Control, Control Unit | Integrated with A/C control panel. |
| Engine Control Module | On right front inner fender panel, in control module box. See Figure . |
| Ignition Discharge Module/Ignition Coil | Left side of engine compartment. See Figure . |
| Seat Control Modules | Under driver's & passenger's seat. |
| SRS Sensor Unit | Under floor console behind shift lever. |
| Sunroof Control Module | Behind interior roof lamp assembly. |
| Transmission Control Module | On right front inner fender panel, in control module box. See Figure . |
