Control Units

CONTROL UNITS LOCATION

Component Location
ABS Control Unit Under left side of dash, above hood release handle.
A/T Control Unit Behind center of dash, right of steering column.
Electronic Climate Control (ECC) Control Unit Behind right kick panel.
Engine Control Unit (Motronic) Behind left side of dash.
Heated Seat Control Units (2) Under driver's and passenger's seats.

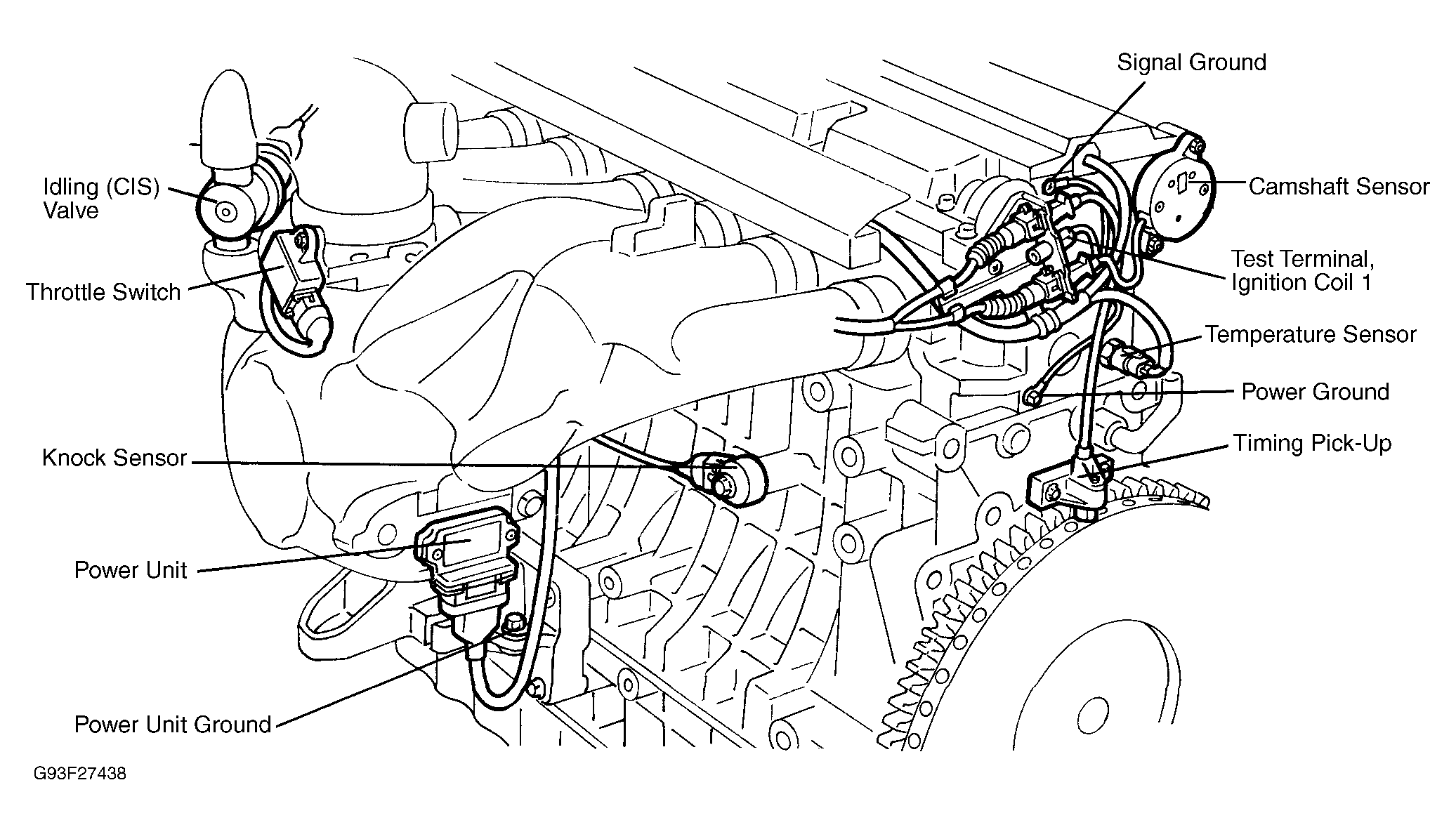

Motronic Power Stage Units I & II Left side of engine, under intake manifold. See Figure .
Power Memory Seat Control Unit Under driver's seat.
Power Unit On side of intake manifold, near TPS. See Figure .
