Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Unit | Behind glove compartment, on right side of dash. |
| Cruise Control Unit | At base of steering column. |

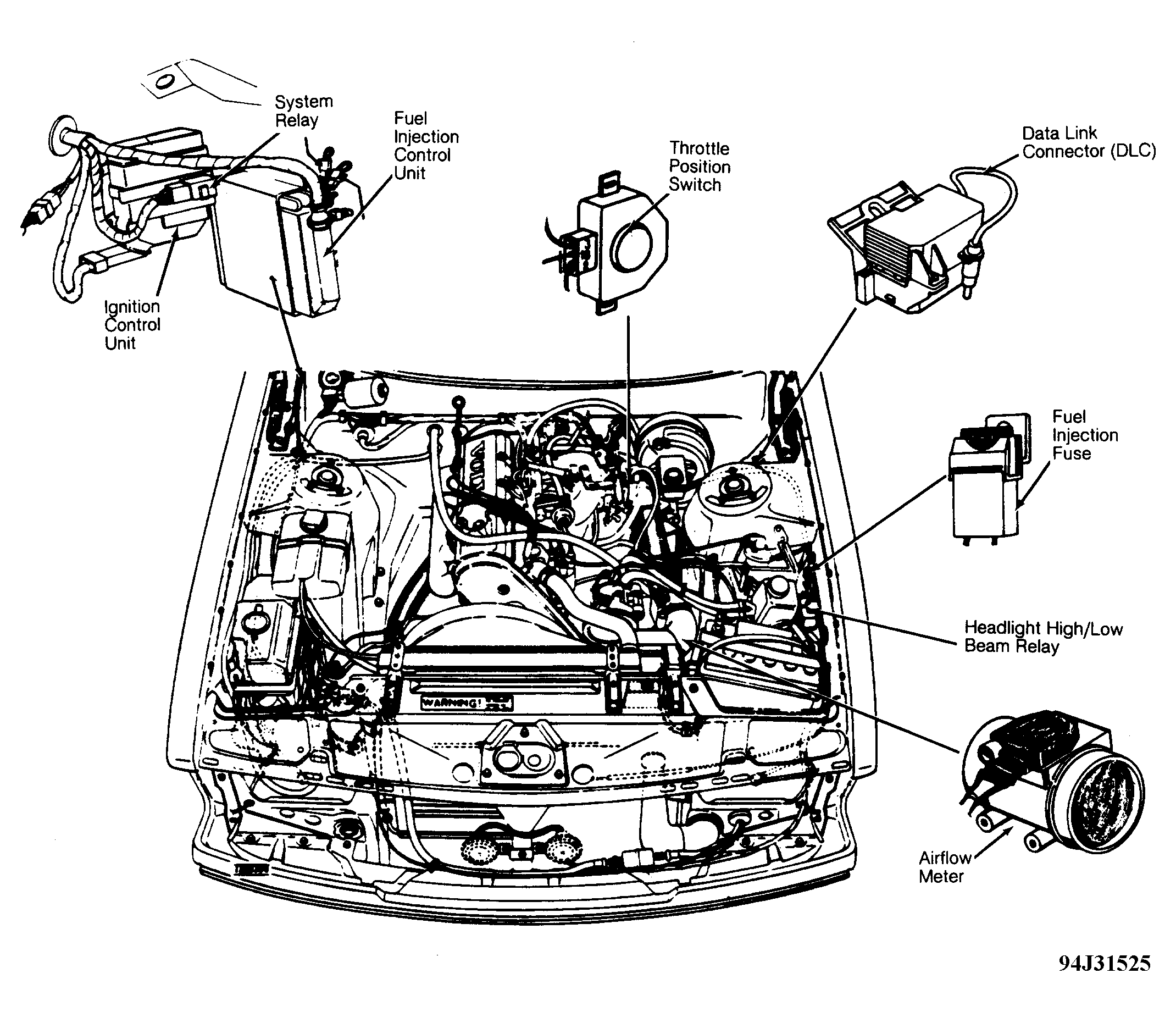

| Fuel Injection (LH-Jetronic) Control Unit | Under right side of dash, above right kick panel. See Figure . |
| Ignition Control Unit | Under right side of dash, above right kick panel. See Figure . |

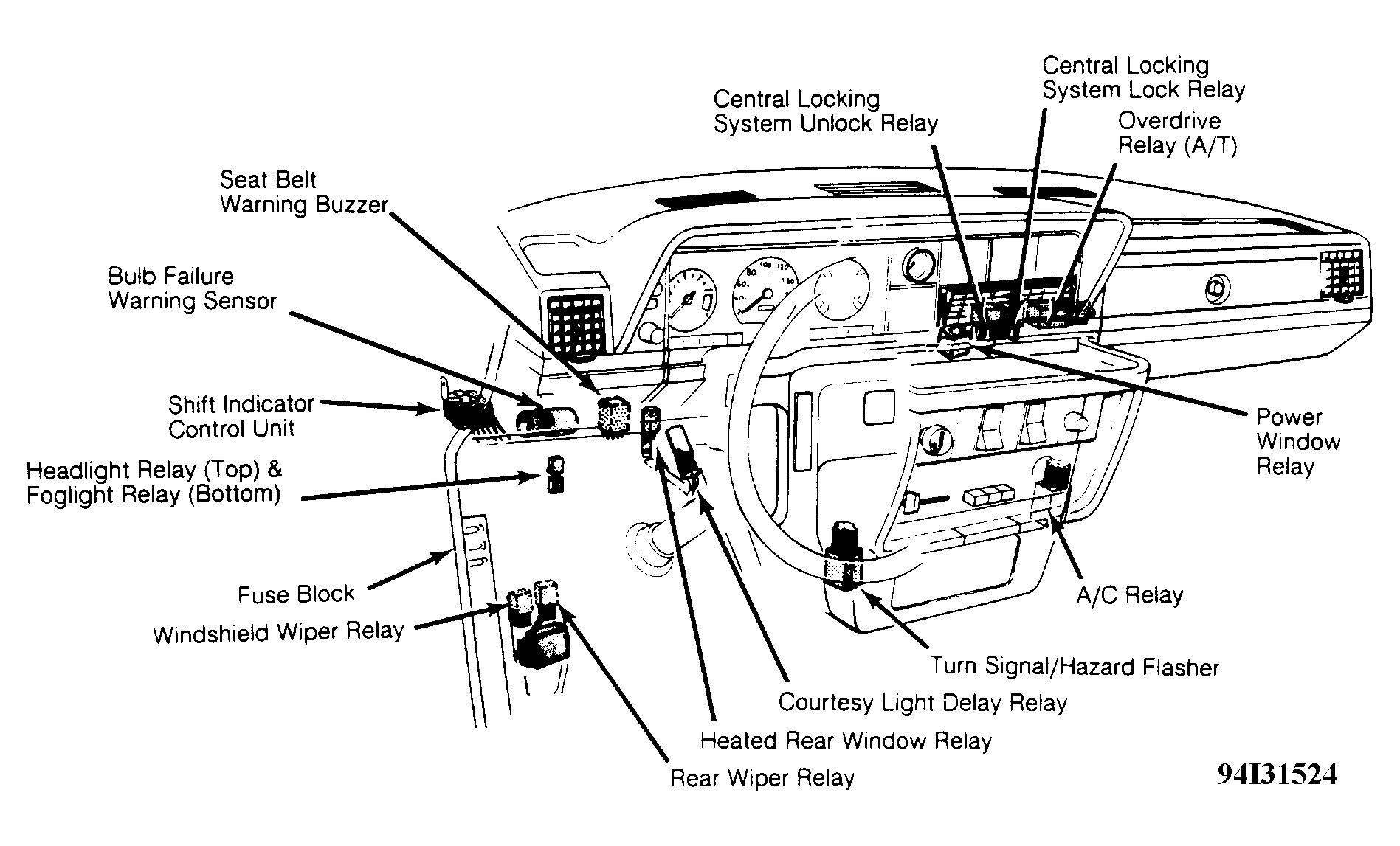

| Shift Indicator Control Unit | Under left side of dash, above fuse block. See Figure . |
