Wiring Diagrams

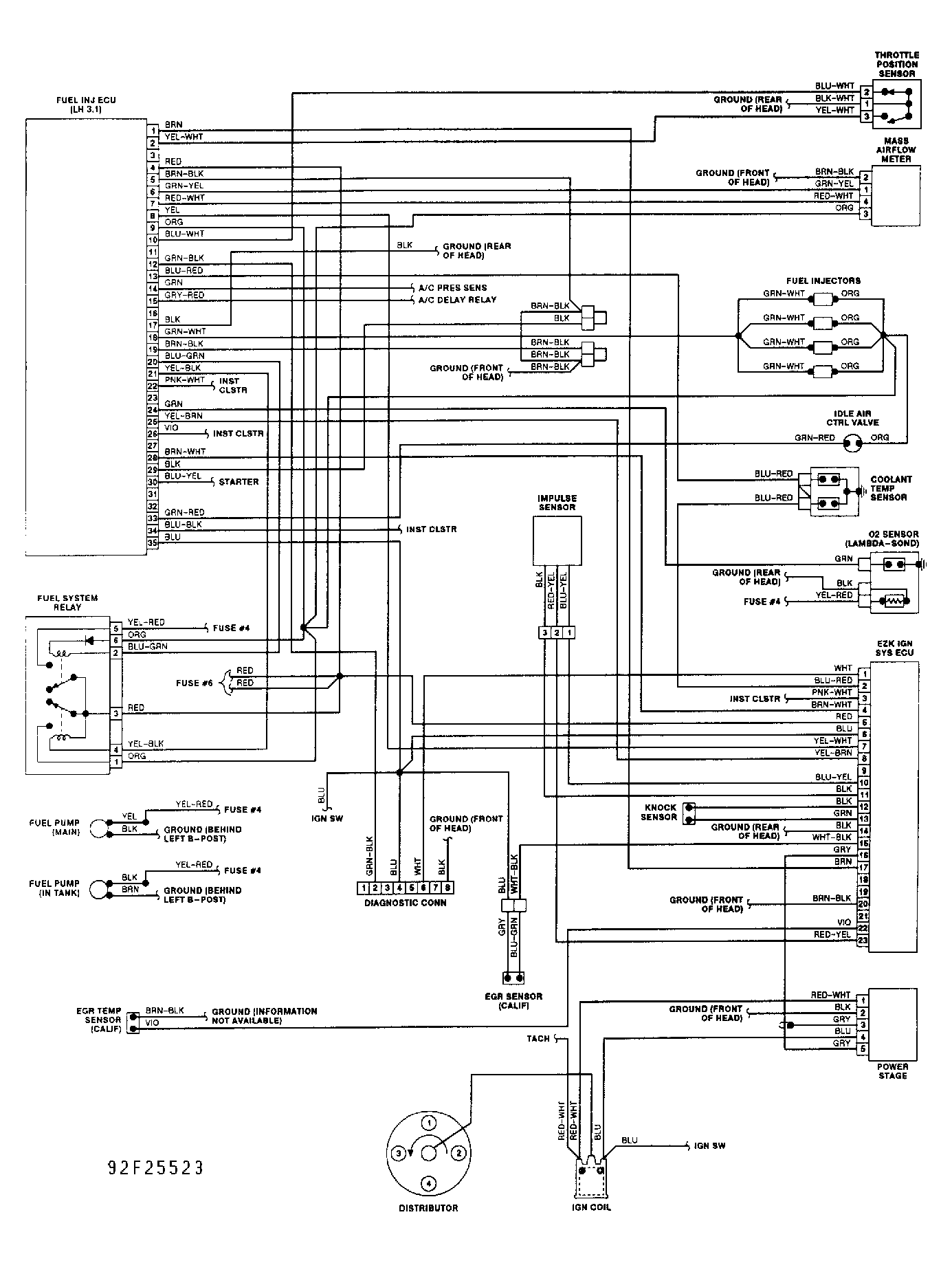

Fig 1: Wiring Diagram (240 2.3L LH Jetronic 2.4)

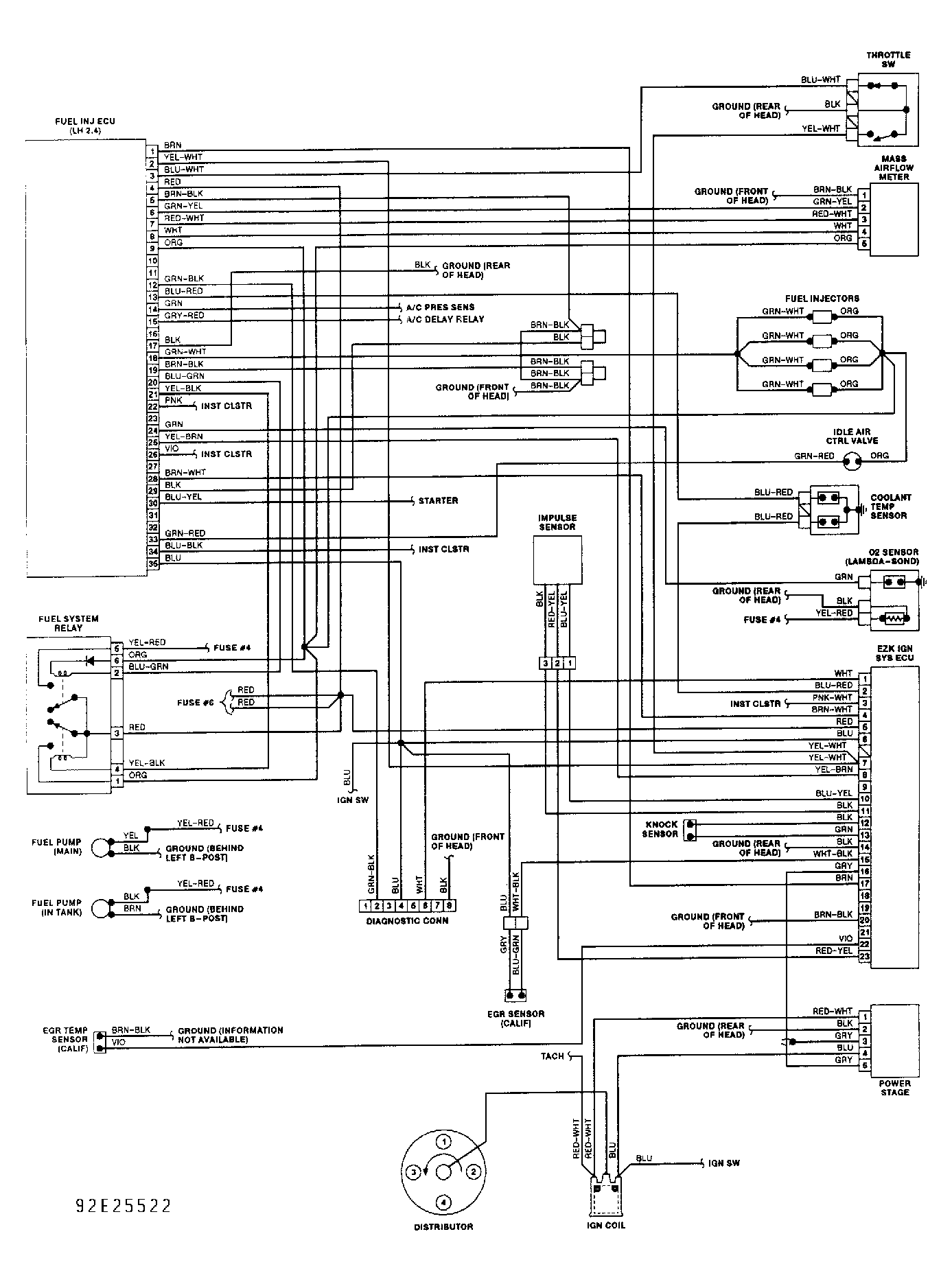

Fig 2: Wiring Diagram (240 2.3L LH Jetronic 3.1)

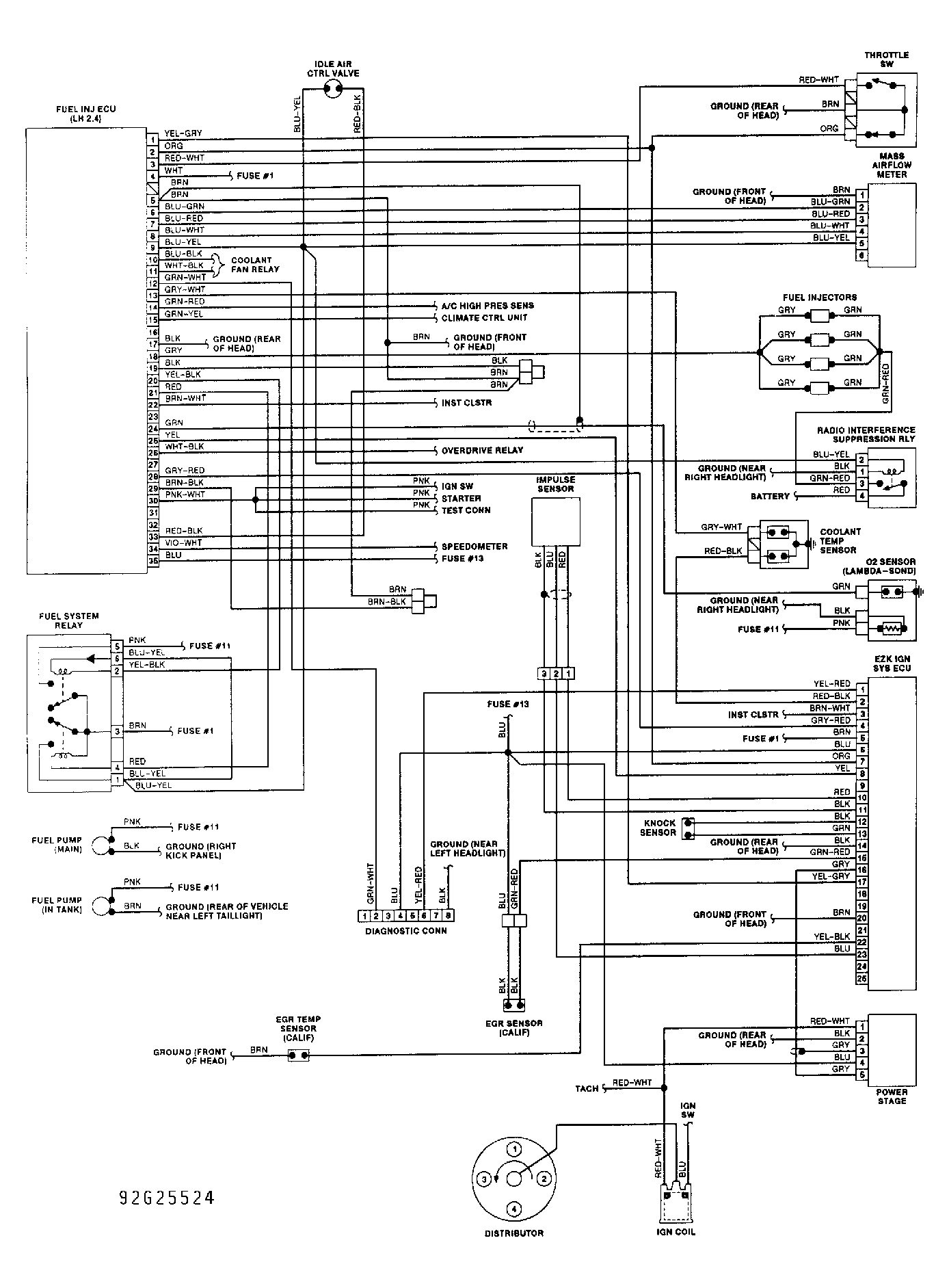

Fig 3: Wiring Diagram (740 2.3L & 940 2.3L - LH Jetronic 2.4)

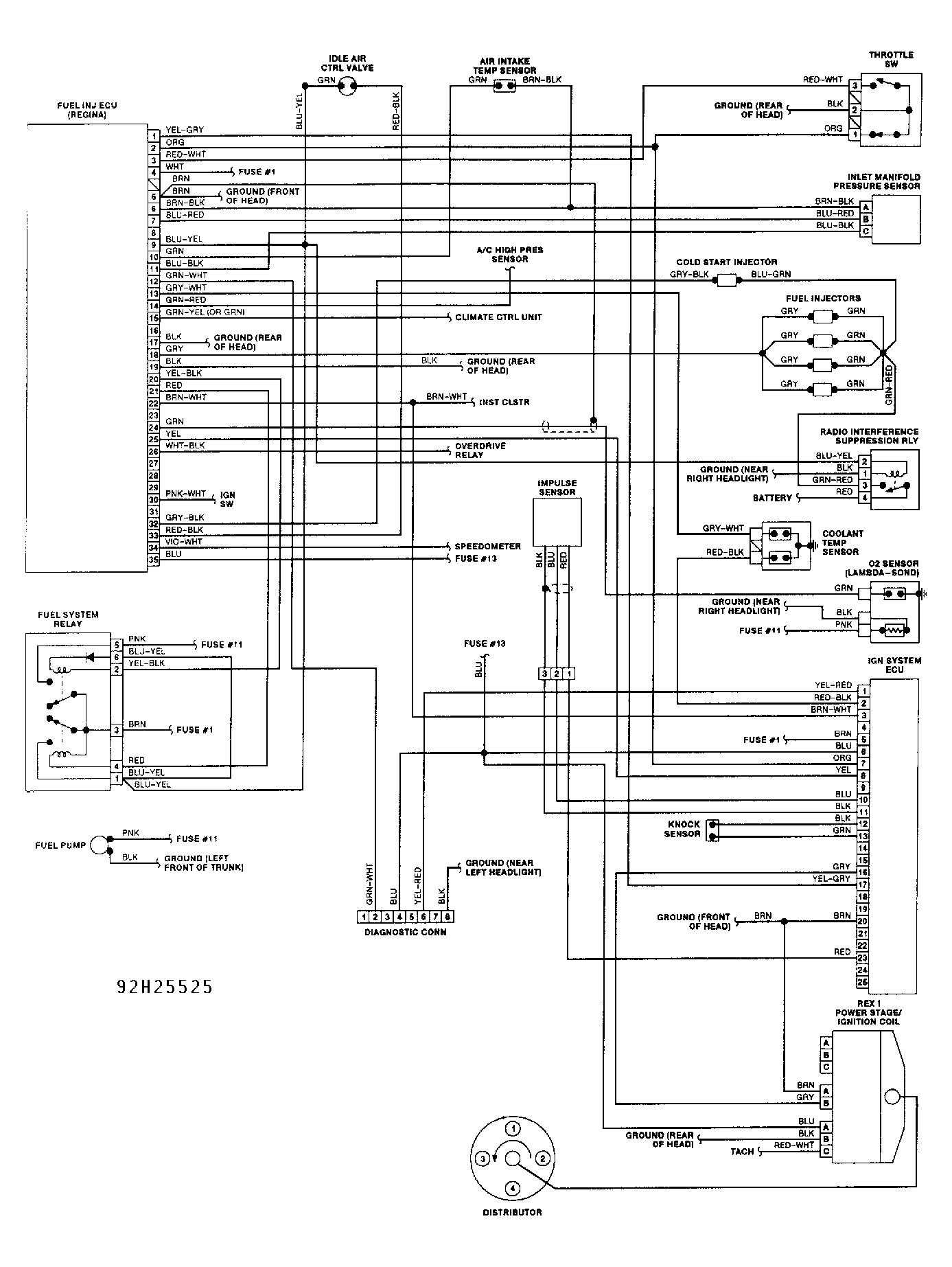

Fig 4: Wiring Diagram (740 2.3L & 940 2.3L - Regina/Rex I)

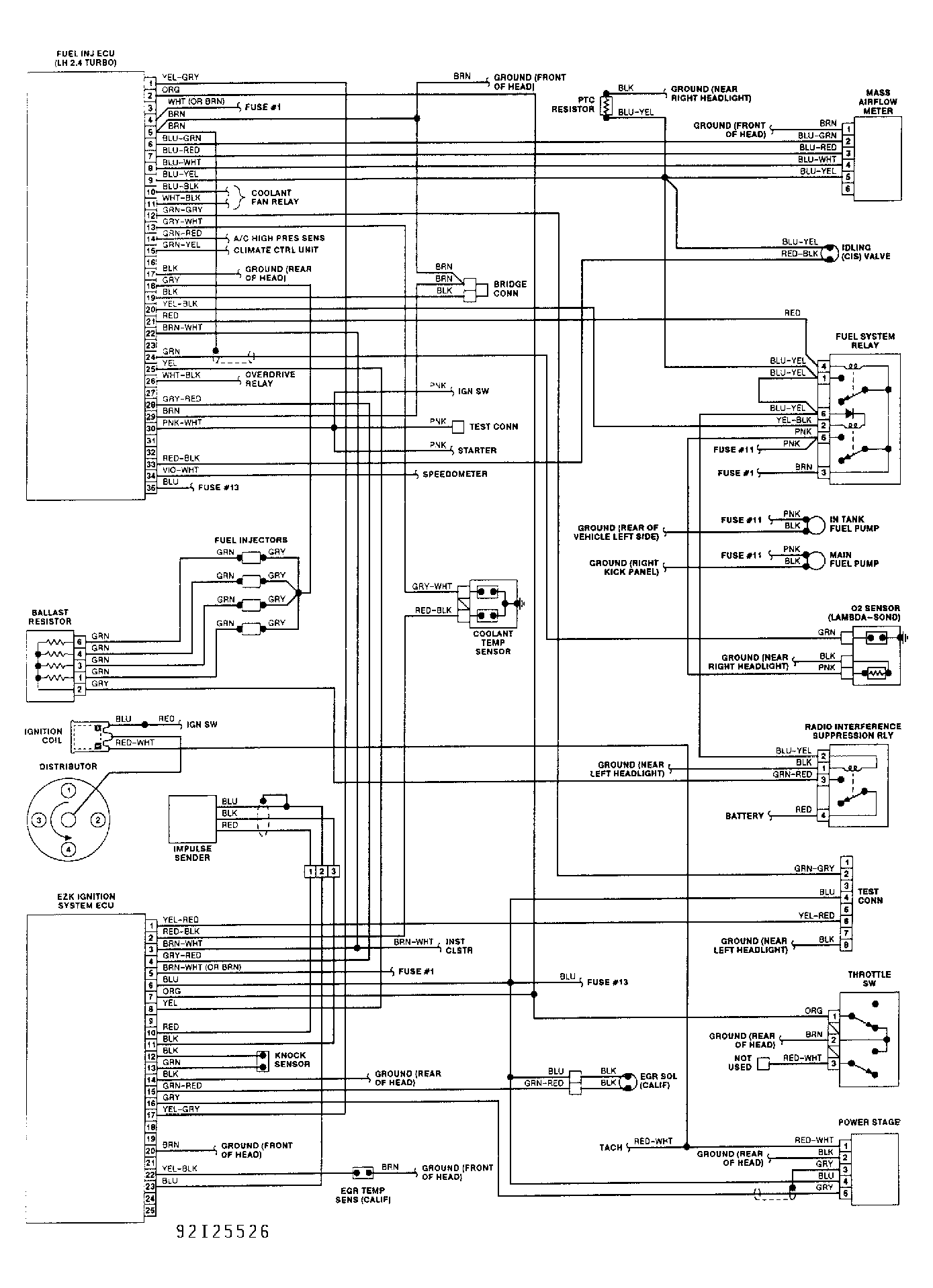

Fig 5: Wiring Diagram (740 2.3L & 940 2.3L - Turbo)

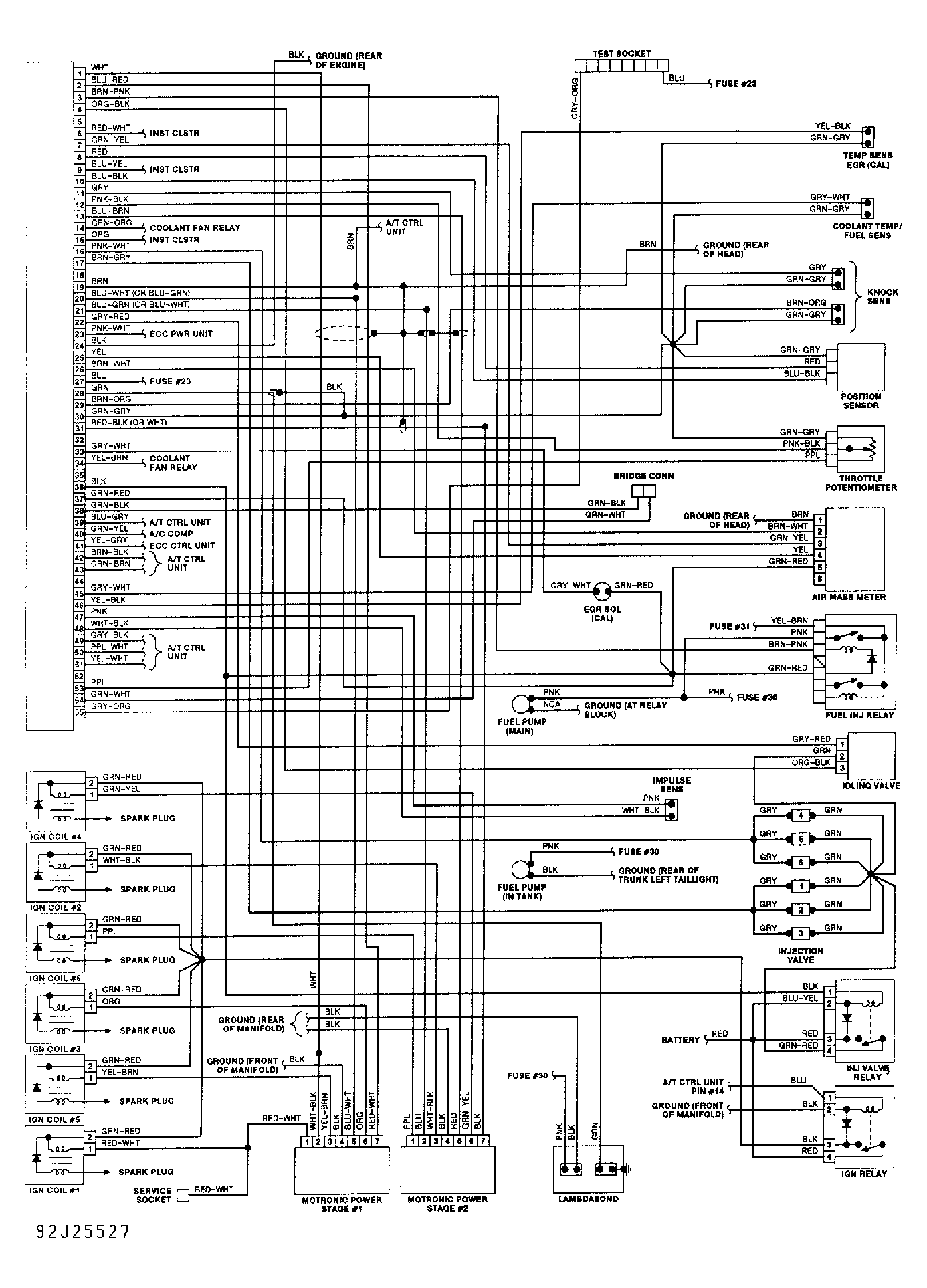

Fig 6: Wiring Diagram (960 3.0L)
