Volvo
>>
1990
>>
780 Turbo, AW71
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Windows
>>
Removal & Installation
>>
Window Lift Mechanism
>>
Rear Doors
Rear Doors

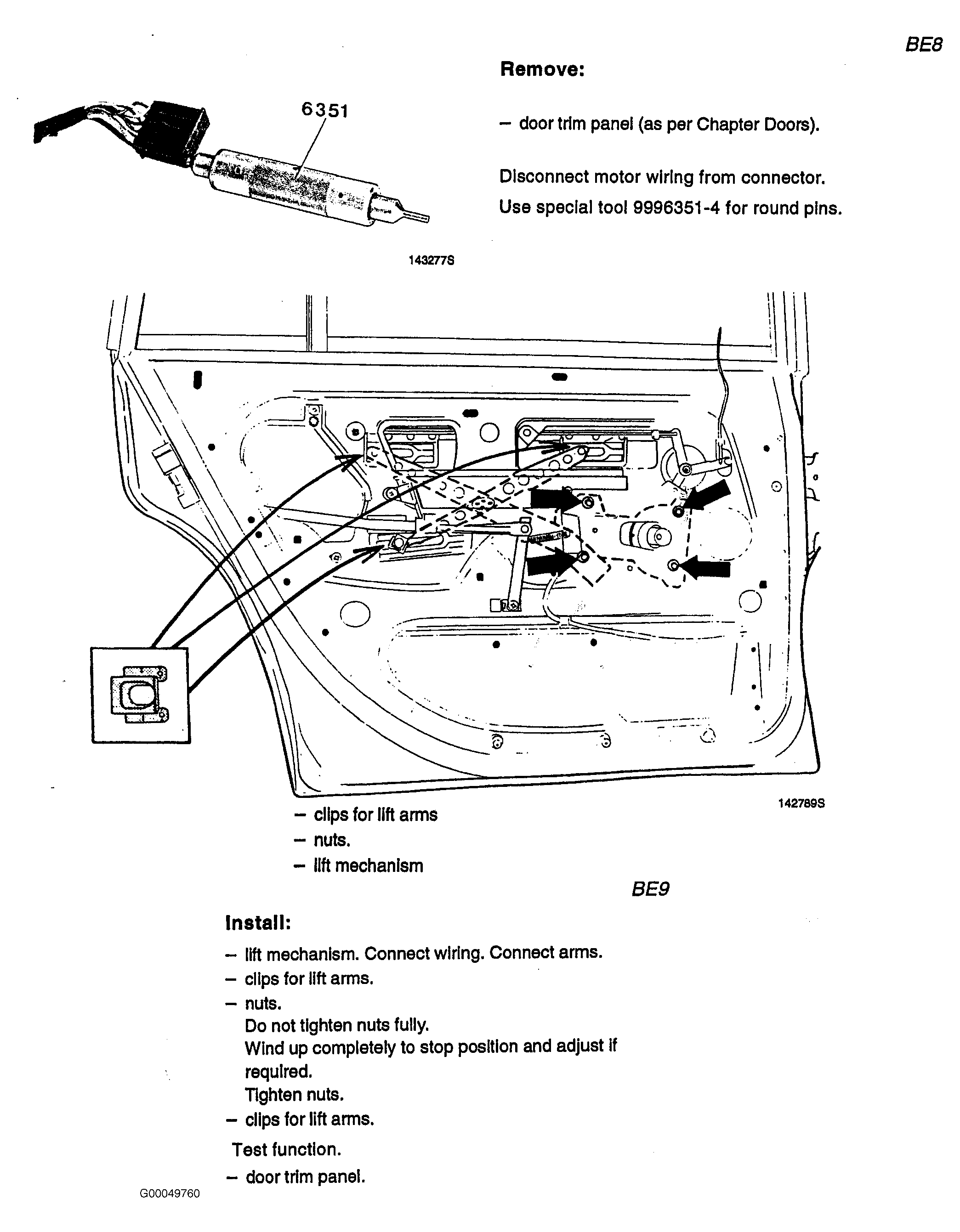

Fig 1: Rear Door Removal & Installation
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
