Cleaning & Inspection: Notes

Replace all seals except 4 Teflon rings on spool valve. If pinion or spool valve is damaged, replace entire steering gear. Clean and inspect rubber boots and replace if necessary.

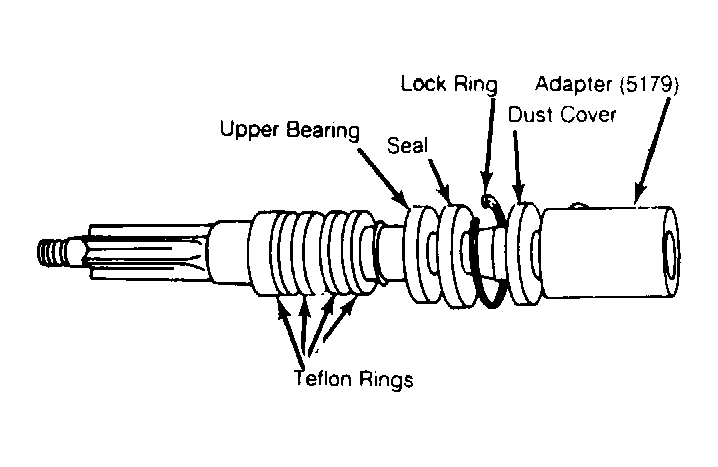

Fig 1: Cam Gear Spool Valve Assembly (740 & 760 Series)
G59097
