Test Charts (Fuel System)
Test Charts (Fuel System)

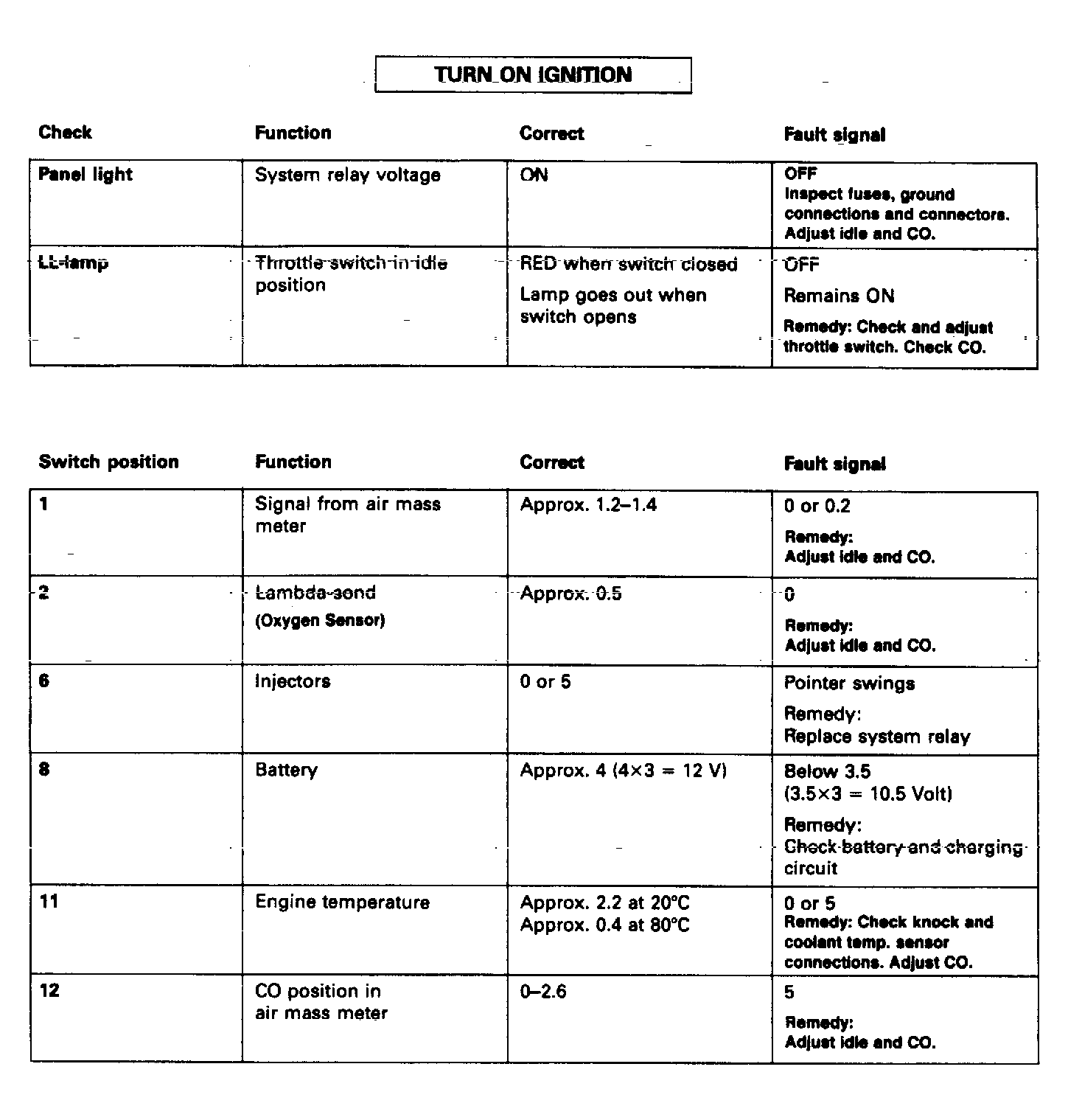

Fig 1: Fuel System Function Test
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 2: Engine Start/No Start Flow Chart (1 of 2)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 3: Engine Start/No Start Flow Chart (2 of 2)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
