Home >> Volvo >> 1987 >> 780 AW71 >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Wiring Diagrams

Wiring Diagrams

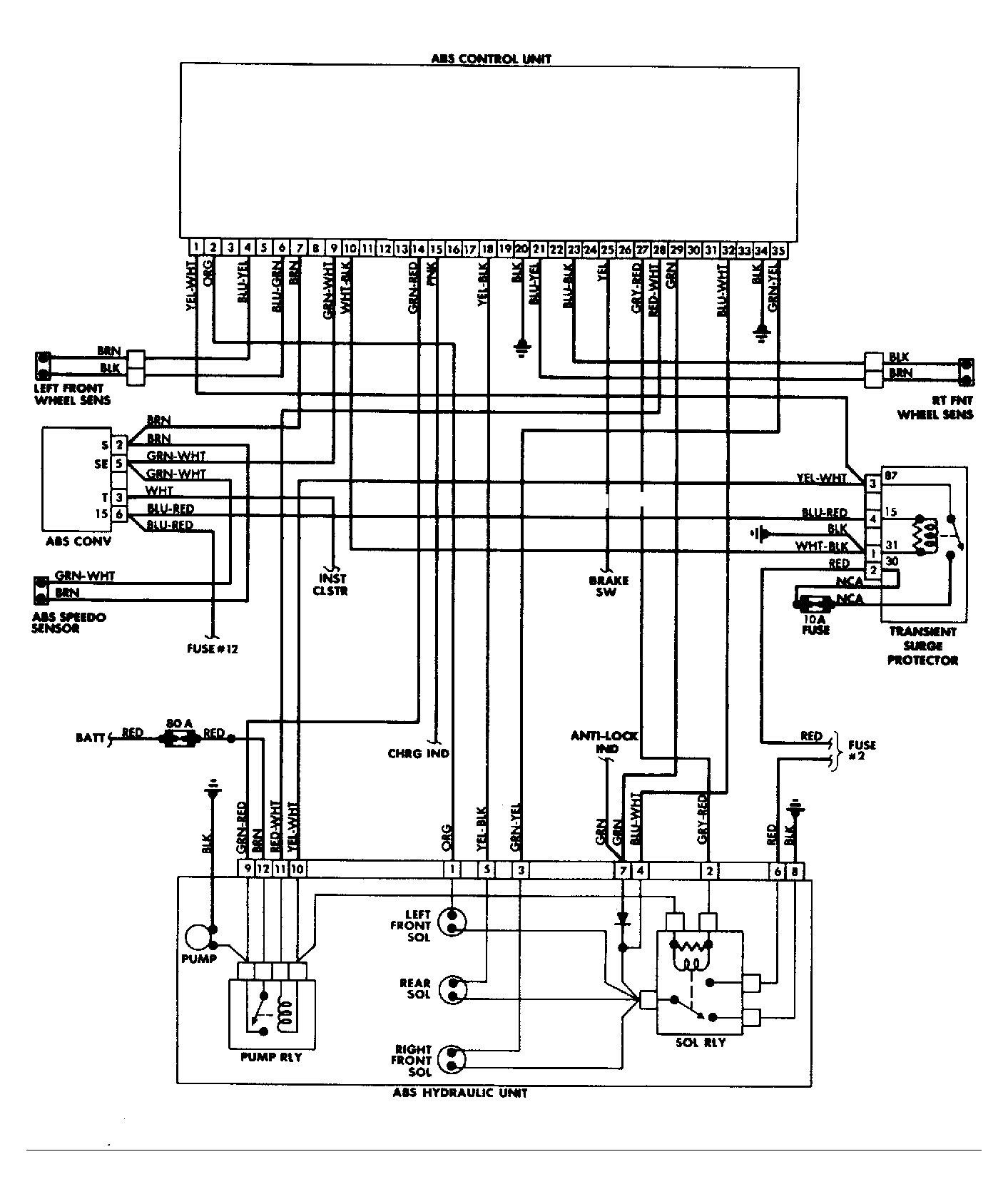

Fig 1: Anti-Lock Brake System Wiring Diagram

G58308
