Wiring Diagrams

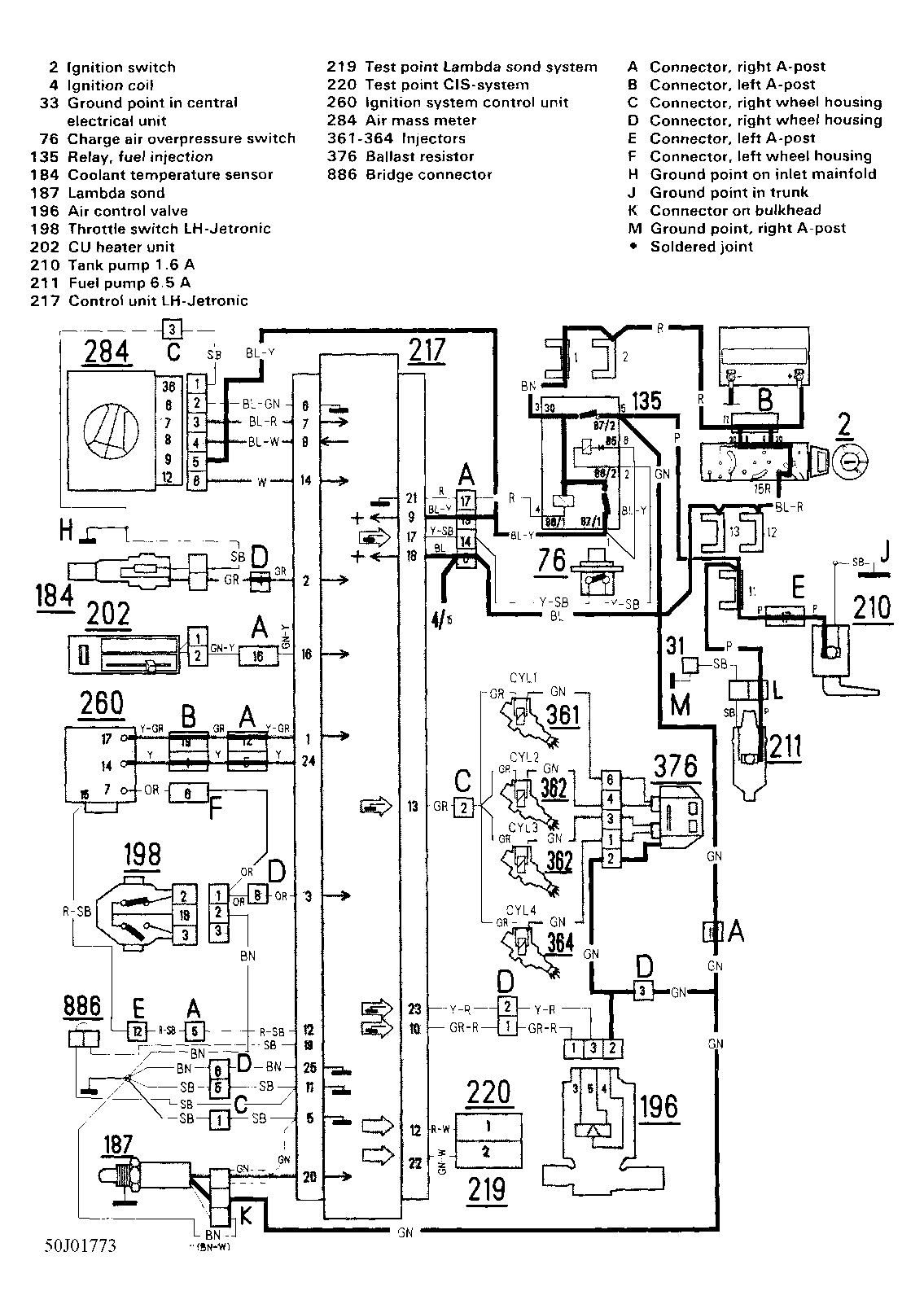

Fig 1: Bosch LH Jetronic Schematic

G50J01773

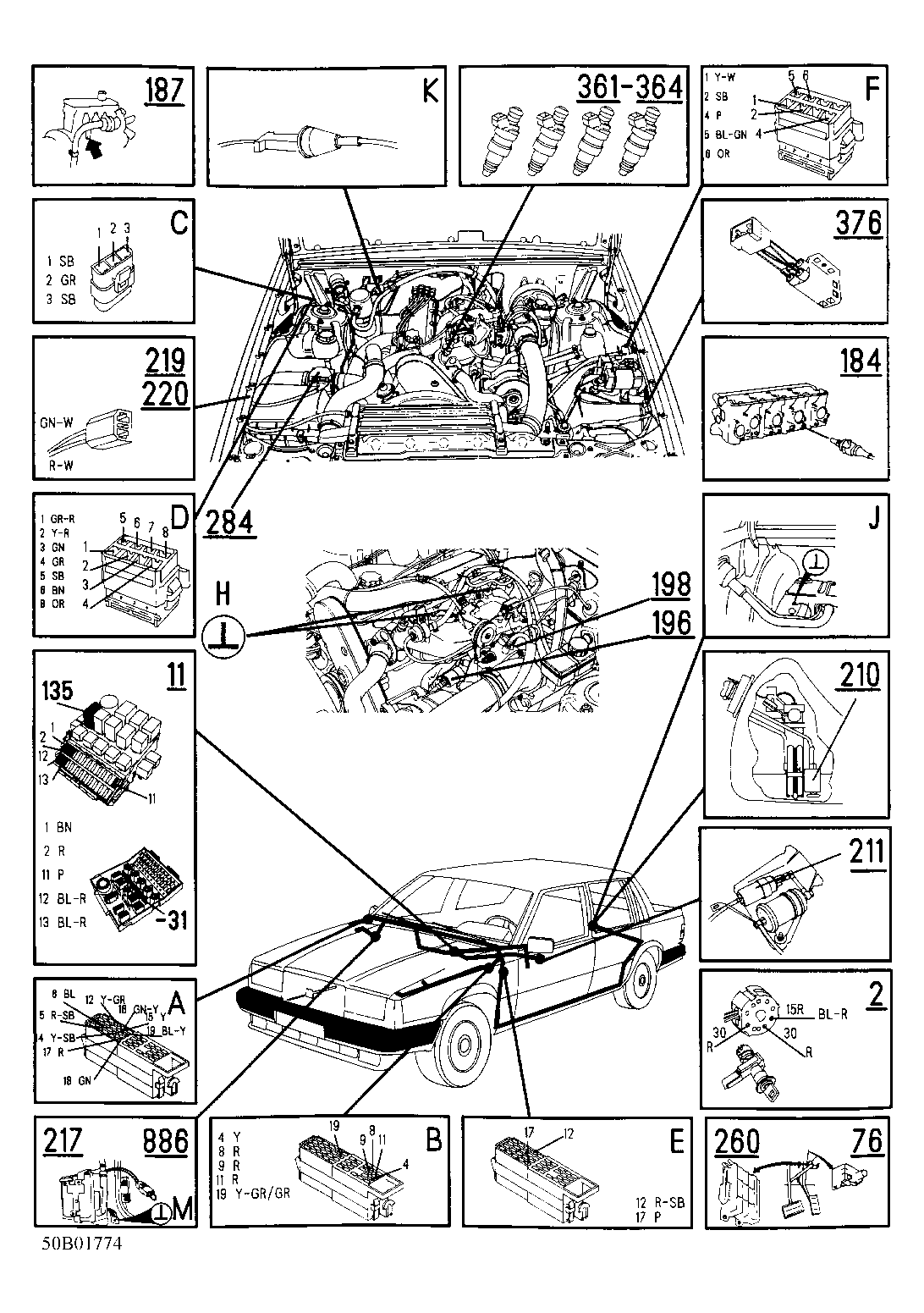

Fig 2: Component Location and Identification

G50B01774
