Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

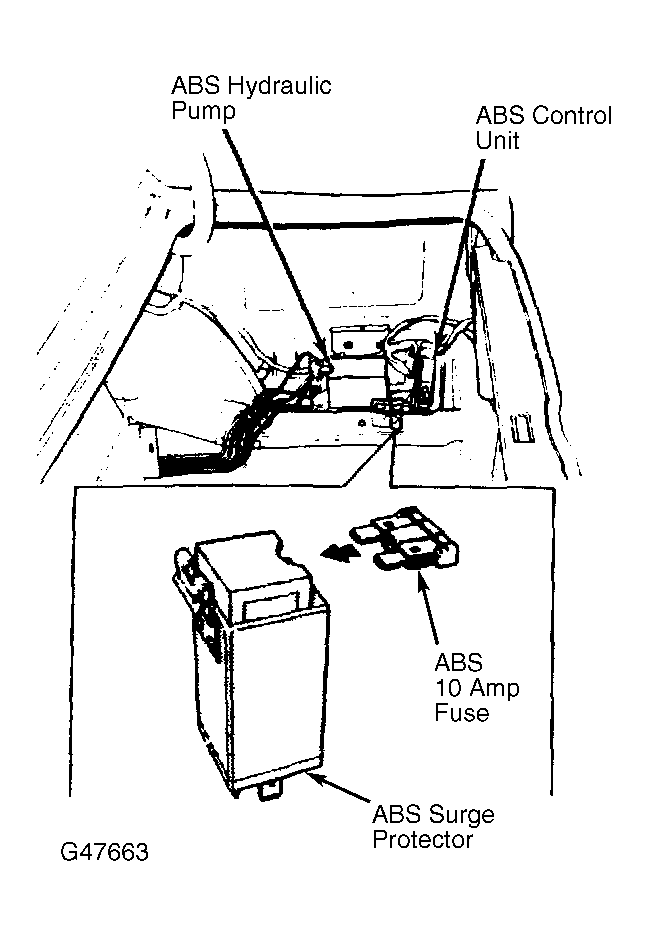

| ABS Control Unit | In floor cavity, on right side of trunk. See Figure . |
| Automatic A/C Programmer | On center of dash, on A/C-heater control panel. |
| Cooling Fan Control Unit | Under left side of dash. |
| Cruise Control Unit | Under left side of dash, on driver's kick panel. |

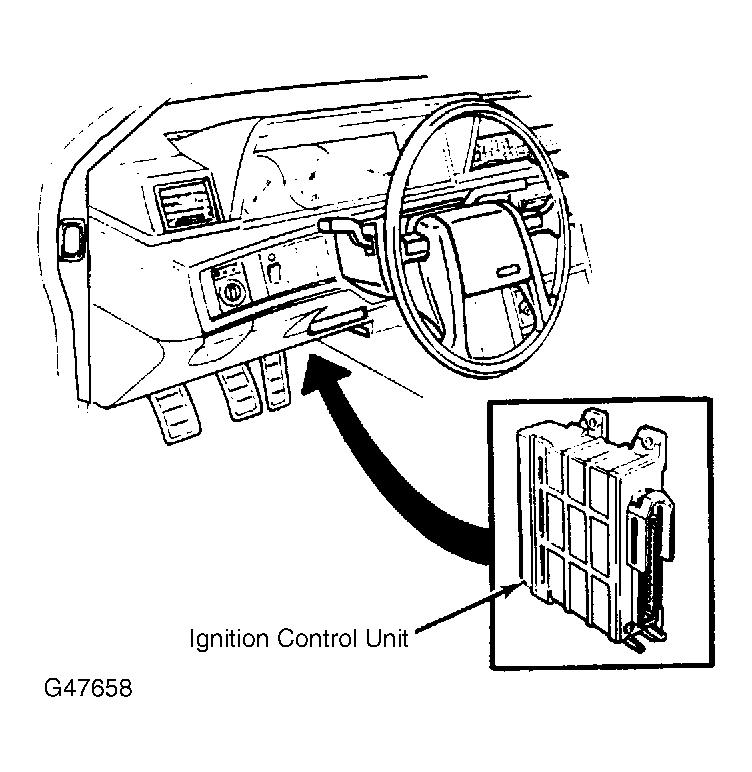

| Ignition Control Unit | Under left side of dash, above steering column. See Figure . |
| Fuel Injection Control Unit | Under right side of dash, on passenger's kick panel. |
| SRS Stand-By Power Unit | In floor cavity, under driver's seat. |
