If A Click Is Heard But Engine Is Rough

Let engine run at idle. Disconnect/connect wire from injectors one at a time. If engine speed drops considerably when wire is disconnected, injector is probably in full working order.

To remove and install injectors, fuel rail & pressure rugulator do it as one unit. See Fig 1

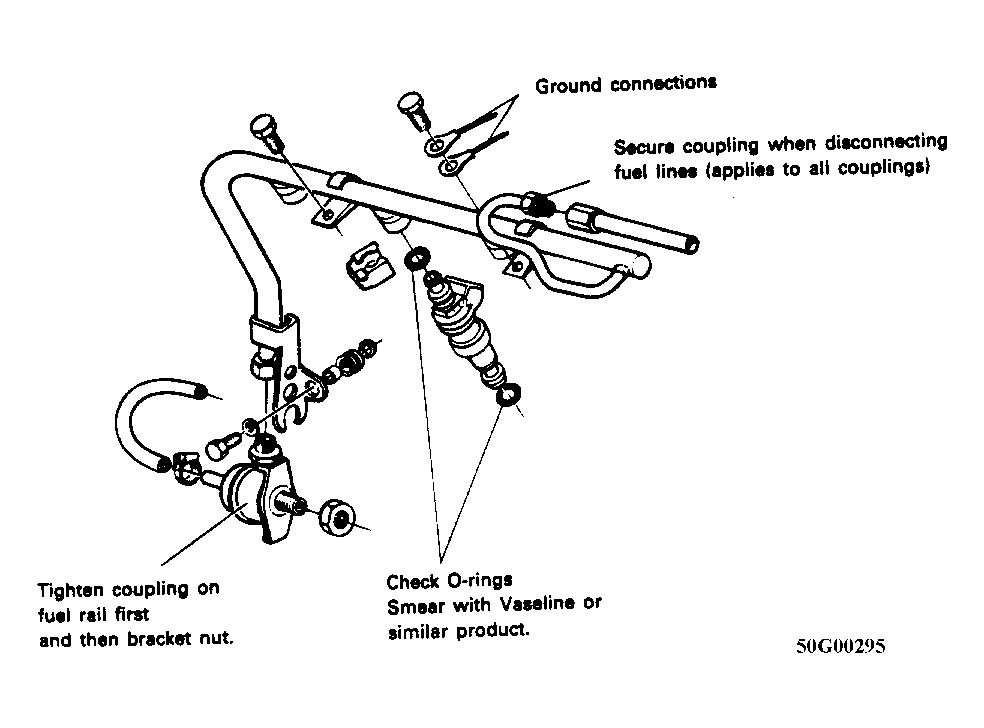

Fig 1: Fuel Rails & Injectors
G50G00295
