Governor Assembly: Disassembly

Remove retaining clip. Remove "E" clip from end of governor shaft. Remove shaft with governor valve, spring and weight from valve bore side of body.

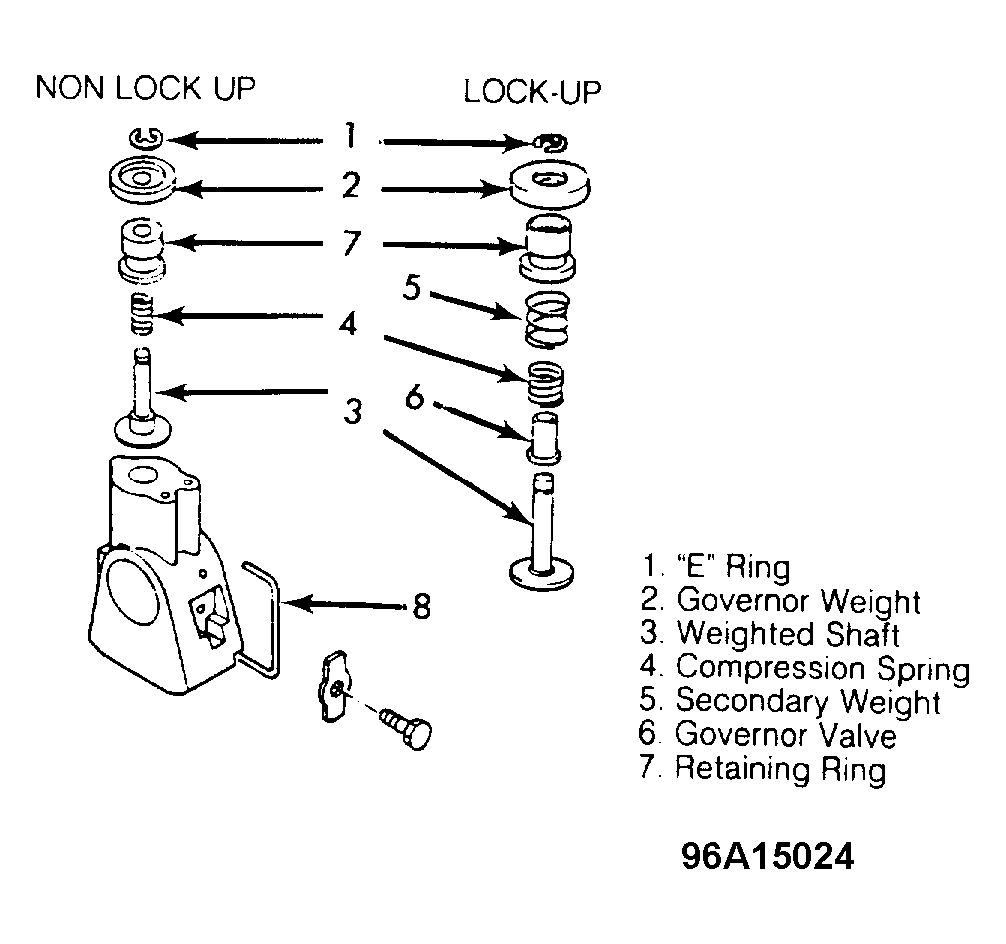

Fig 1: Disassembled View of Governor Assembly (Retaining clip style varies with different models)

Courtesy of ISUZU MOTOR CO.
