VOLVO Guard Anti-Theft System
>>
Description & Operation
>>
Notes
Description & Operation: Notes

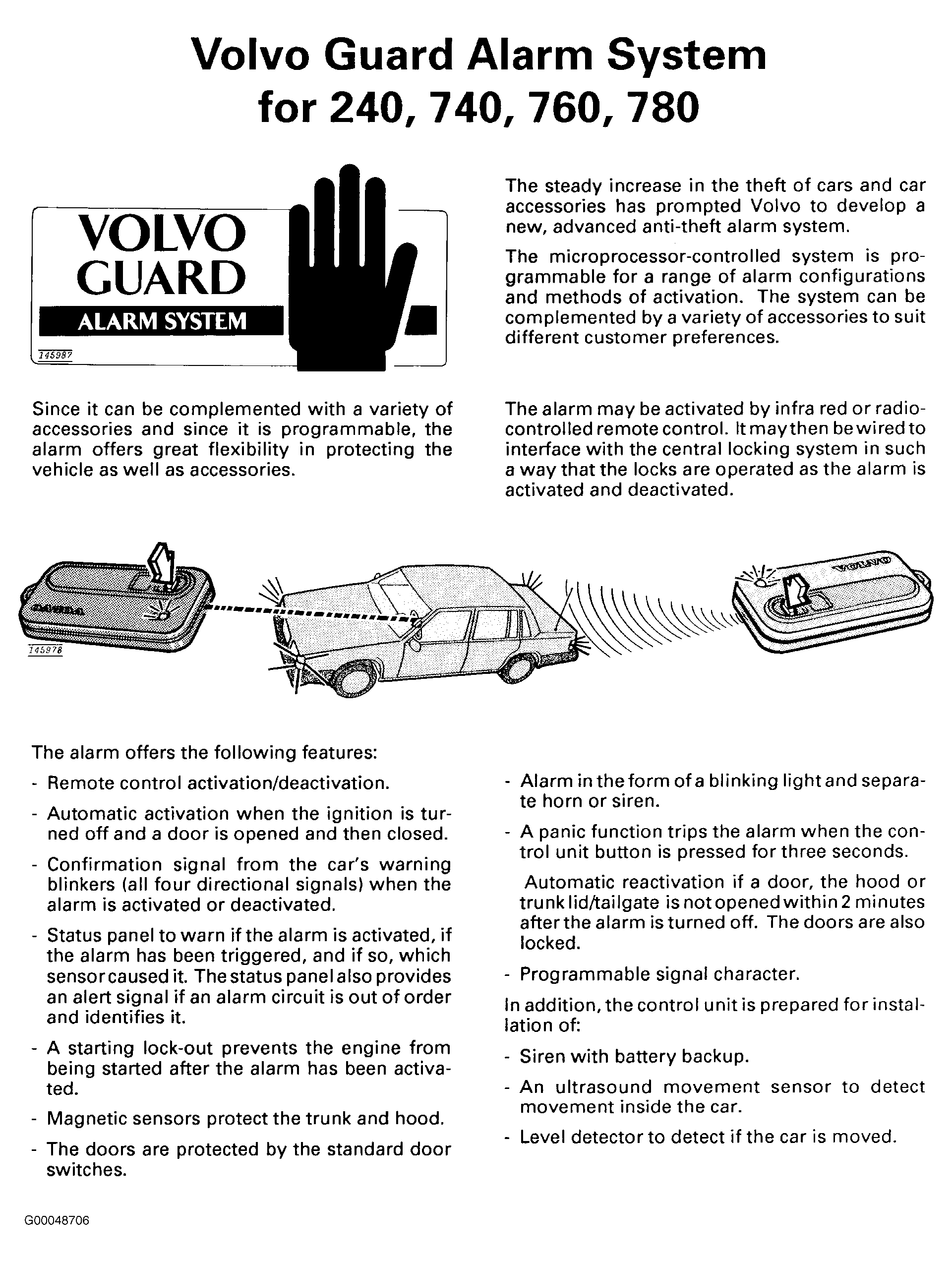

Fig 1: Volvo Guard Alarm System Description (1 Of 2)
Courtesy of VOLVO CARS OF NORTH AMERICA.

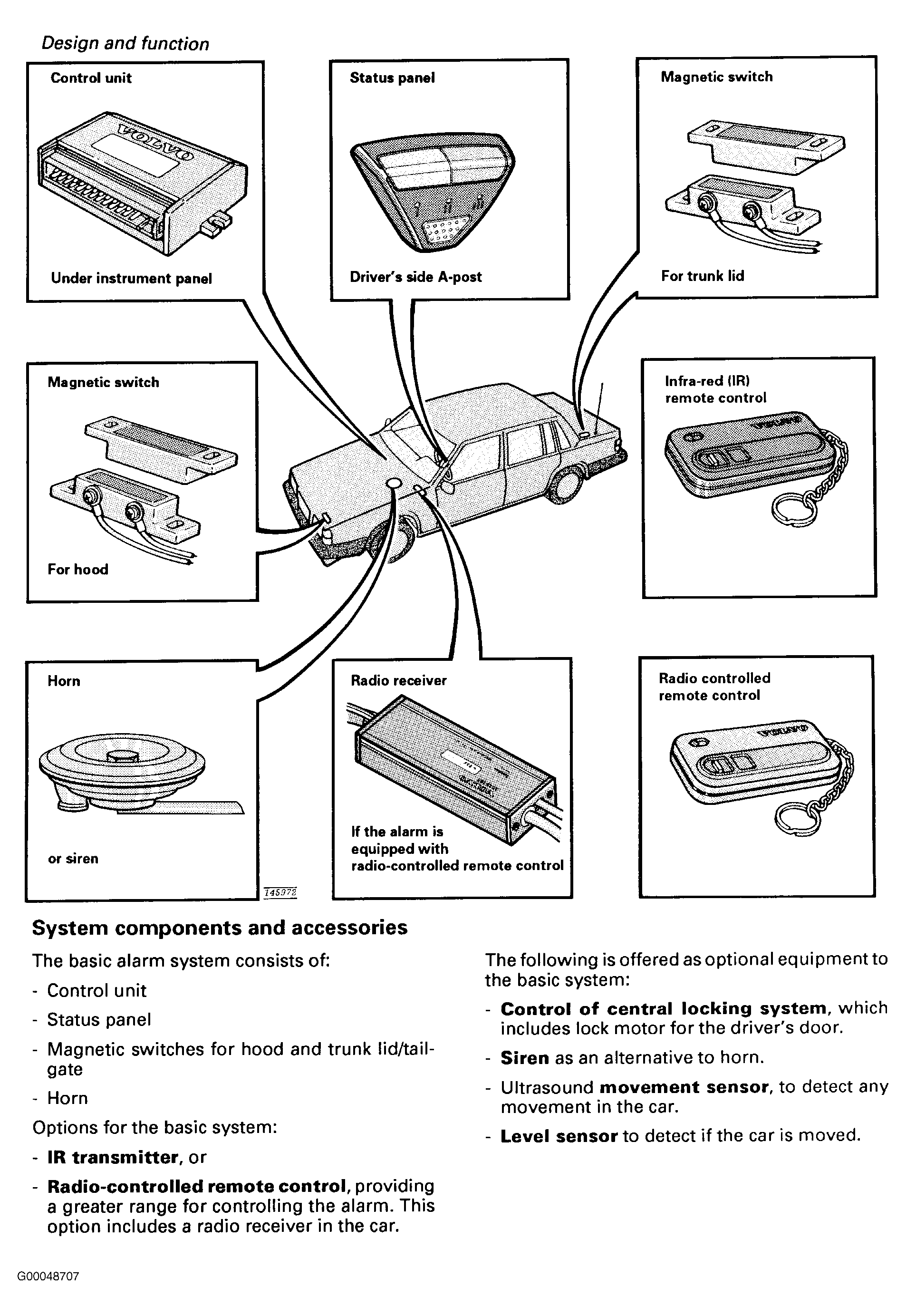

Fig 2: Volvo Guard Alarm System Description (2 Of 2)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
