Torque Specifications

NOTE: For Torque Tightening Specifications, See Fig 1 .

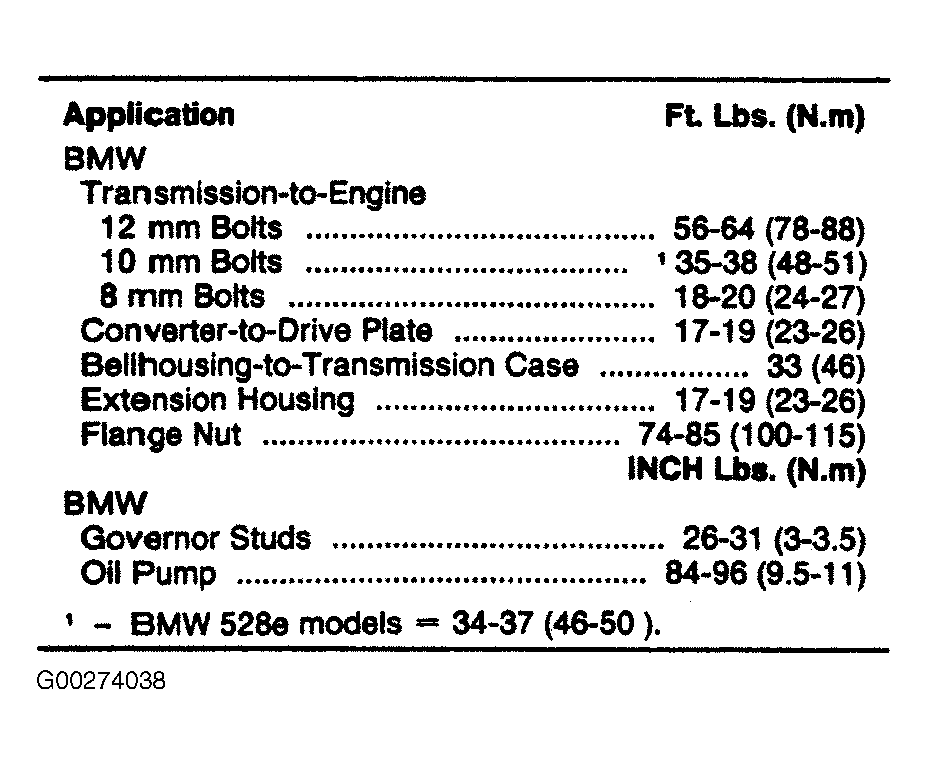

Fig 1: TIGHTENING SPECIFICATIONS

G00274038

Courtesy of BMW OF NORTH AMERICA, INC.
